Course overview
This is a self-paced on-line course designed to equip you an advanced level of knowledge on the physical unit and how it is programmed with the software, SpaceLogic C-Bus Commission and its use with the SpaceLogic C-Bus Network Automation Controller (5500NAC2)
Who this course is for?
Electrical Contractors and Apprentices who are required to learn how to perform fundamental programming of a solution that has C-Bus front end controls with DALI-2 ECG integration, focusing on emergency and exit lighting, scenes, and logic.
Course contents
CBD2AOL e-Learning modules covers how to use the SpaceLogic C-Bus Commission software to:

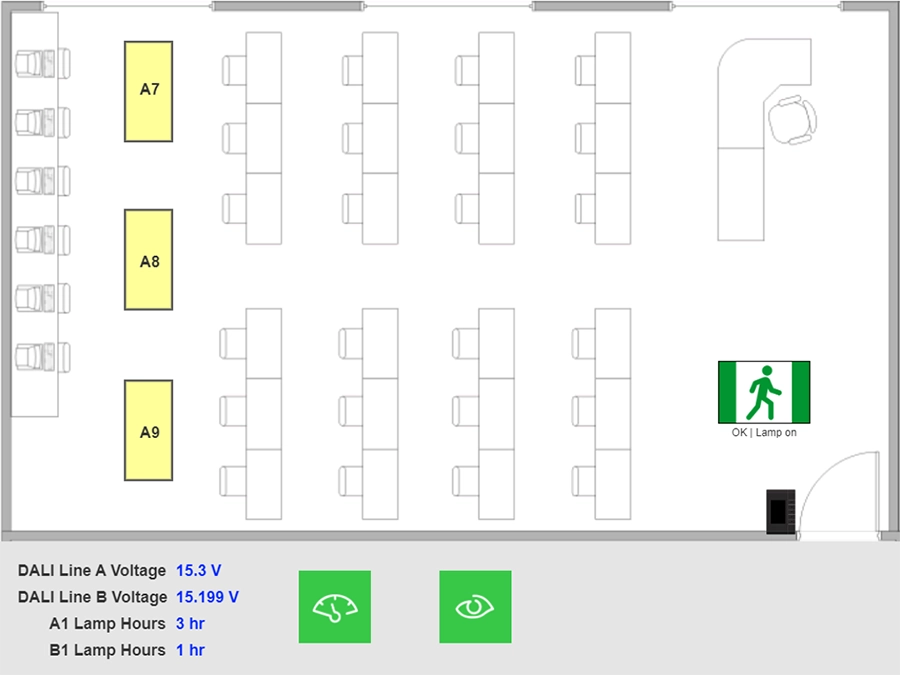

- Deploy a project that has C-Bus front end controls with DALI-2 ECG integration focusing specifically on the Error and Measurement applications and Emergency and Exit Light Testing.
- Synchronising a project with the SpaceLogic C-Bus Network Automation Controller (5500NAC2)
- Programming DALI Scenes & Logic
The SpaceLogic C-Bus DALI-2 Gateway (5502CDGP230) is considered an application controller for DALI-2 lines, it does not support the use of Electronic Control Devices (ECD’s) directly on the DALI line. The DALI-2 Gateway relies on the advanced functionality provided by C-Bus to control the DALI lines.
The examples in this course do not use any Electronic Control Devices (ECD’s), as SpaceLogic C-Bus Commission does not provide any support for DALI-1, DALI-2 or DALIcontrol ECD’s.
Pre-requisites
It is recommended to have completed the SpaceLogic C-Bus DALI-2 Gateway Commissioning Fundamentals online course.
You’ll also need:
- A strong electrical or technical background.
- Standard computer knowledge.
- An internet connection.
Latest version of C-Bus Toolkit and SpaceLogic C-Bus Commission
Registration and pricing
Register online and once processed, you’ll receive an email with details to access the e-Learning module.
- Training Time: Equivalent to 0.5 day of Classroom Training
- Training Structure: Course is designed to be completed in order
- Price: $300 (Inc GST)
Course Software
C-Bus Toolkit software is a powerful utility for configuring and programming C-Bus networks.
It enables installers to synchronise customer site data, define network architecture, program customer solutions, and save and restore sites.
The software also includes a database for creating and storing customer site programming projects.
SpaceLogic C-Bus Commission is a PC accessible configuration software used for commissioning of C-Bus units and compatible DALI-2 ballasts via the SpaceLogic C-Bus DALI-2 Gateway.
