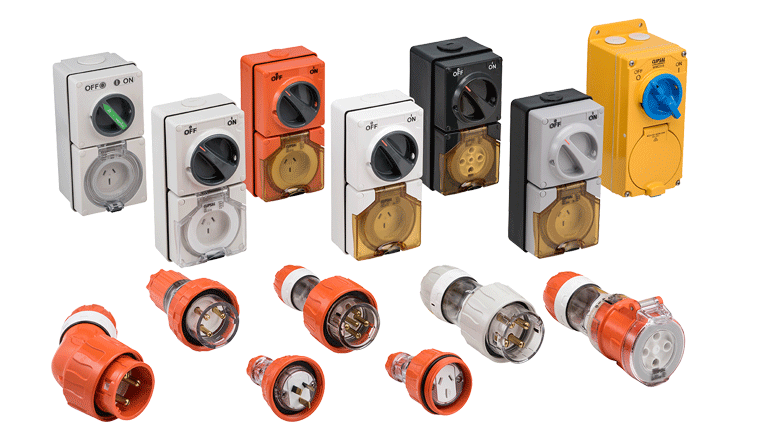

56 Series. Make The Right Choice
Features
- Mounting enclosures range in size from one to sixteen gang for customised assemblies, from a simple switch to a large control panel
- Minimum IP56 rated, with many exceeding this standard to be IP66
- Double padlocking options on switches
- Sockets with safety flaps that automatically lock into place when plugs are removed, preventing dust and water from entering the housing
Ideal for
- General industrial use, neutral chemicals.
- Dust, water & UV resistance, suiting both indoors & outdoors
- Distribution centres/Shopping centres
- Tilt-up buildings
- General manufacturing assembly plants
- Resisting long exposure to UV, suiting both indoors & outdoors
- Areas subjected to low and high temperatures
- Dusty/damp environments

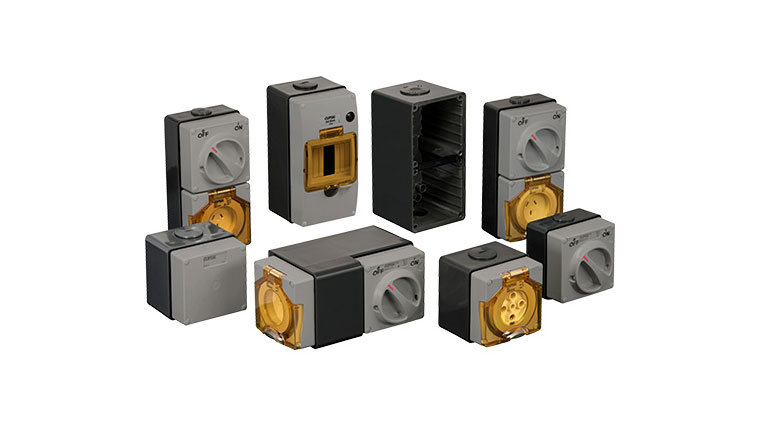

56 Series Chemical Resistant Grey (CG)
The Chemical Resistant Grey range has been specifically designed for indoor food environments where aggressive alkali/caustic cleaners are used, such as dairies, abattoirs and food processing plants.
Features
- Mounting enclosures range in size from one to sixteen gang for customised assemblies, from a simple switch to a large control panel
- Minimum IP56 rated, with many exceeding this standard to be IP66
- Double padlocking options on switches
- Sockets with safety flaps that automatically lock into place when plugs are removed, preventing dust and water from entering the housing
Ideal for
- Dust, water, suiting indoor applications
- Food processing
- Wash-down areas
- Food preparation
- Resisting cooking oils (e.g. Canola)
- Foaming caustic/alkali-based chemicals
56 Series Chemical Resistant
Chemical Resistant orange and white offers resistance to a wide range of chemical types. They are ideal for rigours experienced in butcheries, delicatessens and mechanical or automotive workshops.
56 Series Chemical Resistant Features
- Mounting enclosures range in size from one to sixteen gang for customised assemblies, from a simple switch to a large control panel
- Minimum IP56 rated, with many exceeding this standard to be IP66
- Double padlocking options on switches
- Sockets with safety flaps that automatically lock into place when plugs are removed, preventing dust and water from entering the housing
Ideal for
- Dust, water & UV resistance, suiting both indoors & outdoors
- Automotive and mechanical environments
- Wineries and citrus processing plants
- Coal wash down plants
- Water treatment facilities
- Workshops & maintenance areas
- Environments where high-visibility is important (RO)
- Environments where aesthetics are important (RW)
- Resistant to acid-based detergents & chemicals
Easy56
Easy56 Industrial Switchgear by Schneider Electric is reliable and easy on your wallet.
66 Series. Heavy Duty Industrial Plugs and Sockets
Features
- Switches with double-padlocking facility to ensure extra security
- Grey colouring to blend into industrial environments
- Enclosures made from PVC to ensure they can be solvent bonded to standard electrical PVC conduit accessories
Ideal for
- Dust, water & UV resistance, suiting both indoors & outdoors
- Distribution centres/Shopping centres
- Tilt-up buildings
- General manufacturing assembly plants
WilcoROWCO Metal Clad
Clipsal WilcoROWCO™ Metal Clad is robust electrical switchgear that can take a beating, and withstand extreme temperatures, without compromising performance or safety.
The range is available both in assembled and in modular design.
Features
- Diecast aluminium provides additional strength against corrosion and accidental twisting of back boxes
- IP66 rating: dust-resistant, hose-proof and UV resistant
- Padlock facility on switches and DIN rail flaps for safe operation and maintenance
- External and internal mounting options
- Multiple cable entries for ease of installation
- Optional interlock facility on one-piece cover combination switched sockets (prevents accidental or unsafe removal or insertion of plugs when switched ON)
- Modular only: Provides flexibility and choice with ability to mix 'n' match covers, sockets and switches
Ideal for
- Resistance to high impact and harsh environments
- Dust, water & UV resistance, suiting both indoors & outdoors
- Mining and quarries
- Freight & transportation applications
- Foundries & high temperature materials processing
- Public areas subjected to vandalism
Features:
- Suitable for 50A and 63A applications, with 4-, 5- or 7-pin
- IP66 protection in accordance with AS 60529 for the Combination Switched Socket Outlet and also when engaged with a plug
- Separate back box with rear wiring facility for easy installation of large diameter cables
- Large switch knob and socket outlet flap for easy operation even with gloved hands
- Transparent plug for simplified inspection of cable connections
- Socket outlet flap includes a heavy spring assembly to ensure IP66 integrity
- Interlock facility on combination switched sockets prevents accidental or unsafe removal or insertion of plugs when switched ON
Ideal for:
- Heavy-duty appliances, such as welders, pumps and mobile conveyors
- Indoor and Outdoors
- Resisting Dust, water and direct or long exposure to UV (sunlight)
- Resisting general chemicals e.g. detergents or mild acids
Features:
- Maximum strength die-cast aluminium and cast iron with full metal options
- Switch interlocking facilities to ensure the cover cannot be removed when the switch is in the ON position
- Dust resistance, hose proof and UV resistance
- Padlock facility so that switches can be locked in both ON or OFF positions
- Plugs and Reverse Connectors are also available in Screw Lock Ring and/or Hydrant Lock Ring options
- Non coloured to blend in with industrial environment
Ideal for:
- Heavy-duty industrial environments
- Applications requiring mechanical strength & resistance to heavy impact, vandalism, etc
- Outdoor applications

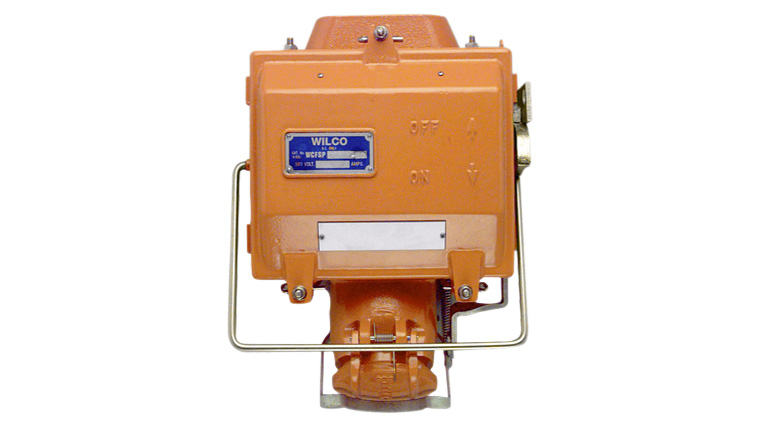

Features:
- 3mm sheet steel casing with cast aluminium cover to provide maximum strength and lightweight
- Choice of Grey Epoxy Enamel or Orange Corrosion Resistant finishes, ideal for salt air environments
- Reverse entry busbar box available to protect against rain or run power supplies from below
- Quick make-break contacts ensuring long life and reliable operation
- Design to accept all popular HRC Fuse Cartridges with bolted tag facilities to BS88. The switch breaks the circuit at both ends of the HRC fuse cartridges providing complete
- isolation and safety during fuse replacement
- Easy to grip stirrup type handle to allow easy operation of switch
- Switch interlocking facilities to ensure the cover cannot be removed when the switch is in the ON position
Ideal for:
- Heavy-duty industrial environments up to 200A
- Outdoor applications
- Where additional safety is required via localised HRC fuse protection
- Utilities such as electrical supply power stations
Features
- Up to 12 independent switching positions and 12 switching elements
- Can be made with 30*, 45*, 60* and 90* switching angles
- Control and starting of three-phase and single-phase motors
- Compatible with Clipsal 56 Series industrial switchgear and motor starters
- High making and breaking capabilities
- Capable of being used as a load break switch
Ideal for
- Use in electrical switchboards, air conditioning systems and material handling for basic industry
- Either base or panel/door mount applications
- Mounting in Schneider's Universal Enclosure (Spacial and Thalassa) ranges

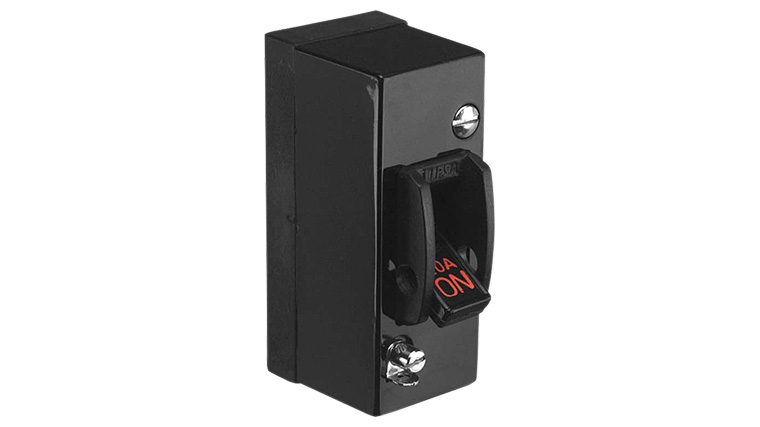

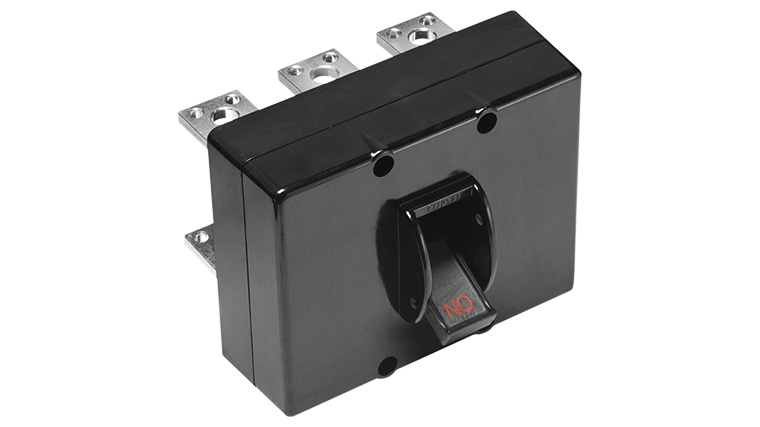

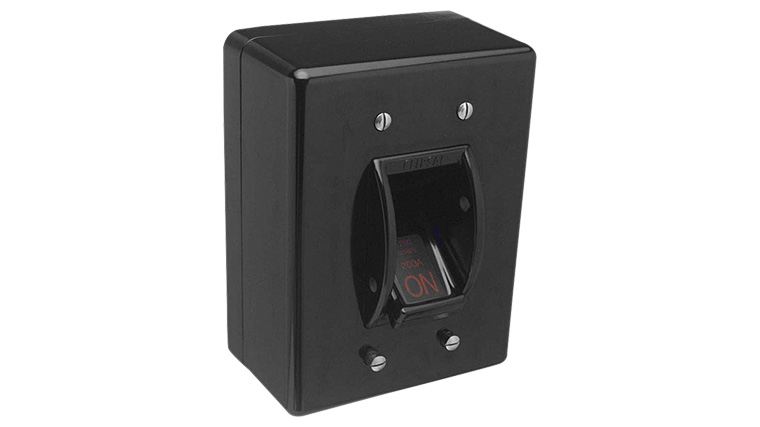

With an established reputation for good design, quality component and reliability, Clipsal has a range of isolating products to suit residential, commercial and industrial applications. Designed for machine or mains isolating from 10 to 300 Ampere, with the range including surface and panel mounted options.
- Cam action switching to give a 'fast-make' and slow positive 'force-break'
- Large silver contacts solidly braised to silver plated bridges and tin plated terminals prevent hot spots
- Large terminal screws for a range of cable sizes
- Switches 75A and over (except 80A), are fitted with pressure plates for perfect clamping of aluminium cables
- Insulating caps provided with front wired models for added safety
- Residential, Commercial and Industrial applications
- Panel mount switchboards
- Distribution boards
