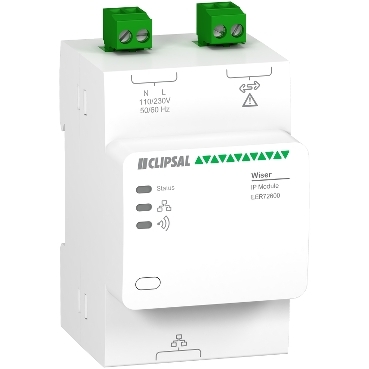

Wiser Energy, IP communication Module

Item Number: EER72600

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width54 mm

Height icon

Height84 mm

Depth icon

Depth67 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Wiser

Range of product

Wiser Link

Product brand

Clipsal

Product or component type

IP communication module

Sustainable offer status

Green Premium product

Physical

Mounting mode

clip-on

Mounting support

DIN rail

Communication port protocol

Zigbee

Integrated connection type

Ethernet port for DHCP client

Local signalling

green, orange and red LED for product status|green and orange LED for Ethernet status (LAN ST)

Height

84 mm

Width

54 mm

Depth

67 mm

Net weight

133 g

Range compatibility

Wiser energy meter|Wiser PowerTag energy sensor

Ip degree of protection

IP20 casing: conforming to IEC 60529|IP40 front face: conforming to IEC 60529

Ik degree of protection

IK05 conforming to IEC 62262

Relative humidity

93 % at 40 °C

Ambient air temperature for operation

-25...50 °C

Standards

IEC 61000-6-1:2005|IEC 61000-6-3:2005

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1604024

Circularity profile

ENVEOLI1604024

Material

Material

PC (polycarbonate)

Others

Commercial status history

SESA301466 | Tue Dec 12 00:46:00 EST 2023 | From Import Local | From 18 to 19

Package 1 bare product quantity

1

Product name

MIP

[us] rated supply voltage

110/230 V AC (+/- 15 %), <2 A

Network frequency

50/60 Hz

Power consumption in va

5 VA

Transmission rate

9600 bit/s 0-24 V 2-wire non polarised cable <50 m Wiser EM5 energy meter

Web services configuration

Bluetooth

Communication interface

Ethernet 10/100BASE-T <100 m Cat.6 STP

Overvoltage category

III

Electrical connection

screw terminal block for main supply|screw terminal block for communication

Targeted country

Australia

Pollution degree

2

Operating altitude

0...2000 m

Electromagnetic compatibility

electromagnetic immunity: , conforming to IEC 61000-6-1|electromagnetic emission: , conforming to IEC 61000-6-3

Fire resistance

650 °C during 30 s

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.5 cm

Package 1 width

6.5 cm

Package 1 length

11.1 cm

Package 1 weight

0.174 kg

Unit type of package 2

P06

Number of units in package 2

288

Package 2 height

77.0 cm

Package 2 width

80.0 cm

Package 2 length

60.0 cm

Package 2 weight

64.316 kg

Unit type of package 3

S03

Number of units in package 3

36

Package 3 height

30.0 cm

Package 3 width

30.0 cm

Package 3 length

40.0 cm

Package 3 weight

6.977 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
