C-Bus Control and Management System PIR Occupancy Sensor Flush Mount, 360 Degree

Home ProductsSmart Home SolutionsC-BusPIR Occupancy Sensor

C-Bus Control and Management System PIR Occupancy Sensor

Item Number: 5753L

Contact your Wholesaler for pricing

Where To Buy

Datasheet

PDF datasheet

For 5753L

Download

Barcode

Qty UoM EAN Colour
1 9311554549428 -

Specifications

Design

Range of product

C-Bus

Range

C-Bus

Product brand

Clipsal

Product or component type

occupancy sensor

Device application

lighting

Physical

Sensor type

PIR

Protection type

creep zone protection

Type of setting

light sensitivity adjustable

Number of channels

1

Movement detection area

15 m

Device mounting

flush

Mounting height

2.4 m

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP121002EN

Circularity profile

ENVEOLI121002EN

Material

Material

plastic
Show all specifications

Documents & downloads

hide show
Filter items

  • All

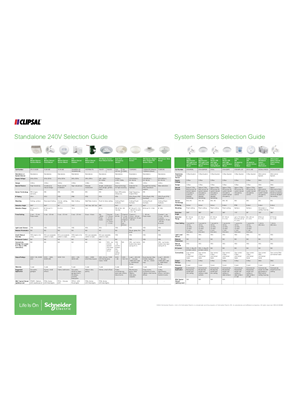

  • Product Brochures

  • CAD Files and Packs

  • Other technical guide

  • Technical Data Catalogues

  • Installation Instruction

  • End of Life Manual

  • Environmental Disclosure

  • Operating Manuals

  • Specification Guide

  • Application Notes

  • Certificates (MSDS)

  • Declaration of Conformity

  • Software - Release

  • Software - Data Library

  • Page 2  /  50
  • Page 3  /  50
  • Page 4  /  50
  • Page 5  /  50
  • Page 6  /  50
  • Page 7  /  50
  • Page 8  /  50
  • Page 9  /  50
  • Page 10  /  50
  • Page 11  /  50
  • Page 12  /  50
  • Page 13  /  50
  • Page 14  /  50
  • Page 15  /  50
  • Page 16  /  50
  • Page 17  /  50
  • Page 18  /  50
  • Page 19  /  50
  • Page 20  /  50
  • Page 21  /  50
  • Page 22  /  50
  • Page 23  /  50
  • Page 24  /  50
  • Page 25  /  50
  • Page 26  /  50
  • Page 27  /  50
  • Page 28  /  50
  • Page 29  /  50
  • Page 30  /  50
  • Page 31  /  50
  • Page 32  /  50
  • Page 33  /  50
  • Page 34  /  50
  • Page 35  /  50
  • Page 36  /  50
  • Page 37  /  50
  • Page 38  /  50
  • Page 39  /  50
  • Page 40  /  50
  • Page 41  /  50
  • Page 42  /  50
  • Page 43  /  50
  • Page 44  /  50
  • Page 45  /  50
  • Page 46  /  50
  • Page 47  /  50
  • Page 48  /  50
  • Page 49  /  50
  • Page 50  /  50

Frequently Asked Questions

hide show

What is the difference between the 5753L and 5753PEIRL?

5753PEIRL has a Blue flashing indicator while 5753L have no blue flashing indicator. Both have red motion indicator which can be disable.
pot setting for 5753l vs 5753PERIL

5753PEIRL has a IR receiver for control from a C-Bus IR remote control while 5753L have no IR receiver
chart for 5753l vs 5753PERIL


How to use C-Bus sensor to trigger an ON/OFF scene store on a C-Bus switch?

Scenario: You want to use a C-Bus motion SENSOR to trigger a scene stored on another device i.e C-Bus switch when it turns ON and then trigger a second scene when it times OUT and turns OFF.

Mandatory: The C-Bus switch will need to have built in scene and virtual keys (switch firmware >= v2.0.00)

The motion detector to trigger scenes needs to utilise the secondary application (trigger control)

C-Bus Sensor secondary application is set to Trigger control and the Key1 is then select to set to trigger secondary application by clicking on the P(Primary application) it will change to S(secondary application).

1

The Trigger Group will need to be the same (common) to trigger both scenes - and its the value of the trigger group that acts as the action selector telling the triggered scene which action is being triggered.

The scenes will be stored in a KEYE4.

Action Selector 0 means that Scene 1 will trigger when Trigger Group 0 is at 0 (OFF) level and
Action Selector 255 means that Scene 2 will trigger when Trigger Group 0 is at 255 (ON) level.

2

3

4




How to Program "Absence Detection" on C-Bus outdoor PIR sensor?

Objective:
Absence detection sets the sensor to detect the absence of motion. If the lighting is on and the sensor detects the absence of motion, a timer is activated. When the timer expires and the sensor element still detects absence, a C-Bus command is sent to control lighting.
This article will guide you how to program “Absence Detection”, it will cover those C-Bus sensors, 5751L, 5750WPL and 5753L with the old firmware v1.2.67.

Product Line:
C-Bus Sensors: 5751L, 5750WPL and 5753L with the old firmware v1.2.67

Environment:
C-Bus Toolkit 1.15.5

Resolution:
  1. Open C-Bus Toolkit
  2. Scan the Network
  3. Double click the sensor to open its GUI
  4. Select a control group from the “Key 1 Group” dropdown list
  5. Define the Expiry Time (5 minutes assigned by default) and click “OK”
  6. Go to Key Functions tab and change the “On Key” on MD column for Short Press to “Idle”
  7. A Confirm-21000 message will pop up
  8. Click “YES” to accept the non-PIR functions
  9. Click “Apply” or “OK”
  10. Save to Database and Physical Unit
