C-Bus Control and Management System, Passive Infrared Sensor, 110 degrees

Home ProductsSmart Home SolutionsC-BusPassive Infrared Sensor

C-Bus Control and Management System, Passive Infrared Sensor, 110 degrees Grey

Item Number: 5750WPL-GY

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width74 mm

Height icon

Height111 mm

Depth icon

Depth138 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Australian Series|C-Bus

Range

C-Bus

Product brand

Clipsal

Product or component type

occupancy sensor

Device application

lighting

Sustainable offer status

Green Premium product

Physical

Sensor type

PIR

[ue] rated operational voltage

15...36 V DC

[in] rated current

18 mA

Communication network type

C-Bus 100

Number of channels

1

Type of setting

light sensitivity adjustable

Light intensity adjustment

1 lux user selectable

Local signalling

LED for status

Connections - terminals

2 flying leads

Device mounting

surface

Mounting support

wall|ceiling

Mounting height

2.4 m

Fixing center

84 mm

Width

74 mm

Height

111 mm

Depth

138 mm

Ip degree of protection

IP66

Ambient air temperature for operation

0...45 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP121002EN

Circularity profile

ENVEOLI121002EN

Material

Material

plastic

Others

Package 1 bare product quantity

1

Product specific application

staircase monitoring

Data backed up

non-volatile memory

Resolution

1 s

Starting time

5 s

Horizontal detection angle

0...110 °

Time delay range

0...1 s (switch-on)

Duty cycle

1090 min

Detection face

lateral: 12 m|frontal: 18 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

12.6 cm

Package 1 width

17.6 cm

Package 1 length

24.8 cm

Package 1 weight

340 g

Unit type of package 2

CAR

Number of units in package 2

10

Package 2 height

18.2 cm

Package 2 width

30.8 cm

Package 2 length

45.3 cm

Package 2 weight

3.6 kg
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Other technical guide

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Operating Manuals

  • Declaration of Conformity

  • Software - Release

Clipsal Standalone & System Motion Sensor Brochure_998-21944520
ZIP

Clipsal Standalone & System Motion Sensor Brochure_998-21944520

VERSION

2.0

DATE

16 Jul 2024

REVISION

2.0

DOWNLOAD (ZIP) 5.5 MB
998-20872742_SpaceLogic C-Bus Commercial Brochure
ZIP

998-20872742_SpaceLogic C-Bus Commercial Brochure

VERSION

1.0

DATE

16 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 4.2 MB
C-Bus - Home Control to enhance your lifestyle, 122851
ZIP

C-Bus - Home Control to enhance your lifestyle, 122851

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 6.3 MB
Saturn, Pure Glass - Beautifully crafted, 6314
PDF

Saturn, Pure Glass - Beautifully crafted, 6314

VERSION

1.0

DATE

24 Dec 2018

REVISION

1.0

DOWNLOAD (PDF) 417.1 KB
One touch - blinding levels of control, 14804
PDF

One touch - blinding levels of control, 14804

VERSION

1.0

DATE

19 Jun 2018

REVISION

1.0

DOWNLOAD (PDF) 369.7 KB
C-Bus Cool levels of control, Ceiling Sweep Fan Control Relay, 22457
PDF

C-Bus Cool levels of control, Ceiling Sweep Fan Control Relay, 22457

VERSION

1.0

DATE

21 Dec 2016

REVISION

1.0

DOWNLOAD (PDF) 444.1 KB
C-Bus, Measure, monitor and control, C-Bus Current Measurement Unit, 23021
PDF

C-Bus, Measure, monitor and control, C-Bus Current Measurement Unit, 23021

VERSION

1.0

DATE

21 Dec 2016

REVISION

1.0

DOWNLOAD (PDF) 1.9 MB
Reflection, expression without words
PDF

Reflection, expression without words

VERSION

1.0

DATE

21 Dec 2016

REVISION

1.0

DOWNLOAD (PDF) 620.3 KB
C-Bus Energy Management & Control System, The ultimate control solution
ZIP

C-Bus Energy Management & Control System, The ultimate control solution

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
Clipsal Standalone and System Sensor Selection Guide-Technical leaflet
ZIP

Clipsal Standalone and System Sensor Selection Guide-Technical leaflet

VERSION

2.0

DATE

21 Feb 2024

REVISION

2.0

DOWNLOAD (ZIP) 203.9 KB

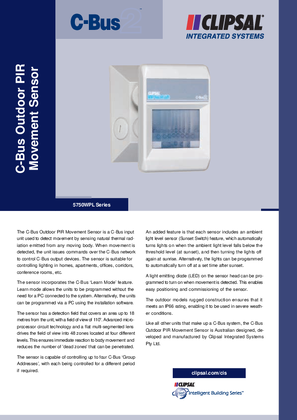

5750WPL Series C-Bus2 Outdoor PIR Movement Sensor
