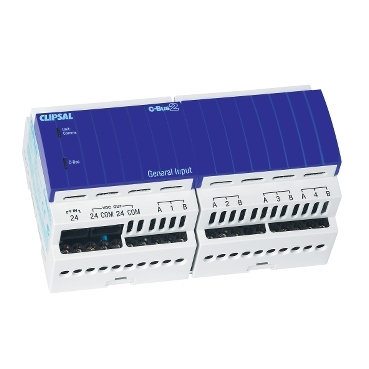

C-Bus Control and Management System, General Input Unit, 4 Channel, 8M Modules, 24VAC Power Pack

Item Number: 5504GI

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width143 mm

Height85 mm

Depth65 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	EAN	Colour
1	9311554571115	-
6	39311554571116	-
10	9311554571122	-

Specifications

Design

Range of product

C-Bus

Range

C-Bus

Product brand

Clipsal

Product or component type

input module

Device application

connection

Sustainable offer status

Green Premium product

Physical

Mounting support

DIN rail

Width

143 mm

Height

85 mm

Depth

65 mm

Net weight

190 g

Ip degree of protection

IP20

Ambient air temperature for operation

0...45 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120702EN

Circularity profile

ENVEOLI1207002EN

Others

Package 1 bare product quantity

Number of modules

[us] rated supply voltage

supply circuit: 16...27 V AC/DC 50/60 Hz, <0.061 A|communication bus: 15...36 V DC, <0.018 A

Number of inputs

Output voltage

24 V DC (+/- 10 %) , 0.25 A

Analogue input type

configurable voltage, current or probe 0...1 V 100 kOhm input voltage|configurable voltage, current or probe 0...3000 Ohm connection of probes|configurable voltage, current or probe 0...5 V 100 kOhm input voltage|configurable voltage, current or probe 0...10 V 100 kOhm input voltage|configurable voltage, current or probe 0...20 mA 249 Ohm|configurable voltage, current or probe 4...20 mA 249 Ohm|configurable voltage, current or probe 0...10000 Ohm connection of probes|configurable voltage, current or probe 0...20 V 100 kOhm input voltage|configurable voltage, current or probe 0...500 Ohm connection of probes|configurable voltage, current or probe 0...1000 Ohm connection of probes

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

10 cm

Package 1 width

10.5 cm

Package 1 length

22.3 cm

Package 1 weight

920 g

Unit type of package 2

BB1

Number of units in package 2

Package 2 height

22.5 cm

Package 2 width

22.5 cm

Package 2 length

32.7 cm

Package 2 weight

7 kg

Package 3 height

22.5 cm

Show all specifications

Documents & downloads

hide show

Colour ()

C-Bus Control and Management System, General Input Unit, 4 Channel, 8M Modules, 24VAC Power Pack

Item Number: 5504GI

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

Product Brochures

CAD Files and Packs

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Operating Manuals

Specification Guide

Application Notes

Declaration of Conformity

Software - Release

Software - Data Library

998-20872742_SpaceLogic C-Bus Commercial Brochure

C-Bus - Home Control to enhance your lifestyle, 122851

Saturn, Pure Glass - Beautifully crafted, 6314

One touch - blinding levels of control, 14804

C-Bus Cool levels of control, Ceiling Sweep Fan Control Relay, 22457

C-Bus, Measure, monitor and control, C-Bus Current Measurement Unit, 23021

Reflection, expression without words

C-Bus Energy Management & Control System, The ultimate control solution

Revit Pack C-Bus Wired

Revit Pack C-Bus Wireless

C-Bus Product Overview Catalogue, 22762

C-Bus, LCD Key Input - Product End of Life Instructions

LCD Key Input - Product Environmental Profile

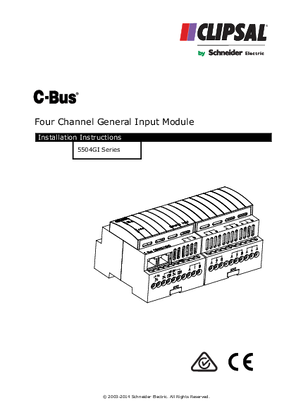

Instruction Sheet for 5504GI
