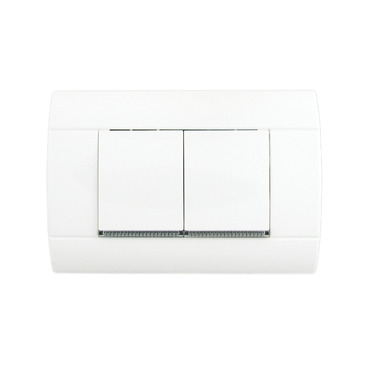

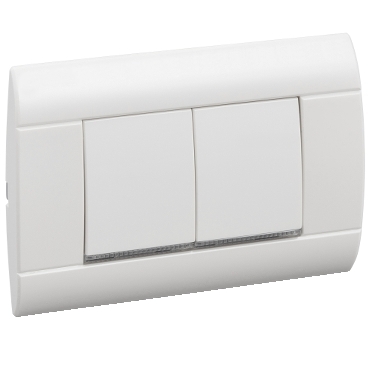

C-Bus Control and Management System, Avanti Large Rocker Wall Switch, 2 Button

Home ProductsSmart Home SolutionsC-BusAvanti Large Rocker Wall Switch

C-Bus Control and Management System Avanti Large Rocker Wall Switch White Electric

Item Number: 5092NL-WE

Discontinued

Retail
N/A
RRP (Inc. GST)

Datasheet

PDF datasheet

For 5092NL-WE

Barcode

Qty UoM EAN Colour
1 9311554674120 White Electric
5 9311554674137 White Electric
50 19311554674127 White Electric

Specifications

Design

Range of product

Australian Series|C-Bus

Product brand

Clipsal

Physical

Device presentation

basic element with full cover plate

Control type

button

[ue] rated operational voltage

15...36 V DC

[in] rated current

18 mA

Mounting support

wall

Eu rohs directive

Under investigation
Show all specifications
