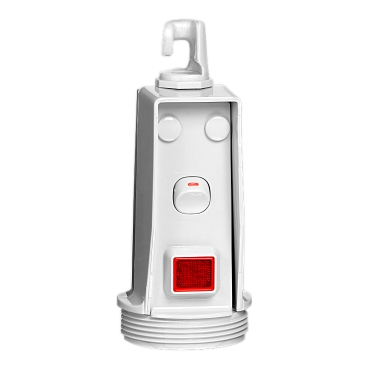

Standard Series, Suspension Single Switch Socket Outlet, 250V, 15A, Neon Grey
Item Number: SS15/15N-GY
Datasheet
Close
Specifications
Design
Range of product
Standard Series
Product or component type
switched socket
Product brand
Clipsal
Sustainable offer status
Green Premium product
Physical
Control type
ON/OFF button
Number of gangs
1 gang
Pin number
3
Number of power socket outlets
1
Actuator
rocker|switch
Local signalling
indicator light
[ue] rated operational voltage
250 V AC
[in] rated current
15 A
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP1605009
Circularity profile
N/A
Material
Material
plastic
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.5 cm
Package 1 width
6.6 cm
Package 1 length
14.7 cm
Package 1 weight
192.1 g
