Home ProductsPower Points and SwitchesStandard SeriesPlug Top

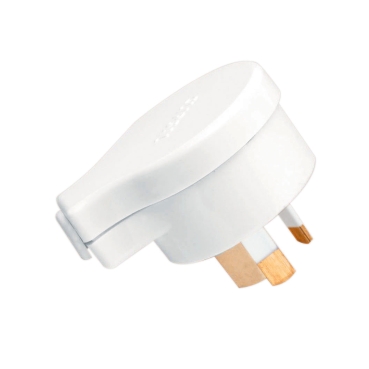

Standard Series Plug Top White Electric

Item Number: 418S-WE

White Electric 1 PCE 0

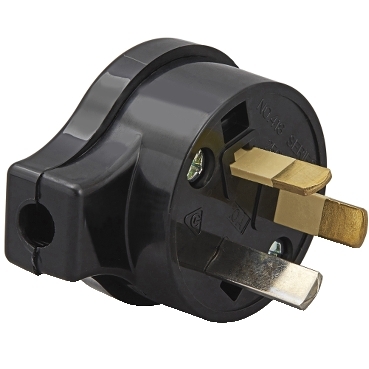

Black 1 PCE 0
Grey 1 PCE 0

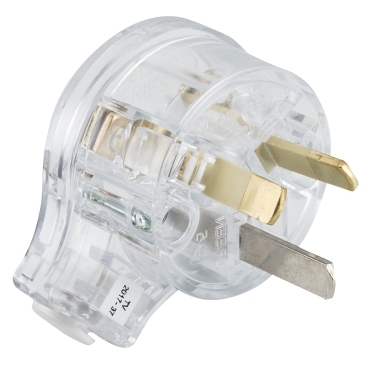

Transparent 1 PCE 0

Retail

N/A

RRP (Inc. GST)

Where To Buy

Datasheet

For 418S-WE

Download

Barcode

Qty	EAN	Colour
1	9311554595029	White Electric
10	9311554595036	White Electric
200	19311554595026	White Electric

Barcode

Qty	EAN	Colour
1	9311554595029	WE
10	9311554595036	WE
200	19311554595026	WE
1	9311554595104	BK
10	9311554595111	BK
100	19311554595101	BK
1	9311554595043	GY
10	9311554595050	GY
200	19311554595040	GY
1	9311554595128	TR
10	9311554595135	TR
100	19311554595125	TR

Specifications

Design

Range of product

Standard Series

Product brand

Clipsal

Colour

white electric

Physical

[in] rated current

10 A

[ue] rated operational voltage

230 V 50/60 Hz conforming to EN 60309-2

Connections - terminals

screw terminal

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP111111EN

Circularity profile

N/A

Material

Material

plastic

Others

Package 1 bare product quantity

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Voltage colour

blue

Plug, socket, control station shape

angled

Duration

6 h

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.6 cm

Package 1 width

7.1 cm

Package 1 length

10.0 cm

Package 1 weight

42.0 g

Take-back

Product contributes to saved and avoided emissions

Recycled metal content at cr level

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

3.7670262307054205

Global warming ; total life cycle

4 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

All
Product Brochures
Technical Data Catalogues
Environmental Disclosure
Certificates (MSDS)

ZIP

Insulated Safety Pin Products, Our plug for safety

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 585.7 KB

ZIP

Plugs, Sockets and Adaptors Technical Data

VERSION

1.0

DATE

21 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.6 MB

ZIP

Mounting Accessories, Working hard behind the scene. Technical Data - 11345

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 8.1 MB

ZIP

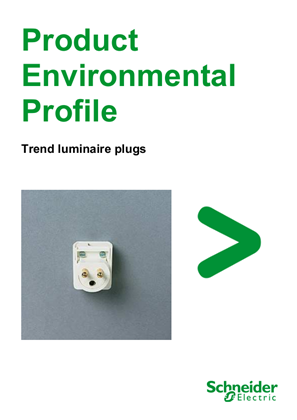

TREND luminaire plugs - Product Environmental Profile

VERSION

1.0

DATE

04 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 158.6 KB

ZIP

Clipsal, 418S side entry plug, Certificate, RCM, ULNZ LTD

VERSION

1.0

DATE

17 Oct 2024

REVISION

1.0

DOWNLOAD (ZIP) 245.7 KB

Colour White Electric (WE)
