Saturn Series push-button Mechanism Momentary, 230/240V, 16A

Home ProductsPower Points and SwitchesSaturn (inc. Saturn Horizon)push-button Mechanism

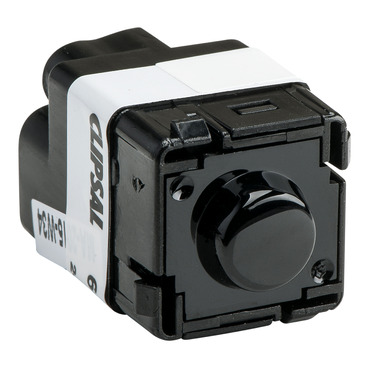

Saturn Series push-button Mechanism

Item Number: 60PBBP

Retail
$43
RRP (Inc. GST)

For those situations where you only want to activate something temporarily the Saturn Series Bell Press, or momentary push-button is the right choice. The push-button switch is only activated as long as someone is pressing it. Once the pressure is removed, the switch is no longer activated.

Where To Buy

Datasheet

PDF datasheet

For 60PBBP

Download

Product Dimensions

Width icon

Width23.5 mm

Height icon

Height23.5 mm

Embedding depth icon

Embedding depth31.6 mm

See full specifications

Barcode

Qty UoM EAN Colour
1 9311554706470 -
10 9311554706487 -
500 19311554706477 -

Specifications

Design

Range of product

Saturn Series 4000

Product or component type

push-button

Product brand

Clipsal

Physical

Device presentation

basic element

Actuator

push-button

Local signalling

without light indicator

Fixing mode

by screws

[ue] rated operational voltage

250 V AC

Inrush current

16 A

Height

23.5 mm

Depth

40 mm

Embedding depth

31.6 mm

Width

23.5 mm

Mounting position

vertical

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1708008EN

Circularity profile

ENVEOLI1708008EN

Material

Material

plastic
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Certificates (MSDS)

  • Page 2  /  2

Frequently Asked Questions

hide show

Can 2 way dimming be operated with push button dimmer 4061E2PUDM?

No, unfortunately this is not possible as it is a 1 way mechanism. When power is lost to this mechanism it is restored to its off state which can ONLY be triggered by that switch and not an additional switch.
If Multi-way pushbutton dimming is required it is recommended to use the Wiser Micro Dimmer Module and Bell press mechanisms ( CLP5010-0001 and 60PBBP)
This setup allows a short press to turn on and off the dimmer while a long press will ramp up or ramp down the dimmer.( see attached for wiring diagram)
For further information please visit https://www.clipsal.com/products/detail?CatNo=CLP5010-0001&backto=/search?q=CLP&tab-document-1=0&itemno=CLP5010-0001
Wiser micro module dimmer



What series of mechs are used in the Saturn Zen plates for a Bell Press mech ?

The Zen plate use 60 series mechs , the momentary bell press mech is a 60PBBP or 60PBBPL if led is required.
Click on link for further information:https://www.clipsal.com/search?q=60PBBP

60PBBPL - Clipsal Saturn Push Button Switch Mechanism, Momentary, 250V, 16A, LED

Can 2 way push button dimming be used in Saturn Zen

2 way dimming is available in as push button in Saturn Zen
Can be done with 2 X Bell press mechs ( Z4061VH + 60PBBPL )and 1 X Micro Module
See links below for further information:
https://www.clipsal.com/products/detail?CatNo=60PBBPL&tab-document-1=0&itemno=60PBBPL
https://www.clipsal.com/products/detail?CatNo=Z4061VH&tab-document-1=0&itemno=Z4061VH-ZW
https://www.clipsal.com/products/detail?CatNo=CLP5010-0001&tab-document-1=0&itemno=CLP5010-0001
