Pro Series Quad Power Point with 2 extra switches Horizontal Mount, 250V, 10A, Less Mechanisms

Home ProductsPower Points and SwitchesPro SeriesQuad Power Point with 2 extra switches

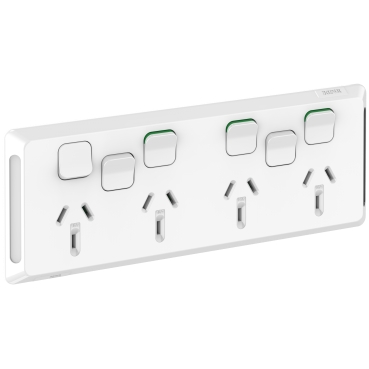

Pro Series Quad Power Point with 2 extra switches Extra Vivid White

Item Number: P3015-4XXUA-XW

Build this product

Retail
$99
RRP (Inc. GST)

Rated to IK08, the Pro Series Quad Switched Power Point with Two Extra Switch provisions lets you plug in up to four appliances, as well as providing control for additional lighting, heating, or exhaust fan control. The 10A, 250V quad Power Point is 212mm wide, 78mm high and 38mm deep.

Where To Buy

Datasheet

PDF datasheet

For P3015-4XXUA-XW

Download

Product Dimensions

Width icon

Width212 mm

Height icon

Height78 mm

Depth icon

Depth38 mm

See full specifications

Barcode

Qty UoM EAN Colour
1 9311554805753 Extra Vivid White

Specifications

Design

Range

Pro Series

Product or component type

switched socket

Colour tint

white (XW)

Surface finish

glossy

Surface treatment

untreated

Physical

Device presentation

complete product

Outlet poles configuration

2P + E with shutter

Outlet standard

Australian

Device mounting

flush

Number of power socket outlets

4

Number of rocker

4

Range compatibility

Pro Series

Outlet standard description

with earthing contact

Ground lug position

straight 180° position

Number of gangs

2 gangs

Fixing mode

by screws

Installation direction

horizontal

Type of packing

polybag

Quantity per set

set of 10

Sale per indivisible quantity

1

Rated current

10 A at 250 V AC 50 Hz

Connections - terminals

3 screw terminals

Screwdriver shape

  • square drive no 1 (SQ1)
  • Philips No 2

Clamping connection capacity

  • 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)
  • 3 x 4 mm² for rigid or stranded cable(s)

Wire stripping length

16 mm

Height

78 mm

Width

212 mm

Depth

38 mm

Net weight

0.216 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Standards

AS/NZ 3112

Product certifications

RCM

Ik degree of protection

IK08

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2309004EN

Circularity profile

N/A

Material

Material

  • PC (polycarbonate): fixing frame
  • PP (polypropylene)
  • POM (polyoxymethylene): shutter
  • PC (polycarbonate): window
  • ABS (acrylonitrile butadiene-styrene): infill piece
  • ABS (acrylonitrile butadiene-styrene): skin
  • POM (polyoxymethylene): locking bar
