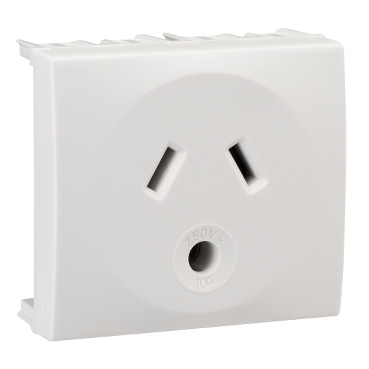

Modena/Strato, Single Socket 10A, 250V Round Earth White Electric
Item Number: 8010LLM-WE
Specifications
Design
Range of product
Series 80
Product or component type
socket-outlet
Product brand
Clipsal
Physical
Quantity per set
set of 1
Marking
without marking
Local signalling
without light indicator
[in] rated current
10 A
[ue] rated operational voltage
250 V AC
Depth
31 mm
Width
49.8 mm
Height
44.8 mm
Standards
AS/NZS 3112
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Package 1 bare product quantity
1
Cover type
full cover plate
Network frequency
50 Hz
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3 cm
Package 1 width
4.5 cm
Package 1 length
4.5 cm
Package 1 weight
0.05 kg
Unit type of package 2
BB1
Number of units in package 2
5
Package 2 height
62 cm
Package 2 width
86 cm
Package 2 length
126 cm
Package 2 weight
0.5 kg
Unit type of package 3
CAR
Number of units in package 3
50
Package 3 height
130 cm
Package 3 width
185 cm
Package 3 length
330 cm
Package 3 weight
5 kg
