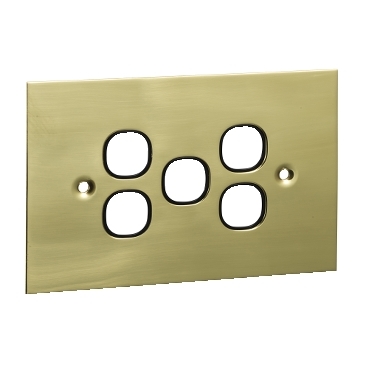

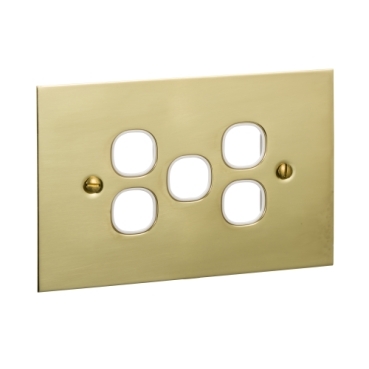

Metal Plate Series, Switch Grid Plate and Cover, 5 Gang, BBSL Style, Less Mechanism, Over Size White Electric
Item Number: BBSL35VH-WE
Datasheet
Close
Specifications
Design
Range of product
Metal Plate
Product brand
Clipsal
Product destination
switch
Sustainable offer status
Green Premium product
Physical
Fixing mode
by screws
Marking
without marking
Mounting position
horizontal and vertical
Fixing center
84 mm
Length
130 mm
Width
85 mm
Depth
8.7 mm
Number of gangs
5 gangs
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP111024EN
Circularity profile
ENVEOLI110713EN
Material
Material
brass
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.0 cm
Package 1 width
8.5 cm
Package 1 length
0.9 cm
Package 1 weight
180 g
