Clipsal Iconic, PIR Motion Sensor Mechanism

Home ProductsPower Points and SwitchesClipsal IconicPIR Motion Sensor Mechanism

Clipsal Iconic PIR Motion Sensor Mechanism Translucent

Item Number: 41EPIRM-TN

Retail
$202
RRP (Inc. GST)

Where To Buy

Datasheet

PDF datasheet

For 41EPIRM-TN

Download

Product Dimensions

Width icon

Width48.5 mm

Height icon

Height23.5 mm

Embedding depth icon

Embedding depth41 mm

See full specifications

Barcode

Qty UoM EAN Colour
1 9311554794224 Translucent

Specifications

Design

Range

Clipsal Iconic

Product brand

Clipsal

Product or component type

movement detector

Device application

  • power circuit application
  • lighting

Physical

Function of module

motion detection

Sensor type

PIR

Provided equipment

  • carrier (plastic)
  • finishing accessory

[ue] rated operational voltage

220/240 V AC 50 Hz 25 °C

Power consumption in w

1 W at 240 V AC 50 Hz

Maximum load current

3 A for per output

Rated power in w

  • 100 W LED lighting
  • 750 W incandescent
  • 100 W fluorescent
  • 400 W LV halogen
  • 100 W motor

Protection type

input surge protection for sensor

Electrical insulation class

double insulation

Type of setting

time adjustment: 20...900 s

Light intensity adjustment

10...2000 lux

Movement detection area

5 m

Detection angle

  • 100° horizontal
  • 82° vertical

Device mounting

wall mounted

Mounting height

1.2 m

Type of installation

indoor installation

Width

48.5 mm

Height

23.5 mm

Depth

49 mm

Embedding depth

41 mm

Ip degree of protection

IP20 (modular enclosure) conforming to IEC 60529

Ambient air temperature for operation

-10...50 °C

Ambient air temperature for storage

-20...60 °C

Standards

AS/NZS 60669.2.1

Relative humidity

5...90 % non-condensing

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1802001EN

Circularity profile

ENVEOLI1802001EN

Material

Material

plastic
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Other technical guide

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Case Studies

  • Certificates (MSDS)

  • Page 2  /  2
40 SERIES TECHNICAL WIRING BROCHURE
ZIP

40 SERIES TECHNICAL WIRING BROCHURE

VERSION

1.1

DATE

13 Nov 2024

REVISION

1.1

DOWNLOAD (ZIP) 14.8 MB
GDE9445300 - Brochure - Iconic Range Overview_998-22131437
ZIP

GDE9445300 - Brochure - Iconic Range Overview_998-22131437

VERSION

1.2

DATE

14 Oct 2024

REVISION

1.2

DOWNLOAD (ZIP) 14.9 MB
Clipsal Standalone & System Motion Sensor Brochure_998-21944520
ZIP

Clipsal Standalone & System Motion Sensor Brochure_998-21944520

VERSION

2.0

DATE

16 Jul 2024

REVISION

2.0

DOWNLOAD (ZIP) 5.5 MB
Clipsal ICONIC Collection Brochure 998-20216468_AU-GB
ZIP

Clipsal ICONIC Collection Brochure 998-20216468_AU-GB

VERSION

1.1

DATE

02 Aug 2022

REVISION

1.1

DOWNLOAD (ZIP) 2.1 MB
PRO SERIES - RANGE OVERVIEW BROCHURE
ZIP

PRO SERIES - RANGE OVERVIEW BROCHURE

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 5.1 MB
Selection chart for ICONIC SAE Electronic & BLE mechanisms, 998-22239202
ZIP

Selection chart for ICONIC SAE Electronic & BLE mechanisms, 998-22239202

VERSION

4.0

DATE

24 Jan 2024

REVISION

4.0

DOWNLOAD (ZIP) 271.6 KB

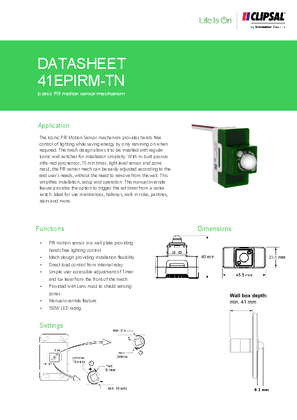

Technical Data Sheet for ICONIC 41EPIRM PIR Sensor Mech
ZIP

Technical Data Sheet for ICONIC 41EPIRM PIR Sensor Mech

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 424.3 KB
PIR motion sensor with load output
ZIP

PIR motion sensor with load output

VERSION

1.1

DATE

29 May 2024

REVISION

1.1

DOWNLOAD (ZIP) 286.6 KB
PIR motion sensor with load output
ZIP

PIR motion sensor with load output

VERSION

1.1

DATE

29 May 2024

REVISION

1.1

DOWNLOAD (ZIP) 306.5 KB
Iconic PIR motion sensor with load output for indoor mounting
ZIP

Iconic PIR motion sensor with load output for indoor mounting

VERSION

1.0

DATE

14 Jul 2022

REVISION

1.0

DOWNLOAD (ZIP) 2.4 MB
Clipsal ICONIC Product Conversion Chart
ZIP

Clipsal ICONIC Product Conversion Chart

VERSION

1.0

DATE

07 Apr 2022

REVISION

1.0

DOWNLOAD (ZIP) 164.4 KB
Schneider, 41EPIRM and PDL352MPIR motion sensor, Certificate, RCM, Global Mark Pty LTD
ZIP

Schneider, 41EPIRM and PDL352MPIR motion sensor, Certificate, RCM, Global Mark Pty LTD

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 311.1 KB

Frequently Asked Questions

hide show

Will the 41EPIRM fit in the 3025XA?

No, the 41EPIRM will not fit in the 3025XA.
