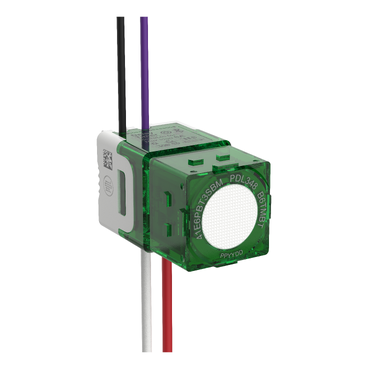

Clipsal Iconic Electronic Time Delay Switch Mechanism Push Button with BLE & ControlLink 3-Wire, 6A

Home ProductsPower Points and SwitchesClipsal IconicElectronic Time Delay Switch Mechanism Push Button with BLE & ControlLink

Clipsal Iconic Electronic Time Delay Switch Mechanism Push Button with BLE & ControlLink 3-Wire, 6A | Vivid White

Item Number: 41E6PBT3SBM-VW

The Clipsal Iconic Electronic Time Delay Switch Mechanism features ControlLink remote multiple device control and Bluetooth Low Energy technology. This electronic timer switch has a warm white LED configurable indicator and Wise Room app capability.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width23 mm

Height icon

Height23 mm

Embedding depth icon

Embedding depth38 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal Iconic

Product or component type

timer

Colour tint

vivid white

Sustainable offer status

Green Premium product

Physical

Device presentation

mechanism

Range compatibility

Clipsal Iconic cover plate

Device mounting

flush

Actuator

push-button

Fixing mode

clip-in

Connections - terminals

4 screw terminals

Type of packing

box

Sale per indivisible quantity

1

Remote control type

push-button|Wiser room application

[ie] rated operational current

6 A

[ue] rated operational voltage

240 V AC 50 Hz

Load type

LED lighting 6 A|incandescent lamp 6 A|low voltage halogen lamp with iron core transformer 6 A|low voltage halogen lamp with electronic transformer 6 A|fluorescent lamp 6 A|compact fluorescent lamp 6 A|resistive 6 A

Derating factor

1 devices6 A without derating|2 devices4.5 A with derating factor|3 devices4 A with derating factor|4 devices3 A with derating factor|5 devices2 A with derating factor|6 devices1.5 A with derating factor

Operating distance

30 m

Control signal type

ControlLink

Connections - terminals

screw terminals

Number of terminals

4

Wiring configuration

3 wires with neutral

Screwdriver shape

square drive no 1 (SQ1)|Philips

Local signalling

LED indicator (warm white)

Height

23 mm

Width

23 mm

Depth

40 mm

Embedding depth

38 mm

Standards

AS/NZS 60669.2.1

Ambient air temperature for storage

0...60 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

0...90 %

Eu rohs directive

Compliant

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1708008EN

Circularity profile

ENVEOLI1708008EN

Material

Material

PC (UL94 V-2): top|PC MAS056 (UL94 V-2): bottom

Others

Package 1 bare product quantity

1

Time delay

1...86400 s (24 h) adjustable

Power range

> 0 W

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4 cm

Package 1 width

6.7 cm

Package 1 length

8.6 cm

Package 1 weight

78 g
Show all specifications
