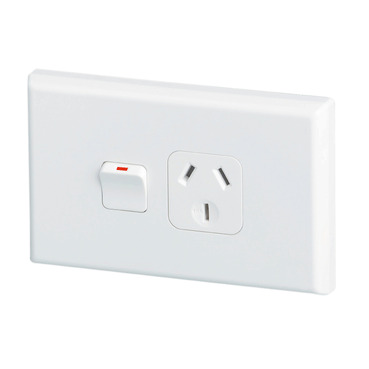

Clipsal - 600 Series, Switched Socket, Single Horizontal 10A

Clipsal - 600 Series, Switched Socket, Single Horizontal 10A White

Item Number: 694-WH

Socket outlet assembly for horizontal installations. Single switched socket. 600 Series cover and socket grid are included. PDL 600. Colour: White Rated current: 10A. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

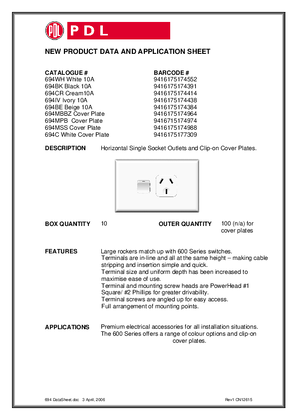

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

PDL 600 Designer Series

Product brand

Clipsal

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Actuator

rocker|switch

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

230...240 V AC

[in] rated current

10 A

Height

74 mm

Width

118 mm

Fixing center

84 mm

Standards

AS 3100|AS 3133|AS 3112

Material

Material

plastic

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

12.0 cm

Package 1 length

7.7 cm

Package 1 weight

85.7 g
