2000 Series Time Delay Switch Time Delay Switch, 1 Gang, 3 Wire, 10 A

Home ProductsPower Points and Switches2000 SeriesTime Delay Switch

2000 Series Time Delay Switch Time Delay Switch, 1 Gang, 3 Wire, 10 A | White Electric

Item Number: 2031VETR3-WE

Timer that is designed to automatically turn off lights after a preset period. The device has a 3-wire design which requires a neutral connection. Clipsal 2000 Series. Colour: White Electric Rated current: 10A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
Timer inside
Timer in laundry room
Timer inside
Timer in laundry room

Features

  • Simple push button timer for lights and fans
  • Energy and cost-saving
  • Powerful 10A switching capability and is suitable for a wide range of load types, including incandescent, inductive and fluorescent loads.
  • Time setting selection from 10 seconds to 15 hours
  • Highly accurate digital timing (±0.5%)
  • AS/NZS3100, AS/NZS3133 safety compliance

Features

  • Timer control:
    • Push button control
    • Configurable LED indicator function
    • Relay output
    • Remote input operation for multiway trigger

Specifications

Design

Product brand

Clipsal

Range of product

Series 2000

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element with full cover plate

[ue] rated operational voltage

220...240 V AC

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1308010EN

Circularity profile

ENVEOLI1308010EN

Others

Package 1 bare product quantity

1

Autonomy

10 s...15 h

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7 cm

Package 1 width

9.3 cm

Package 1 length

12 cm

Package 1 weight

178.7 g

Unit type of package 2

CAR

Number of units in package 2

20

Package 2 height

30 cm

Package 2 width

23 cm

Package 2 length

37 cm

Package 2 weight

4.16 kg
Show all specifications

Frequently Asked Questions

hide show

How does the three wire push button timer 31VETR3 or 2031VETR3 work?

The built in push button on the 31VETR3 or 2031VETR3 has the following functions:
• Pressing the button when the timer is passive will initiate timing and set the load, and indicator, to the active state according to the configuration switch settings.
• Pressing the button during timing will cancel timing and set the load, and indicator, to the passive state according to the configuration switch settings.
• To restart the timer when the load is already on, simply perform consecutive turn-on and turn-off functions.
For further information, please refer to the below link:
http://www.clipsal.com/Trade/Products/ProductDetail?catno=31VETR3
http://www.clipsal.com/Trade/Products/ProductDetail?catno=2031VETR3
https://download.schneider-electric.com/files?p_Doc_Ref=CLPDOC_W0001273&p_File_Ext=.PDF

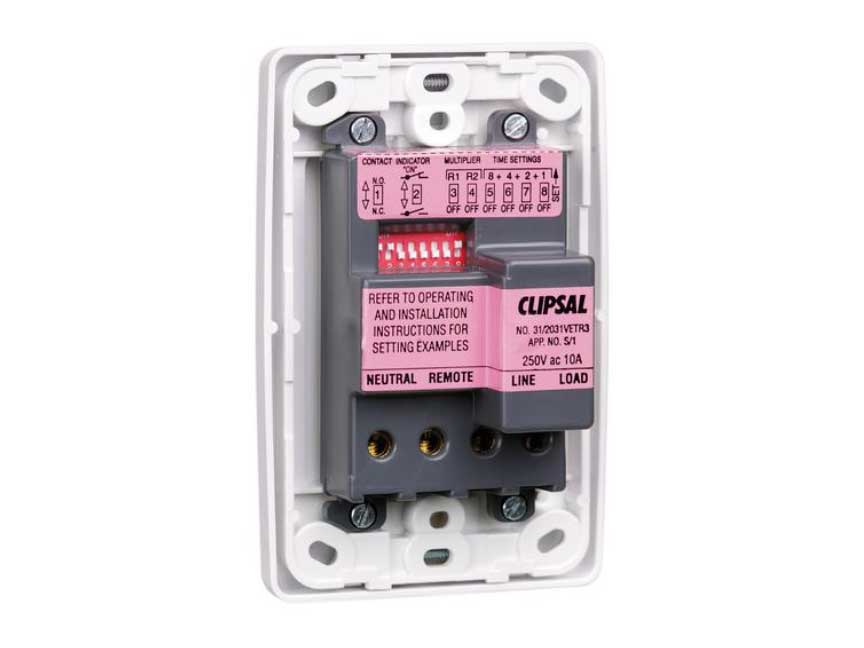

Image of 2031VETR3-WE timer
Office

Range

The contemporary styling and flexibility of the 2000 Series and C2000 range have made it Clipsal’s most popular range of switches and power points.

2000 Series and C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters. The extensive product range also includes dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
