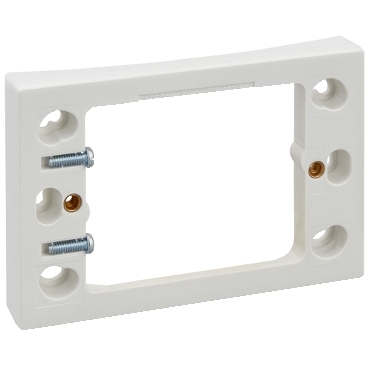

2000 Series Mounting Flange Horizontal Mount, Curved Surface, for 500mm Diameter Surface

Home ProductsPower Points and Switches2000 SeriesMounting Flange

2000 Series Mounting Flange Horizontal Mount, Curved Surface, for 500mm Diameter Surface | White Electric

Item Number: 2000MF500-WE

Fitting into the 2000 Series surround the round identification cap is easy to stamp, or to have customised. The cap can be pushed into place in the surround so you can see at a glance which switch or circuit you are working with.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all
Mounting Products
Mounting on Wall
Mounting Products
Mounting on Wall

Features

  • Ideal for installation in areas with tight wall cavities – improving aesthetics and replacing the need for mounting blocks
  • Clipsal mounting blocks give added safety to surface wiring installations entry
  • The accessory mounting screw holes have sealed ends and mounting screws supplied cannot pierce live cables
  • Manufactured in accordance with AS/NZS3100, AS/NZS3112 and AS/NZS3133

Features

  • All blocks are provided with ample cut-outs on all sides for convenient cable
  • The wall fixing mounting holes are elongated for ease of adjustment when squaring up
  • Most mounting holes have metal inserts for perfect thread form
  • Models are available for timber stud fixing, direct wall board mounting or direct fastening to brickwork before plastering
  • Allows installation of electrical accessories to comply with relevant wiring standards

Specifications

Design

Range of product

Series 2000

Product brand

Clipsal

Product or component type

flange mounting kit

Sustainable offer status

Green Premium product

Physical

Fixing center

84 mm

Depth

18 mm

Length

119 mm

Width

78 mm

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Shape

rectangular

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.8 cm

Package 1 width

7.7 cm

Package 1 length

11.8 cm

Package 1 weight

46 g
Show all specifications
Office

Range

The contemporary styling and flexibility of the 2000 Series and C2000 range have made it a popular range of switches and power points.

2000 Series and C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters.

The extensive product range also includes dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
