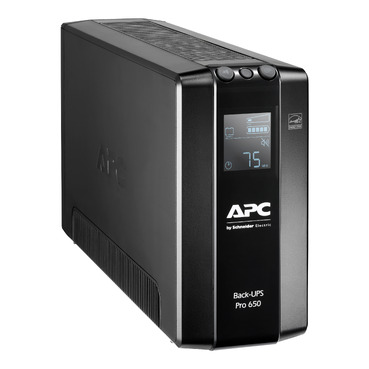

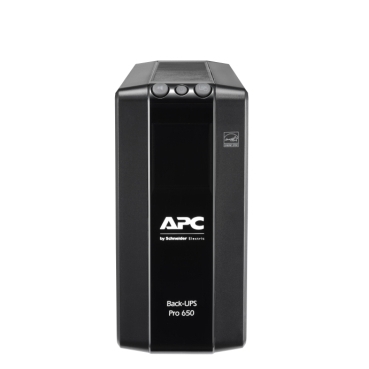

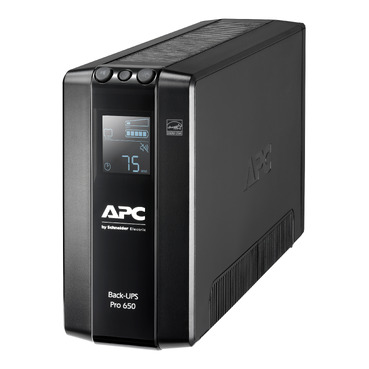

Back-UPS Pro APC Back-UPS Pro 650VA/390W, Tower, 230V, 6x IEC C13 outlets, AVR, LCD, User Replaceable Battery

Item Number: BR650MI

1 PCE 0

This product is part of the Back-UPS Pro range. This 650VA UPS has 6 total that provide UPS power backup and surge protection. It features a built-in AVR and a LCD interface with audible alarms. Its runtime at 100 Watts is 25 minutes. Its dimensions are 19 x 9.1 x 31 cm and 6.4 kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.

Where To Buy

Datasheet

Download

Product Dimensions

Width9.1 cm

Height19 cm

Depth31 cm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		731304346937	-

Specifications

Design

Product or component type

uninterruptible power supply (UPS)

Sustainable offer status

Green Premium product

Warranty

2 years repair or replace, 3 years repair or replace for European Union countries

Physical

Rated power in w

390 W

Provided equipment

user manual| USB cable

Height

19 cm

Width

9.1 cm

Depth

31 cm

Net weight

6.4 kg

Mounting mode

not rack-mountable

Product certifications

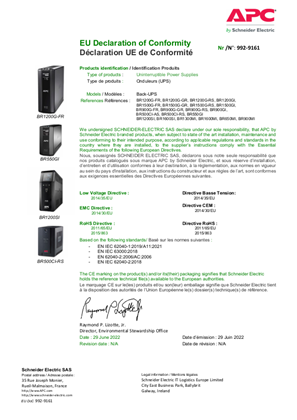

A-Tick|C-Tick|CE|EAC|RCM|TISI

Marking

GS Mark

Standards

EN/IEC 62040-1:2019/A11:2021|EN/IEC 62040-2:2006/AC:2006|EN/IEC 62040-2:2018

Ambient air temperature for operation

0...40 °C

Relative humidity

0...95 %

Ambient air temperature for storage

-15...45 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1712010_EN

Circularity profile

ENVEOLI1712010_EN

Others

Package 1 bare product quantity

Lead time

Usually in Stock

Main input voltage

230 V

Rated power in va

650 VA

Battery type

lead-acid battery

Usb compatible

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Input voltage limits

176...294 V

Switching current capacity

10 A

Graph display

Operating altitude

0...10000 ft

Storage relative humidity

0...95 %

Storage altitude

0...50000 ft

Acoustic level

45 dBA

Heat dissipation

13.3 Btu/h

Battery voltage

12 V

Battery capacity

7.0 Ah

Battery life

3...5 year(s)

Control panel

multifunction LCD status and control console

Alarm

alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

25.5 cm

Package 1 width

14.3 cm

Package 1 length

44 cm

Package 1 weight

7.4 kg

Scc14

10731304346934
