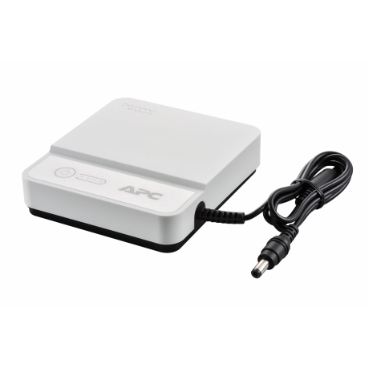

Back-UPS Connect APC Back-UPS Connect to protect internet routers, IP cameras and more

Back-UPS Connect APC Back-UPS Connect to protect internet routers, IP cameras and more

Item Number: CP12036LI

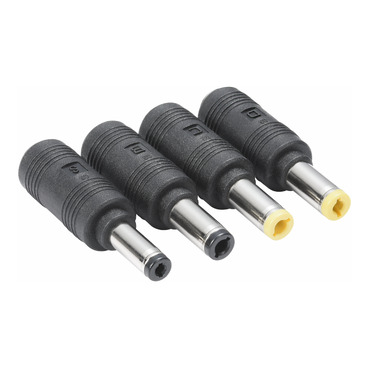

With APC Back-UPS Connect keep your network devices such as routers, smart home assistants, IP cameras connected and online during power outages. It is a compact UPS rated for 36W and 12Vdc input/output. Lithium-ion battery provides up to 4 hours of runtime for an average router to ensure reliable connectivity. The additional DC tips provided in the box ensure maximum compatibility with different brands of networking gear with 12V rating.

Datasheet

Product Dimensions

Width icon

Width99 mm

Height icon

Height25 mm

Depth icon

Depth109 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

uninterruptible power supply (UPS)

Warranty

24 months

Physical

Width

99 mm

Depth

109 mm

Net weight

300 g

Mounting mode

not rack-mountable

Height

25 mm

Product certifications

CE

Standards

CE|EN/IEC 61000-4-8|EN/IEC 61000-4-2|EN/IEC 62368-1

Ambient air temperature for operation

0...40 °C

Relative humidity

0...95 %

Ambient air temperature for storage

-10...50 °C

Ip degree of protection

< IP20

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Others

Commercial status history

SESA510585 | 2023-08-22 06:05 | From SPD Spread | From 06 to 08

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

ODM

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Lead time

Usually in Stock

Main input voltage

12 V DC

Battery type

Li-Ion (Lithium-Ion)

Output voltage

12 V

Operating altitude

0...10000 ft

Storage altitude

0...5000 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.300 cm

Package 1 width

11.500 cm

Package 1 length

16.300 cm

Package 1 weight

366.000 g

Unit type of package 2

S02

Number of units in package 2

10

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.900 kg

Scc14

10731304632396
