Clipsal Actassi, LAN Cable, 4 pair UTP Cat6A LAN cable, 305 metre reel

Home ProductsNetwork ConnectivityActassiLAN Cable

Clipsal Actassi, LAN Cable, 4 pair UTP Cat6A LAN cable, 305 metre reel Blue

Item Number: 2D4P6AIPV3R-BU

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Titanium

Product brand

Clipsal

Colour

external sheath: blue

Sustainable offer status

Green Premium product

Physical

Communication network category

6<sub>A</sub>

Awg gauge

AWG 23

Cable shielding type

UTP

Length

305 m

Ambient air temperature for operation

75 °C

Marking

colour coding

Product certifications

UL listed file E197794

Standards

ISO/IEC 11801|EIA/TIA-568|IEC 61156-5

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

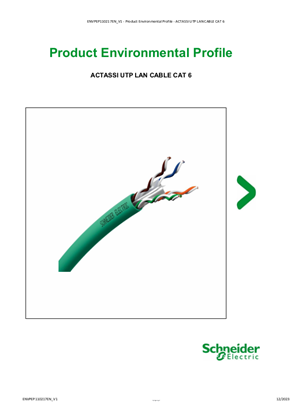

Environmental disclosure

ENVPEP110217EN

Circularity profile

N/A

Material

Material

conductor: bare copper

Others

Package 1 bare product quantity

1

Cable insulation material

PVC (polyvinyl chloride)

Diameter

0.59...0.59 mm (conductor)

External diameter

8.5 mm

Flame retardance

CM

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

77 g
Show all specifications

Frequently Asked Questions

hide show

How is the new design of Cat6A U/UTP cable terminated?

Connector termination is similar to typical "UTP" or unshielded cables. You can refer to the video here for more details.

Is bonding required for the internal foil of the 2D4P6AIPV3R-BU?

The foil is non-contiguous (meaning it is not and end-to-end connected foil or screen). As the cable is not a Shielded Cable,  bonding will have no effect and will not provide any earthing properties.

What are other benefits of the new design of Cat6A U/UTP cable?

In addition to the improved ‘Alien cross-talk’ performance, some other benefits are:
  • Smaller physical dimensions on cable external diameter compared to previous Clipsal Cat6A UTP cable, thus reduced space requirements for multiple cable runs.
  • New Cat6A UTP cable weight is 28% lighter than previous product
  • New Cat 6A UTP cable uses less raw material to manufacture,  resulting in reduced consumption of materials and resources.
  • Higher performance against heat rise in case of PoE (Power over Ethernet)

Why is there an internal foil on the new design of Cat6A cable, 2D4P6AIPV3R-BU?

The internal foil is designed to assist with immunity to external noise as defined as ‘Alien cross-talk’. “Alien cross-talk” has a predominant effect on the transmission at 10 Gbps speed. This foil design helps to provide full EMI protection (coupling attenuation (AC) > 55dB, Type II coupling attenuation. ANEXT and AFEXT are proven by design)
