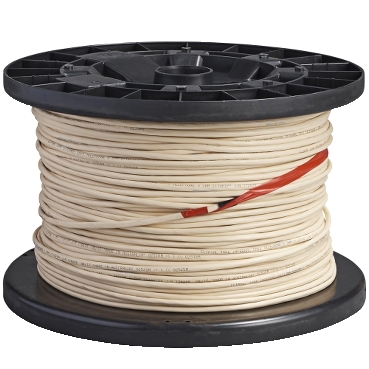

Clipsal Actassi, Internal Telephone Cable, 0.50mm Unscreened Plain PVC, 0.5, 10 Pair
Item Number: 2T10PIPV
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Actassi
Colour
external sheath: cream
Sustainable offer status
Green Premium product
Physical
Cable shielding type
UTP
Cable stiffness
solid class 1
Ambient air temperature for operation
-20...60 °C
Standards
AS/ACIF S008|AS/NZS 3080|ISO/IEC 11801
Reach free of svhc
Yes
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP110210EN
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Diameter
0.5 mm conductor:
Number of conductors
2
Cable insulation material
PE (polyethylene)|PVC (polyvinyl chloride)
External diameter
7.6 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.088 kg
