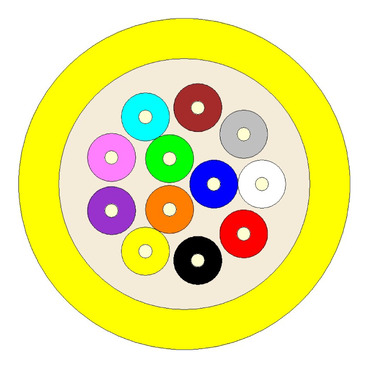

Actassi Fibre Cable OS2 9/125 µm, Tight Buffer 12 fibres, 500m
Item Number: VDIC92512TCL
Datasheet
Close
Specifications
Design
Range
Actassi
Product or component type
fibre optic cable single mode
Device application
communication
Physical
Ambient air temperature for storage
-10...60 °C
Environmental characteristic
flame retardant: |water resistant (longitudinally): |UV resistant:
Material
Material
PE (polyethylene): jacket
Others
Package 1 bare product quantity
1
Cable packaging
drum of 500 m
Maximum attenuation
0.4 dB / 1 km at 1310 nm|0.3 dB / 1 km at 1550 nm|0.3 dB / 1 km at 1625 nm
Fibre performance
OS2 9/125 µm
Optic fibre type
tight buffered
Number of optic fibre
12
Bending radius
10 x overall diameter static|20 x overall diameter dynamic
Refractive index group
1.467 at 1310 nm|1.468 at 1550 nm|1.468 at 1625 nm
Localisation on device
yellow
Cable length
500 m
Diameter
6.2 mm
Cable weight
33 kg / 1 km
Ambient air temperature for installation
0...50 °C
Standard
cable specification conforming to IEC 60794-2|fibre colour coding conforming to TIA/EIA-598-A|fibre performance conforming to IEC 60793-2-50 Type B1.3|cabling conforming to ISO/IEC 11801|cabling conforming to AS/CA S008|flame retardance conforming to IEC 60332-1|flame retardance conforming to IEC 60332-3 C|acidity of combustion gases conforming to IEC 60754-1|acidity of combustion gases conforming to IEC 60754-2|fibre performance conforming to ITU G.652.D|smoke generation conforming to IEC 61034
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
85 cm
Package 1 width
70 cm
Package 1 length
85 cm
Package 1 weight
10 kg
