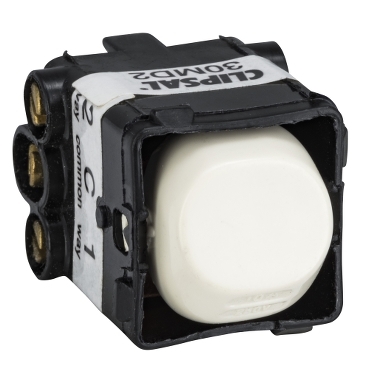

30 Series Switch Mechanism White Electric
Item Number: 30MD2-WE
Switch mechanism. Double-pole, double throw switch. Two way switching. 30 Series mechanism. Suitable for Clipsal C2000. Colour: White Electric Rated current: 10A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Datasheet
For 30MD2-WE
Specifications
Design
Range of product
- Series 30
- Standard Series
Product brand
Physical
Device presentation
Number of poles
Device mounting
Number of rocker
Local signalling
[ue] rated operational voltage
Rated current
Load type
- fluorescent 100 W 10 A
- LEDi lamp 100 W 10 A
Marking
Actuator
Switch function
Reach regulation
Eu rohs directive
Mercury free
China rohs regulation
Rohs exemption information
Environmental disclosure
Circularity profile
Documents & downloads
hide show-
All
-
Product Brochures
-
Certificates (MSDS)
30 Series Mechanisms, A tradition of great design continues
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Clipsal, 30MD2 double pole two-way switch, Certificate, RCM, ULNZ LTD
VERSION
1.1
DATE
20 Dec 2024
REVISION
1.1
CA_GMA-507677-EA--30MD2_56SW2102_56SW2102LE Wall Switch
VERSION
1.0
DATE
23 Feb 2024
REVISION
1.0
Frequently Asked Questions
hide showThe part number is 30MD2.
Some of the key features are:
- 6 terminal bores of 4.1 mm diameter accommodate 4 x 1.5 sq mm or 3 x 2.5 sq mm cable
- Motor rating is 75
For further information please visit http://www.clipsal.com/Trade/Products/ProductDetail?catno=30MD2
