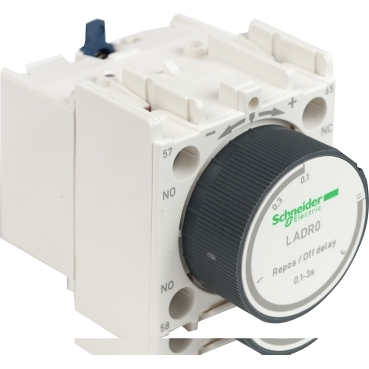

TeSys D, Time delay Auxiliary Contact Block, TeSys Deca, 1NO + 1NC, off delay 0.3-3s, front, screw clamp terminals
Item Number: LADR0
TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay setting range 0.3-3s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Specifications
Design
Range
Range of product
Product or component type
Sustainable offer status
Physical
Range compatibility
[ue] rated operational voltage
[ie] rated operational current
Standards
Product certifications
Protection type
Mechanical durability
Insulation resistance
Connections - terminals
Height
Width
Depth
Environmental characteristic
Ip degree of protection
Ambient air temperature for storage
Ambient air temperature for operation
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Others
Life cycle assessment data
Substance regulation data deliverable
Package 1 bare product quantity
Product name
Mounting location
Pole contact composition
Auxiliary contacts operation
Timer type
Time delay range
[ui] rated insulation voltage
[ith] conventional free air thermal current
Irms rated making capacity
Permissible short-time rating
Minimum switching current
Minimum switching voltage
Non-overlap time
Tightening torque
Shielding continuity terminal
Protective treatment
Operating altitude
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Weee
Pvc free
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
Environmental Disclosure
-
Installation Instruction
-
Technical Drawing
-
Certificates (MSDS)
-
Declaration of Conformity
-
eTechPub
TeSys - Catalog 2024 - Innovative and connected solutions for motor starters
VERSION
15.0
DATE
15 Sep 2024
REVISION
15.0
Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters
VERSION
1.2
DATE
28 Aug 2024
REVISION
1.2
TeSys catalogue - 2020 - chapter B9 high power contactors TeSys F,V, FG, CR1F
VERSION
8.0
DATE
04 Mar 2024
REVISION
8.0
LC1D 9 to 38 A AC/DC contactors with screw clamp terminals - Instruction Sheet
VERSION
4.1
DATE
14 Jun 2024
REVISION
4.1
T02EN13, T02FN13, T02GN13, T02HN13, T02JN13 Size 3 to 7 NEMA Rated Contactors Installation Instructions
VERSION
1.0
DATE
01 Mar 2024
REVISION
1.0

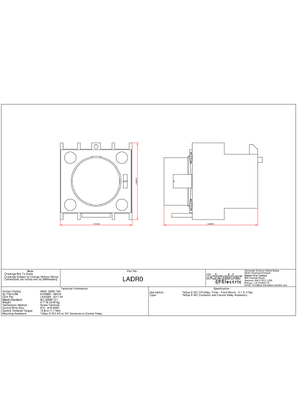

LADR0_2DSalesDrawing_PDF
