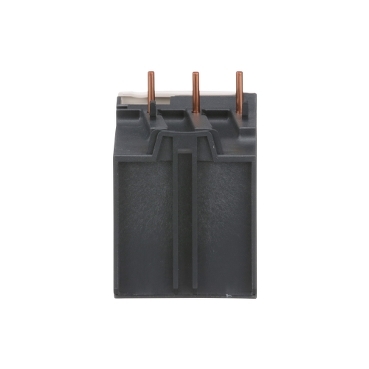

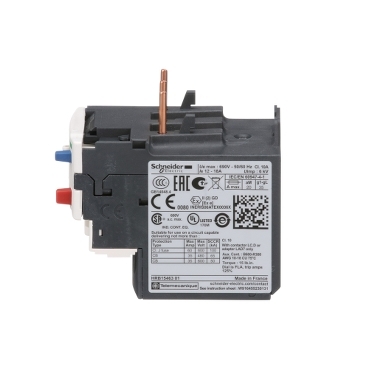

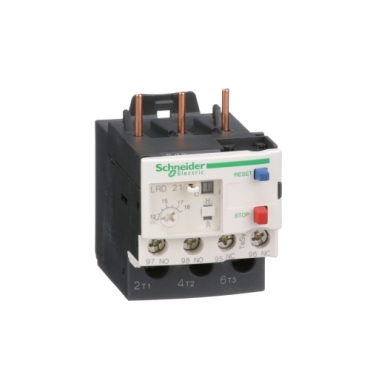

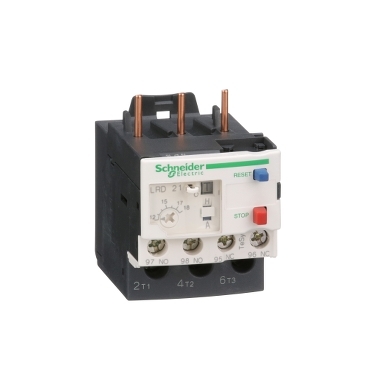

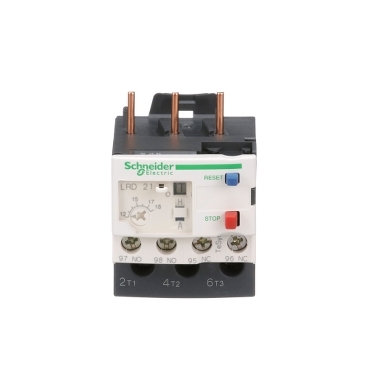

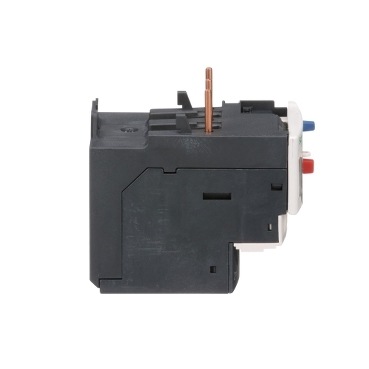

TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 12 to 18A, 1NO+1NC, class 10A, screw clamp

Home ProductsIndustrialTeSysThermal overload relay

TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 12 to 18A, 1NO+1NC, class 10A, screw clamp

Item Number: LRD21

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width45 mm

Height icon

Height66 mm

Depth icon

Depth70 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys|TeSys Deca

Product or component type

differential thermal overload relay

Product compatibility

LC1D32|LC1D18|LC1D25|LC1D38

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Mounting support

plate, with specific accessories|rail, with specific accessories|under contactor

[ue] rated operational voltage

690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Control type

red push-button: stop|blue push-button: reset

Connections - terminals

control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end|control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end|control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid|power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end|power circuit: screw clamp terminals 1 cable(s) 1-4 mm² flexible with cable end|power circuit: screw clamp terminals 1 cable(s) 1-6 mm² solid

Height

66 mm

Width

45 mm

Depth

70 mm

Net weight

0.124 kg

Climatic withstand

conforming to IACS E10

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20...60 °C without derating conforming to IEC 60947...4-1

Ambient air temperature for storage

-60...70 °C

Standards

EN/IEC 60947-4-1|EN/IEC 60947-5-1|UL 60947-4-1|UL 60947-5-1|CSA C22.2 No 60947-4-1|CSA C22.2 No 60947-5-1|GB/T 14048.4|GB/T 14048.5|EN 50495

Product certifications

IEC|UL|CSA|CCC|EAC|BV|RINA|DNV-GL|LROS (Lloyds register of shipping)|ATEX INERIS|UKCA

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP080206EN

Circularity profile

ENVEOLI0802006

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Product name

TeSys LRD|TeSys Deca

Device short name

LRD

Relay application

motor protection

Network type

AC|DC

Thermal overload class

class 10A conforming to IEC 60947-4-1

Thermal protection adjustment range

12...18 A

[ui] rated insulation voltage

power circuit: 600 V conforming to CSA|power circuit: 600 V conforming to UL|power circuit: 690 V conforming to IEC 60947-4-1

Network frequency

0...400 Hz

Tripping threshold

1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Auxiliary contact composition

1 NO + 1 NC

[ith] conventional free air thermal current

5 A for signalling circuit

Permissible current

1.5 A at 240 V AC-15 for signalling circuit|0.1 A at 250 V DC-13 for signalling circuit

Associated fuse rating

4 A gG for signalling circuit|4 A BS for signalling circuit

[uimp] rated impulse withstand voltage

6 kV

Phase failure sensitivity

tripping current 130 % of Ir on two phase, the last one at 0

Temperature compensation

-20...60 °C

Tightening torque

control circuit: 1.7 N.m - on screw clamp terminals|power circuit: 2.5 N.m - on screw clamp terminals

Compatibility code

LRD

Flame retardance

V1 conforming to UL 94

Mechanical robustness

vibrations: 6 Gn conforming to IEC 60068-2-6|shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

Dielectric strength

1.89 kV at 50 Hz conforming to IEC 60947-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.000 cm

Package 1 width

7.800 cm

Package 1 length

8.800 cm

Package 1 weight

147.000 g

Unit type of package 2

S02

Number of units in package 2

24

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.842 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
