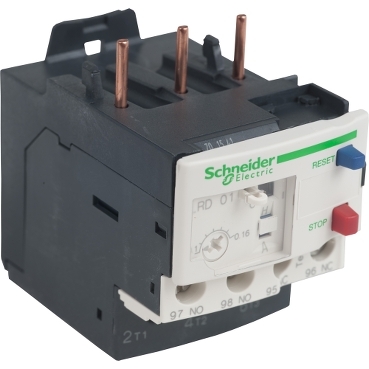

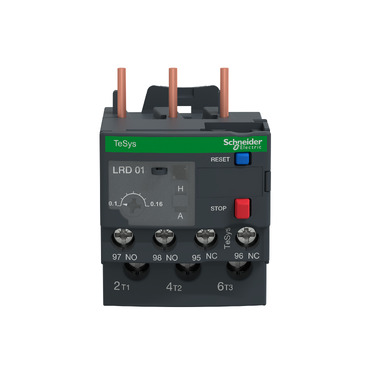

TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 0.1 to 0.16A, 1NO+1NC, class 10A, screw clamp

Home ProductsIndustrialTeSysThermal overload relay

TeSys LR.D, Thermal overload relay, TeSys Deca, 690VAC, 0.1 to 0.16A, 1NO+1NC, class 10A, screw clamp

Item Number: LRD01

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width45 mm

Height icon

Height66 mm

Depth icon

Depth70 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys|TeSys Deca

Product or component type

differential thermal overload relay

Product compatibility

LC1D25|LC1D09|LC1D12|LC1D18|LC1D38|LC1D32

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Mounting support

plate, with specific accessories|rail, with specific accessories|under contactor

[ue] rated operational voltage

690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1

Control type

red push-button: stop|blue push-button: reset

Connections - terminals

control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible without cable end|control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² flexible with cable end|control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm² solid without cable end|power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm² flexible without cable end|power circuit: screw clamp terminals 1 cable(s) 1-4 mm² flexible with cable end|power circuit: screw clamp terminals 1 cable(s) 1-6 mm² solid without cable end

Height

66 mm

Width

45 mm

Depth

70 mm

Net weight

0.124 kg

Climatic withstand

conforming to IACS E10

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20...60 °C without derating conforming to IEC 60947...4-1

Ambient air temperature for storage

-60...70 °C

Standards

EN/IEC 60947-4-1|EN/IEC 60947-5-1|UL 60947-4-1|UL 60947-5-1|CSA C22.2 No 60947-4-1|CSA C22.2 No 60947-5-1|GB/T 14048.4|GB/T 14048.5|EN 50495

Product certifications

IEC|UL|CSA|CCC|EAC|BV|RINA|DNV-GL|LROS (Lloyds register of shipping)|ATEX INERIS|UKCA

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP080206EN

Circularity profile

ENVEOLI0802006

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Package 2 bare product quantity

24

Package 3 bare product quantity

384

Product name

TeSys LRD|TeSys Deca

Device short name

LRD

Relay application

motor protection

Network type

DC|AC

Thermal overload class

class 10A conforming to IEC 60947-4-1

Thermal protection adjustment range

0.1...0.16 A

[ui] rated insulation voltage

power circuit: 600 V conforming to CSA|power circuit: 600 V conforming to UL|power circuit: 690 V conforming to IEC 60947-4-1

Network frequency

0...400 Hz

Tripping threshold

1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

Auxiliary contact composition

1 NO + 1 NC

[ith] conventional free air thermal current

5 A for signalling circuit

Permissible current

3 A at 120 V AC-15 for signalling circuit|0.22 A at 125 V DC-13 for signalling circuit

Associated fuse rating

4 A gG for signalling circuit|4 A BS for signalling circuit

[uimp] rated impulse withstand voltage

6 kV

Phase failure sensitivity

tripping current 130 % of Ir on two phase, the last one at 0

Temperature compensation

-20...60 °C

Tightening torque

control circuit: 1.7 N.m - on screw clamp terminals|power circuit: 1.7 N.m - on screw clamp terminals

Compatibility code

LRD

Flame retardance

V1 conforming to UL 94

Mechanical robustness

vibrations: 6 Gn conforming to IEC 60068-2-6|shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

Dielectric strength

1.89 kV at 50 Hz conforming to IEC 60947-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.000 cm

Package 1 width

7.800 cm

Package 1 length

9.000 cm

Package 1 weight

136.000 g

Unit type of package 2

S02

Number of units in package 2

24

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.589 kg

Unit type of package 3

P06

Number of units in package 3

384

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

65.424 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Operating Manuals

  • Certificates (MSDS)

  • Declaration of Conformity

TeSys LR.D - TeSys_THERMAL RELAY - 3D CAD
ZIP

TeSys LR.D - TeSys_THERMAL RELAY - 3D CAD

VERSION

1.0

DATE

21 Feb 2022

REVISION

1.0

DOWNLOAD (ZIP) 3.3 MB
TeSys - Catalog 2024 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2024 - Innovative and connected solutions for motor starters

VERSION

15.0

DATE

15 Sep 2024

REVISION

15.0

DOWNLOAD (ZIP) 76.8 MB
Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters
ZIP

Digest Catalog 16: NEMA and Definite Purpose Contactors and Starters

VERSION

1.2

DATE

28 Aug 2024

REVISION

1.2

DOWNLOAD (ZIP) 8.7 MB
TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3
ZIP

TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3

VERSION

9.0

DATE

21 Feb 2024

REVISION

9.0

DOWNLOAD (ZIP) 5.6 MB
TeSys contactors for railway applications- Catalogue 2022
ZIP

TeSys contactors for railway applications- Catalogue 2022

VERSION

4.0

DATE

14 Mar 2023

REVISION

4.0

DOWNLOAD (ZIP) 8.1 MB
TeSys Deca thermal overload 1.0-1.6A CL10A
ZIP

TeSys Deca thermal overload 1.0-1.6A CL10A

VERSION

2.0

DATE

07 Aug 2024

REVISION

2.0

DOWNLOAD (ZIP) 234.4 KB
TeSys Deca thermal overload 1.0-1.6A CL10A
ZIP

TeSys Deca thermal overload 1.0-1.6A CL10A

VERSION

3.0

DATE

07 Aug 2024

REVISION

3.0

DOWNLOAD (ZIP) 344.8 KB
TeSys - LRD01-35, LRD01C-35C - Instruction Sheet
ZIP

TeSys - LRD01-35, LRD01C-35C - Instruction Sheet

VERSION

1.0

DATE

06 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 461.8 KB
LRD - Instruction Sheet
ZIP

LRD - Instruction Sheet

VERSION

1.0

DATE

15 Jul 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
LRD, LR3D - Thermal overload relay up to 15 kW (instruction sheet printed on the box)_Instruction sheet
ZIP

LRD, LR3D - Thermal overload relay up to 15 kW (instruction sheet printed on the box)_Instruction sheet

VERSION

3.4

DATE

15 Jul 2022

REVISION

3.4

DOWNLOAD (ZIP) 669.4 KB
TeSys Protect - Deca Overload Relays (0.1 to 38 A) - Use in Explosive Atmospheres
ZIP

TeSys Protect - Deca Overload Relays (0.1 to 38 A) - Use in Explosive Atmospheres

VERSION

3.0

DATE

04 Dec 2023

REVISION

3.0

DOWNLOAD (ZIP) 1.2 MB
CSA Certificate_ TeSys D_LRD01-35&LR3D01-35&LRD04-32L&LR3D04-32L
ZIP

CSA Certificate_ TeSys D_LRD01-35&LR3D01-35&LRD04-32L&LR3D04-32L

VERSION

1.0

DATE

15 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 205.1 KB
DNV Type Approval Certificate_TeSys D_LRD01-35_LRD33-43_LAD7
ZIP

DNV Type Approval Certificate_TeSys D_LRD01-35_LRD33-43_LAD7

VERSION

1.0

DATE

14 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 304.8 KB
BV Type approval certificate _TeSys Deca_ LRD01-35_LR3D01-35
ZIP

BV Type approval certificate _TeSys Deca_ LRD01-35_LR3D01-35

VERSION

1.0

DATE

22 Apr 2024

REVISION

1.0

DOWNLOAD (ZIP) 574.1 KB
UL_Certificate_TeSys D_LRD01-35&LR3D01-35
ZIP

UL_Certificate_TeSys D_LRD01-35&LR3D01-35

VERSION

1.0

DATE

15 Dec 2022

REVISION

1.0

DOWNLOAD (ZIP) 807.4 KB
ATEX_Certificate_TeSys D_LRD01-35_LRD04L-32L
ZIP

ATEX_Certificate_TeSys D_LRD01-35_LRD04L-32L

VERSION

1.0

DATE

12 Dec 2022

REVISION

1.0

DOWNLOAD (ZIP) 254.6 KB
CB Certificate TeSys D - LRD01-35&LR3D01-35_Bangpoo
ZIP

CB Certificate TeSys D - LRD01-35&LR3D01-35_Bangpoo

VERSION

1.0

DATE

12 Dec 2022

REVISION

1.0

DOWNLOAD (ZIP) 337.3 KB
CB Certificate TeSys D - LRD01-35&LR3D01-35_Dijon
ZIP

CB Certificate TeSys D - LRD01-35&LR3D01-35_Dijon

VERSION

1.0

DATE

12 Dec 2022

REVISION

1.0

DOWNLOAD (ZIP) 336.9 KB
Marine_Certificate_TeSys D_LRD01-35&LR3D01-35
ZIP

Marine_Certificate_TeSys D_LRD01-35&LR3D01-35

VERSION

1.0

DATE

13 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 518.5 KB
RINA Type Approval Certificate_TeSys D_LRD01-35&LR3D01-35
ZIP

RINA Type Approval Certificate_TeSys D_LRD01-35&LR3D01-35

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 305.3 KB
ABS Type Approval Certificate_TeSys D_LRD01-35&LR3D01-35
ZIP

ABS Type Approval Certificate_TeSys D_LRD01-35&LR3D01-35

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.7 MB
EU Declaration SC16031603D TeSys LRD/LR3D
ZIP

EU Declaration SC16031603D TeSys LRD/LR3D

VERSION

1.0

DATE

16 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 463.9 KB
UKCA Declaration TeSysD_LRD01-35_LRD04L-32L_LAD7B106
ZIP

UKCA Declaration TeSysD_LRD01-35_LRD04L-32L_LAD7B106

VERSION

1.0

DATE

16 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 448.7 KB

Frequently Asked Questions

hide show

What is the difference between LAD703 and LA7D03

Issue:
Identifying differences between two similar part numbers

Product Line:
IEC contactors and starters

Environment:
Products sold and used in the United States

Cause:
Identifying differences between two similar part numbers

Resolution:
Both will remotely stop (trip) or electrically reset the overload, however;
LAD703 is used on Tesys overload LRD01 through LRD35 and LR3D01 to LR3D35.
LA7D03 is used on all other LR*D overload relays other than LRD01 to LRD35 and LR3D01 to LR3D35.*

*LR9D01-LR9D32 electronic overload relays do not currently have a remote reset module accessory


What is the difference between the LA7D305 and LAD7305, remote control reset mechanism by flexible cable?

Issue:
 LA7D305 and LAD7305 Difference

Product Line:
IEC contactors and starters

Environment:
LRD Accessories

Cause:
Choosing the correct part number

Resolution:
LAD7305 is for use on LRD01 to LRD35 , LR3D01 to LR3D35, and LRD313 to LRD365.
LA7D305 is for use on all other relays (except LRD01 to LRD35 and LR3D01 to LR3D35).
