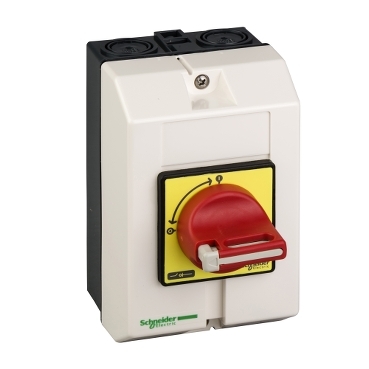

TeSys Mini-Vario, TeSys Vario enclosed, emergency switch disconnector, 32A, IP65

Home ProductsIndustrialTeSysTeSys Vario enclosed

TeSys Mini-Vario, TeSys Vario enclosed, emergency switch disconnector, 32A, IP65

Item Number: VCF2GE

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width90 mm

Height icon

Height146 mm

Depth icon

Depth131 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

enclosed emergency stop switch disconnector

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Control type

rotary handle

Marking

0 - 1

[ue] rated operational voltage

690 V AC

[ie] rated operational current

29 A (AC-23A) at 400 V

Mechanical durability

100000 cycles

Electrical durability

100000 cycles AC-21|30000 cycles DC-1...5

Environmental characteristic

standard environment

Connections - terminals

screw clamp terminals10-10 mm² - solid|screw clamp terminals6-6 mm² - flexible - with cable end

Height

146 mm

Width

90 mm

Depth

131 mm

Net weight

0.5 kg

Standards

IEC 60204|IEC 60947-4-1

Ip degree of protection

IP65 conforming to IEC 60529

Ambient air temperature for operation

-20...50 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2211019

Circularity profile

N/A

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Package 2 bare product quantity

7

Package 3 bare product quantity

56

Product name

TeSys VARIO

Device short name

VCF

Performance level

high performance

Poles description

3P

Handle colour

red

Handle front plate colour

yellow

Rotary handle padlocking

1 to 3 padlocks 4-8 mm

[uimp] rated impulse withstand voltage

8 kV

[ithe] conventional enclosed thermal current

32 A

Rated operational power in w

15 kW at 400 V (AC-23)|11 kW at 400 V (AC-3)

Intermittent duty class

30

Making capacity

400 A at 400 V AC-21A|400 A at 400 V AC-22A|400 A at 400 V AC-23A

[icm] rated short-circuit making capacity

1 kA at 400 V at Ipeak

[icw] rated short-time withstand current

480 A at 400 V duration: 1 s

Rated conditional short-circuit current

10 kA at 400 V - associated fuse 50 A aM|10 kA at 400 V - associated fuse 50 A gG

Breaking capacity

320 A at 400 V (AC-21A)|320 A at 400 V (AC-22A)|320 A at 400 V (AC-23A)

Suitability for isolation

yes

Tightening torque

2.1...2.1 N.m - on screw clamp terminals

Fire resistance

960 °C conforming to IEC 60595-2-1

Base dimension

60 x 60 mm

Compatibility code

enclosed switch disconnector

Protective treatment

TC

Mechanical robustness

vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6|shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.300 cm

Package 1 width

14.500 cm

Package 1 length

15.800 cm

Package 1 weight

473.000 g

Unit type of package 2

S03

Number of units in package 2

7

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.777 kg

Unit type of package 3

P06

Number of units in package 3

56

Package 3 height

80.000 cm

Package 3 width

80.000 cm

Package 3 length

60.000 cm

Package 3 weight

40.244 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
