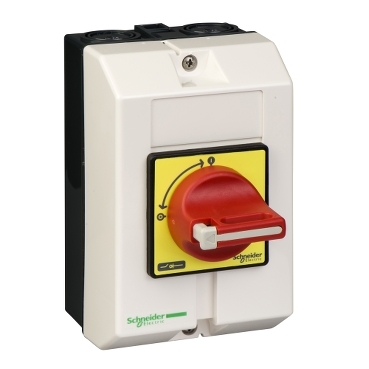

TeSys Mini-Vario TeSys Vario enclosed

Item Number: VCF0GE

1 PCE 0

Contact your Wholesaler for pricing

Where To Buy

Datasheet

For VCF0GE

Download

Product Dimensions

Width90 mm

Height146 mm

Depth131 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3389110194081	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3389110194081	-

Specifications

Design

Range

TeSys

Product or component type

enclosed emergency stop switch disconnector

Warranty

18 months

Physical

Control type

rotary handle

Marking

0 - 1

[ue] rated operational voltage

690 V AC

[ie] rated operational current

14.5 A (AC-23A) at 400 V

Mechanical durability

100000 cycles

Electrical durability

100000 cycles AC-21
30000 cycles DC-1...5

Environmental characteristic

standard environment

Connections - terminals

screw clamp terminals10-10 mm² - solid
screw clamp terminals6-6 mm² - flexible - with cable end

Height

146 mm

Width

90 mm

Depth

131 mm

Net weight

0.5 kg

Standards

IEC 60204
IEC 60947-4-1

Ip degree of protection

IP65 conforming to IEC 60529

Ambient air temperature for operation

-20...50 °C

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2211019

Circularity profile

N/A

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

Product name

TeSys VARIO

Device short name

VCF

Performance level

high performance

Poles description

Handle colour

red

Handle front plate colour

yellow

Rotary handle padlocking

1 to 3 padlocks 4-8 mm

[uimp] rated impulse withstand voltage

8 kV

[ithe] conventional enclosed thermal current

20 A

Rated operational power in w

7.5 kW at 400 V (AC-23)
5.5 kW at 400 V (AC-3)

Intermittent duty class

Making capacity

250 A at 400 V AC-21A
250 A at 400 V AC-22A
250 A at 400 V AC-23A

[icm] rated short-circuit making capacity

1 kA at 400 V at Ipeak

[icw] rated short-time withstand current

300 A at 400 V duration: 1 s

Rated conditional short-circuit current

10 kA at 400 V - associated fuse 25 A aM
10 kA at 400 V - associated fuse 25 A gG

Breaking capacity

200 A at 400 V (AC-21A)
200 A at 400 V (AC-22A)
200 A at 400 V (AC-23A)

Suitability for isolation

yes

Tightening torque

2.1...2.1 N.m - on screw clamp terminals

Fire resistance

960 °C conforming to IEC 60595-2-1

Base dimension

60 x 60 mm

Compatibility code

enclosed switch disconnector

Protective treatment

Mechanical robustness

vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6
shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

11.000 cm

Package 1 width

14.300 cm

Package 1 length

15.800 cm

Package 1 weight

479.000 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

3.756 kg

Unit type of package 3

P06

Number of units in package 3

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

43.772 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

9ea58720-3cf9-4883-9af8-9d64d3981af2

Green premium status for reporting

Green Premium product

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

28.728165416311455

Global warming ; total life cycle

29 kg CO2 eq.
