TeSys H, Reversing ultra compact starter, TeSys Hybrid, 3P, 500VAC, 0.75kW at 400V, 24VDC

Home ProductsIndustrialTeSysReversing ultra compact starter

TeSys H, Reversing ultra compact starter, TeSys Hybrid, 3P, 500VAC, 0.75kW at 400V, 24VDC

Item Number: LZ2H2X4BD

Where To Buy

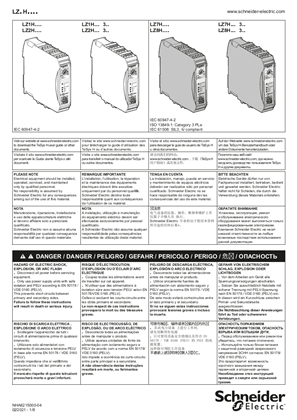

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width22.5 mm

Height icon

Height99 mm

Depth icon

Depth114.5 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

reversing ultra-compact starter

Physical

[ue] rated operational voltage

500 V AC

[ie] rated operational current

2.4 A at 500 V AC-51|2.4 A at 500 V AC-53A|2.4 A at 500 V AC-51 mounting side by side|2.4 A at 500 V AC-53A mounting side by side

Electrical durability

30 Mcycles

Mounting mode

by clips

Mounting support

DIN rail

Connections - terminals

screw clamp terminals 1 cable(s) 0.2-2.5 mm² - rigid|screw clamp terminals 1 cable(s) 0.25-2.5 mm² - flexible - with cable end|screw clamp terminals 1 cable(s) 0.2-2.5 mm² - flexible - without cable end

Standards

UL 60947-4-1|IEC 60947-4-2

Width

22.5 mm

Height

99 mm

Depth

114.5 mm

Net weight

212 g

Ip degree of protection

IP20

Ambient air temperature for operation

-25...70 °C without derating

Ambient air temperature for storage

-40...80 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

California proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Product name

TeSys Hybrid

Device short name

LZ2H

Motor starter type

direct on line

Poles description

3P

Thermal protection adjustment range

0.18...2.4 A

Motor power kw

0.37 kW at 220 V AC 0.65 |0.37 kW at 230 V AC 0.65 |0.75 kW at 380 V AC 0.65 |0.75 kW at 400 V AC 0.65 |0.75 kW at 415 V AC 0.65 |0.75 kW at 440 V AC 0.65 |1.1 kW at 500 V AC 0.65

Motor power hp

0.5 hp at 200 V AC|0.5 hp at 230 V AC|1 hp at 460 V AC

[uc] control circuit voltage

24 V DC

Thermal overload class

class 10A conforming to IEC 60947-4-2

Auxiliary contact composition

1 C/O fault signalling

Control circuit voltage limits

19.2...30 V DC

Current consumption

<= 40 mA at 24 V DC

Reset

manual|automatic reset|electrical reset

Maximum operating rate

120 cyc/mn AC-51 50 % ON|6 cyc/mn AC-53A 50 % ON

Tightening torque

0.5...0.6 N.m flat Ø 2.5 mm screwdriver 3 mm

Certifications

cULus|CE

[ui] rated insulation voltage

500 V AC 50/60 Hz

[uimp] rated impulse withstand voltage

6 kV

Pollution degree

2

Protective treatment

TC

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.6 cm

Package 1 width

11.7 cm

Package 1 length

11.9 cm

Package 1 weight

264.0 g

Unit type of package 2

S01

Number of units in package 2

10

Package 2 height

15.0 cm

Package 2 width

15.0 cm

Package 2 length

40.0 cm

Package 2 weight

2.825 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
