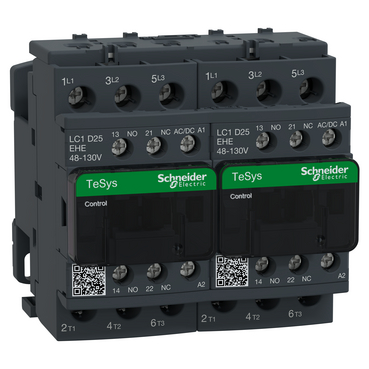

Tesys - TESYS D REVERSING CONTACTOR-3P-AC3- <= 4 - Image

Home ProductsIndustrialTeSysReversing Contactor

TeSys D, Reversing Contactor, TeSys Deca, 3P(3 NO), AC-3, 0 to 440V, 25A, 48 to 130VAC/DC coil

Item Number: LC2D25EHE

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width90 mm

Height85 mm

Depth92 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480988004	-

Specifications

Design

Range of product

TeSys Deca

Range

TeSys|TeSys Deca

Product or component type

reversing contactor

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Device presentation

preassembled with reversing power busbar

[ue] rated operational voltage

power circuit: <= 690 V AC 25...400 Hz

[ie] rated operational current

40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit|25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit|25 A (at <60 °C) at <= 440 V AC AC-3e for power circuit

Electrical durability

2 Mcycles 21 A AC-3 at Ue <= 440 V|0.9 Mcycles 40 A AC-1 at Ue <= 440 V|2 Mcycles 21 A AC-3e at Ue <= 440 V

Mounting support

rail|plate

Standards

EN/IEC 60947-4-1|EN/IEC 60947-5-1|UL 60947-4-1|CSA C22.2 No 60947-4-1|IEC 60335-1

Product certifications

CCC|CSA|EAC|UL|KC|DNV-GL|LROS (Lloyds register of shipping)|UKCA

Connections - terminals

control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end|control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end|control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end|control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end|control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid|control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid|power circuit: screw clamp terminals 1 cable(s) 2.5-10 mm²flexible without cable end|power circuit: screw clamp terminals 2 cable(s) 2.5-10 mm²flexible without cable end|power circuit: screw clamp terminals 1 cable(s) 1-10 mm²flexible with cable end|power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm²flexible with cable end|power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm²solid|power circuit: screw clamp terminals 2 cable(s) 2.5-10 mm²solid

Mechanical durability

15 Mcycles

Insulation resistance

> 10 MOhm for signalling circuit

Ip degree of protection

IP20 front face conforming to IEC 60529

Climatic withstand

conforming to IACS E10| conforming to IEC 60947-1 Annex Q category D

Ambient air temperature for operation

-40...60 °C|60...70 °C with derating

Ambient air temperature for storage

-60...80 °C

Height

85 mm

Width

90 mm

Depth

92 mm

Net weight

0.913 kg

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1609001EN

Circularity profile

ENVEOLI1609001EN

Others

Package 1 bare product quantity

Product name

Tesys Deca green|TeSys Deca

Device short name

LC2D

Contactor application

motor control|resistive load

Utilisation category

AC-1|AC-3|AC-3e

Poles description

Pole contact composition

3 NO

Motor power kw

Motor power hp

2 hp at 115 V AC 60 Hz for 1 phase motors|3 hp at 230/240 V AC 60 Hz for 1 phase motors|7.5 hp at 200/208 V AC 60 Hz for 3 phases motors|7.5 hp at 230/240 V AC 60 Hz for 3 phases motors|15 hp at 460/480 V AC 60 Hz for 3 phases motors|20 hp at 575/600 V AC 60 Hz for 3 phases motors

Control circuit type

AC at 50/60 Hz AC/DC electronic|DC AC/DC electronic

[uc] control circuit voltage

48...130 V AC 50/60 Hz|48...130 V DC

Auxiliary contact composition

1 NO + 1 NC

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947

Overvoltage category

III

[ith] conventional free air thermal current

10 A (at 60 °C) for signalling circuit|40 A (at 60 °C) for power circuit

Irms rated making capacity

140 A AC for signalling circuit conforming to IEC 60947-5-1|250 A DC for signalling circuit conforming to IEC 60947-5-1|450 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

450 A at 440 V for power circuit conforming to IEC 60947

[icw] rated short-time withstand current

Associated fuse rating

10 A gG for signalling circuit conforming to IEC 60947-5-1|63 A gG at <= 690 V coordination type 1 for power circuit|40 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

2 mOhm - Ith 40 A 50 Hz for power circuit

[ui] rated insulation voltage

power circuit: 690 V conforming to IEC 60947-4-1|signalling circuit: 690 V conforming to IEC 60947-1

Power dissipation per pole

3.2 W AC-1|1.25 W AC-3|1.25 W AC-3e

Protective cover

with

Interlocking type

mechanical

Tightening torque

control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm|control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2|power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm|power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2|power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2|control circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

Operating time

45...55 ms closing|20...90 ms opening

Safety reliability level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1|B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Maximum operating rate

3600 cyc/h 60 °C

Coil technology

built-in bidirectional peak limiting

Control circuit voltage limits

<= 0.1 Uc (-40-70 °C):drop-out AC/DC|0.85...1.1 Uc (-40-60 °C):operational AC/DC|1...1.1 Uc (60-70 °C):operational AC/DC

Inrush power in va

25 VA 50/60 Hz (at 20 °C)

Inrush power in w

24 W at 20 °C

Hold-in power consumption in va

1.3...1.3 VA (at 20 °C) 50/60 Hz

Hold-in power consumption in w

0.8...0.8 W at 20 °C

Heat dissipation

0.8...0.8 W at 50/60 Hz

Auxiliary contacts type

type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1| type mirror contact 1 NC conforming to IEC 60947-4-1

Signalling circuit frequency

25...400 Hz

Minimum switching current

5 mA for signalling circuit

Minimum switching voltage

17 V for signalling circuit

Non-overlap time

1.5 ms on de-energisation between NC and NO contact|1.5 ms on energisation between NC and NO contact

Compatibility code

LC2D

Protective treatment

TH conforming to IEC 60068-2-30

Pollution degree

Operating altitude

0...3000 m

Fire resistance

850 °C conforming to IEC 60695-2-1

Flame retardance

V1 conforming to UL 94

Mechanical robustness

vibrations contactor open: 2 Gn, 5...300 Hz|vibrations contactor closed: 4 Gn, 5...300 Hz|shocks contactor closed: 15 Gn for 11 ms|shocks contactor open: 8 Gn for 11 ms

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

14.0 cm

Package 1 width

11.2 cm

Package 1 length

11.5 cm

Package 1 weight

1.015 kg

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

5.295 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Halogen content performance

Halogen free plastic parts & cables product

Show all specifications

Documents & downloads

hide show

Colour ()

TeSys D, Reversing Contactor, TeSys Deca, 3P(3 NO), AC-3, 0 to 440V, 25A, 48 to 130VAC/DC coil

Item Number: LC2D25EHE

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

Product Brochures

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

Environmental Disclosure

End of Life Manual

Certificates (MSDS)

Declaration of Conformity

TeSys D Green contactors

TeSys D Green ebook

TESYS D REVERSING CONTACTOR-3P-AC3- <= 4 - 3D CAD

TeSys - Catalog 2024 - Innovative and connected solutions for motor starters

LC2 D.. 9 to 38 A reversing contactors with screw clamp terminals - Instruction sheet

TeSys Deca Green three-pole contactor

TeSys Deca Green three-pole contactor

CSA Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40_DPE

DNV Type Approval Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40&CAD&LAD

EU RO MR Type Approval Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40&CAD&LAD

UL_Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40_DPE_AC coils and electronic coils

CB Certificate TeSys D -LC1D25-38&LC2D25-38_electronic_Le Vaudreuil

CCC Self-Declaration_TeSys D_LC1D25-38&LC2D25-38_Le Vaudreuil

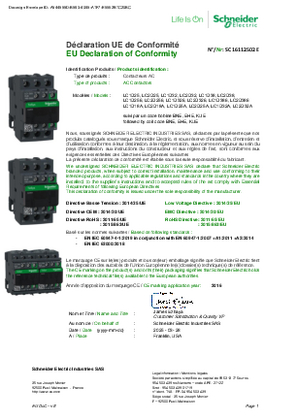

EU_Declaration_TeSys D_LC1D25-38&LC2D25-38

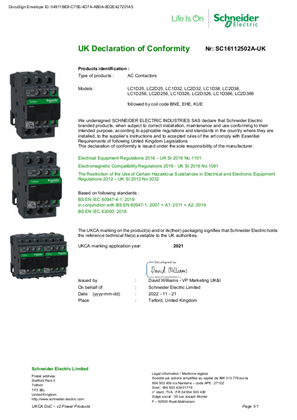

UKCA Declaration TeSysD_LC1D25-38&LC2D25-38_electronic
