TeSys GV2, Motor circuit breaker, TeSys Deca, 3P, 13 to 18A, thermal magnetic, screw clamp terminals, rotary handle

Home ProductsIndustrialTeSysMotor circuit breaker

TeSys GV2, Motor circuit breaker, TeSys Deca, 3P, 13 to 18A, thermal magnetic, screw clamp terminals, rotary handle

Item Number: GV2P20

TeSys GV motor circuit breaker, 3 poles (3P), 18A/690V, for 3-phase motor applications 7.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 13-18A, magnetic tripping at 13xIn, high breaking capacity Icu 50kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width45 mm

Height icon

Height89 mm

Depth icon

Depth97 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys Deca

Range of product

TeSys GV2

Product or component type

motor circuit breaker

Device application

motor protection

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Fixing mode

35 mm symmetrical DIN rail: clipped|panel: screwed (with 2 x M4 screws)

Control type

rotary handle

[in] rated current

18 A

[ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

Mechanical durability

100000 cycles

Electrical durability

100000 cycles for AC-3 at 415 V In|100000 cycles for AC-3e at 415 V In

Width

45 mm

Height

89 mm

Depth

97 mm

Product certifications

CCC|UL|CSA|EAC|ATEX|LROS (Lloyds register of shipping)|BV|RINA|DNV-GL|UKCA

Ik degree of protection

IK04

Ip degree of protection

IP20 conforming to IEC 60529

Climatic withstand

conforming to IACS E10

Ambient air temperature for storage

-40...80 °C

Ambient air temperature for operation

-20...60 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2211002

Circularity profile

ENVEOLI2211002

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Product name

TeSys GV2|TeSys Deca

Device short name

GV2P

Trip unit technology

thermal-magnetic

Poles description

3P

Network type

AC

Utilisation category

category A conforming to IEC 60947-2|AC-3 conforming to IEC 60947-4-1|AC-3e conforming to IEC 60947-4-1

Network frequency

50/60 Hz conforming to IEC 60947-4-1

Motor power kw

7.5...7.5 kW at 400/415 V AC 50/60 Hz|9 kW at 500 V AC 50/60 Hz|15 kW at 690 V AC 50/60 Hz

Breaking capacity

100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2|50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2|20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2|10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2|4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2

[ics] rated service short-circuit breaking capacity

100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2|50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2|75 % at 440 V AC 50/60 Hz conforming to IEC 60947-2|75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2|100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2

Thermal protection adjustment range

13...18 A conforming to IEC 60947...4-1

Magnetic tripping current

223 A

[ith] conventional free air thermal current

18 A conforming to IEC 60947-4-1

[ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

Phase failure sensitivity

yes conforming to IEC 60947-4-1

Suitability for isolation

yes conforming to IEC 60947-1 § 7-1-6

Power dissipation per pole

2.5 W

Maximum operating rate

25 cyc/h

Rated duty

continuous conforming to IEC 60947-4-1

Direct connector

without

Tightening torque

1.7 N.m - on screw clamp terminal

Compatibility code

GV2P

Fire resistance

960 °C conforming to IEC 60695-2-11

Mechanical robustness

shocks: 30 Gn for 11 ms|vibrations: 5 Gn, 5...150 Hz

Operating altitude

2000 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.800 cm

Package 1 width

9.300 cm

Package 1 length

10.000 cm

Package 1 weight

334.000 g

Unit type of package 2

S02

Number of units in package 2

20

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

6.982 kg

Unit type of package 3

P06

Number of units in package 3

320

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

118.272 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Data Bulletin

  • Operating Manuals

  • Technical Drawing

  • Certificates (MSDS)

  • Declaration of Conformity

  • eTechPub

TeSys GV2 - MAGNETIC CIRCUIT BREAKER - 3D CAD
ZIP

TeSys GV2 - MAGNETIC CIRCUIT BREAKER - 3D CAD

VERSION

1.0

DATE

20 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
Manual Starter and Protector, 0.10-32A, 3 Pole
ZIP

Manual Starter and Protector, 0.10-32A, 3 Pole

VERSION

1.2

DATE

20 Jul 2023

REVISION

1.2

DOWNLOAD (ZIP) 70.7 KB
TeSys - Catalog 2024 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2024 - Innovative and connected solutions for motor starters

VERSION

15.0

DATE

15 Sep 2024

REVISION

15.0

DOWNLOAD (ZIP) 76.8 MB
Easy Series Automation and Control Essentials Catalog-2024
ZIP

Easy Series Automation and Control Essentials Catalog-2024

VERSION

5.0

DATE

30 Jul 2024

REVISION

5.0

DOWNLOAD (ZIP) 50.9 MB
Discover the catalog for Altivar Solar Variable Speed Drives
ZIP

Discover the catalog for Altivar Solar Variable Speed Drives

VERSION

2.0

DATE

19 Jun 2024

REVISION

2.0

DOWNLOAD (ZIP) 12.1 MB
Discover the catalog for Altivar Machine ATV320 variable speed drive
ZIP

Discover the catalog for Altivar Machine ATV320 variable speed drive

VERSION

9.0

DATE

14 Dec 2023

REVISION

9.0

DOWNLOAD (ZIP) 8.1 MB
TeSys contactors for railway applications- Catalogue 2022
ZIP

TeSys contactors for railway applications- Catalogue 2022

VERSION

4.0

DATE

14 Mar 2023

REVISION

4.0

DOWNLOAD (ZIP) 8.1 MB
Motor circuit breaker,TeSys Deca,rotary handle
ZIP

Motor circuit breaker,TeSys Deca,rotary handle

VERSION

2.1

DATE

05 Aug 2024

REVISION

2.1

DOWNLOAD (ZIP) 299.3 KB
Motor circuit breaker,TeSys Deca,rotary handle
ZIP

Motor circuit breaker,TeSys Deca,rotary handle

VERSION

2.1

DATE

05 Aug 2024

REVISION

2.1

DOWNLOAD (ZIP) 242.6 KB
GV2 P/L Motor circuit-breakers - Instruction Sheet
ZIP

GV2 P/L Motor circuit-breakers - Instruction Sheet

VERSION

5.0

DATE

24 Jul 2024

REVISION

5.0

DOWNLOAD (ZIP) 2.2 MB
Altivar 212 Variable Speed Drives ATV212H......S2 Ratings Instructions
ZIP

Altivar 212 Variable Speed Drives ATV212H......S2 Ratings Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 99.6 KB
GV2AP.. Fixing kit for door interlock mechanism for GV2 P/L
ZIP

GV2AP.. Fixing kit for door interlock mechanism for GV2 P/L

VERSION

2.1

DATE

29 Sep 2023

REVISION

2.1

DOWNLOAD (ZIP) 501.8 KB
GV2 ME.. Motor circuit-breakers - IS on the box - Instruction Sheet
ZIP

GV2 ME.. Motor circuit-breakers - IS on the box - Instruction Sheet

VERSION

3.0

DATE

21 Dec 2022

REVISION

3.0

DOWNLOAD (ZIP) 1.3 MB
Individual GV2P/L Box Used In Thailand - Instruction Sheet
ZIP

Individual GV2P/L Box Used In Thailand - Instruction Sheet

VERSION

1.0

DATE

09 Nov 2021

REVISION

1.0

DOWNLOAD (ZIP) 2.2 MB
Motor Control Solutions for the North American Market Data Bulletin
ZIP

Motor Control Solutions for the North American Market Data Bulletin

VERSION

4.5

DATE

25 Mar 2024

REVISION

4.5

DOWNLOAD (ZIP) 1.1 MB
TeSys Power - Deca Motor Circuit Breakers Frame 2 - Use in Explosive Atmospheres
ZIP

TeSys Power - Deca Motor Circuit Breakers Frame 2 - Use in Explosive Atmospheres

VERSION

6.0

DATE

16 Apr 2024

REVISION

6.0

DOWNLOAD (ZIP) 1.7 MB

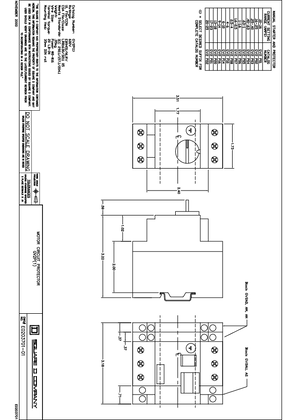

Manual StarterAnd Protector 010-32A 3P Technical drawings
ZIP

Manual StarterAnd Protector 010-32A 3P Technical drawings

VERSION

1.0

DATE

26 Apr 2021

REVISION

1.0

DOWNLOAD (ZIP) 113.7 KB
BV Type approval certificate_TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE
ZIP

BV Type approval certificate_TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE

VERSION

1.0

DATE

15 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 572.5 KB
UL_Certificate_TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE
ZIP

UL_Certificate_TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE

VERSION

1.0

DATE

14 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 448.4 KB

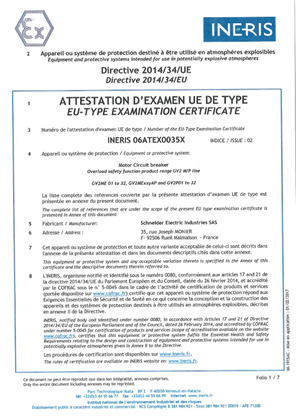

ATEX Certificate TeSys GV2ME&GV2P
