TeSys D, Kit for assembling 4P changeover Contactors, LC1DT20-DT40 with screw clamp terminals, with electrical interlock

Item Number: LADT9R1V

CONTACTOR KIT REV. W/INTERLOCK 32A - Image

1 PCE 0

TeSys Deca kit for changeover contactors assembly, for 4-pole contactors LC1DT20-DT40. It contains a mechanical interlock LAD9V2 with an electrical interlocking LAD9V1, a set of 4 parallel bars LAD9V7. For assembling 2 identical contactors horizontally mounted, with screw clamp Everlink terminals. Green Premium compliant (RoHS/REACh).

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110272222	-

Specifications

Design

Range of product

TeSys Deca

Range

TeSys|Linergy

Product or component type

kits for changeover contactor

Product compatibility

LC1DT20|LC1DT25|LC1DT32|LC1DT40

Warranty

18 months

Physical

Range compatibility

TeSys TeSys D contactor|TeSys TeSys Deca

Net weight

0.045 kg

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Package 1 bare product quantity

1

Device short name

LAD9

Poles description

4P

Kit composition

electrical and mechanical interlock|set of power connection

Compatibility code

LAD9

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.000 cm

Package 1 width

6.000 cm

Package 1 length

9.000 cm

Package 1 weight

53.000 g

Unit type of package 2

S02

Number of units in package 2

40

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

2.429 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Show all specifications

Documents & downloads

hide show

REVERSING SWITCH KIT - 3D CAD

VERSION

1.0

DATE

18 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.6 MB

TeSys - Catalog 2024 - Innovative and connected solutions for motor starters

TeSys - Catalog 2024 - Innovative and connected solutions for motor starters

VERSION

15.0

DATE

15 Sep 2024

REVISION

15.0

DOWNLOAD (ZIP) 76.8 MB

Linergy - Distribution and Connection Systems - English

Linergy - Distribution and Connection Systems - English

VERSION

6.0

DATE

09 Aug 2024

REVISION

6.0

DOWNLOAD (ZIP) 46.1 MB

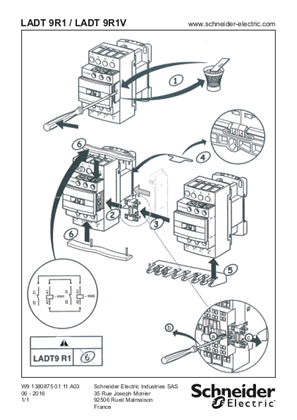

LADT 9R1 / LADT 9R1V Connection kit for 3-pole reversing contactors up to 18.5 kW

LADT 9R1 / LADT 9R1V Connection kit for 3-pole reversing contactors up to 18.5 kW

VERSION

1.1

DATE

02 Aug 2022

REVISION

1.1

DOWNLOAD (ZIP) 4.3 MB

CSA Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40_DPE

CSA Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40_DPE

VERSION

1.0

DATE

15 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 200 KB

DNV Type Approval Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40&CAD&LAD

DNV Type Approval Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40&CAD&LAD

VERSION

1.0

DATE

16 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 694.9 KB

EU RO MR Type Approval Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40&CAD&LAD

EU RO MR Type Approval Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40&CAD&LAD

VERSION

1.0

DATE

16 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 324.4 KB

UL_Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40_DPE_DC_Coils

UL_Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40_DPE_DC_Coils

VERSION

1.0

DATE

16 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 751.6 KB

UL_Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40_DPE_AC coils and electronic coils

UL_Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40_DPE_AC coils and electronic coils

VERSION

1.0

DATE

16 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 751.1 KB

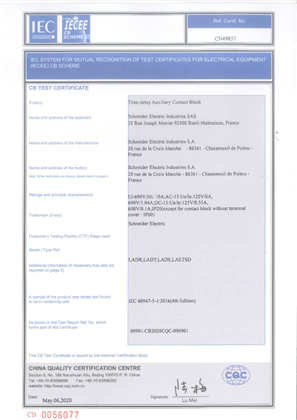

CB Certificate TeSys D -LAD-R-S-T_LAETSD_Chasseneuil

CB Certificate TeSys D -LAD-R-S-T_LAETSD_Chasseneuil

VERSION

1.0

DATE

03 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 213.6 KB

UKCA Declaration TeSysD_LC1D09-18&LC2D09-18_LC1D09-18&LC2D09-18_LC1D098-128&LC1DT20-25&LC2DT20-2

UKCA Declaration TeSysD_LC1D09-18&LC2D09-18_LC1D09-18&LC2D09-18_LC1D098-128&LC1DT20-25&LC2DT20-2

VERSION

1.0

DATE

16 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 404.4 KB

EU Declaration TeSys D_LC1D09-18&LC2D09-18_LC1D09-18&LC2D09-18_LC1D098-128&LC1DT20-25&LC2DT20-25

EU Declaration TeSys D_LC1D09-18&LC2D09-18_LC1D09-18&LC2D09-18_LC1D098-128&LC1DT20-25&LC2DT20-25

VERSION

1.0

DATE

16 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 530.9 KB

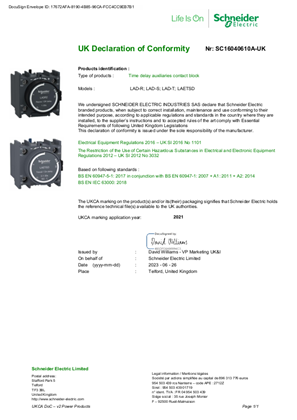

UKCA Declaration TeSysD_LADR, LADS, LADT, LAETSD

UKCA Declaration TeSysD_LADR, LADS, LADT, LAETSD

VERSION

1.0

DATE

14 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 395.7 KB

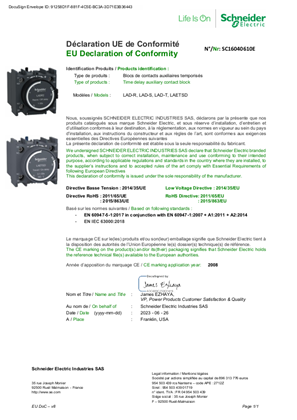

EU Declaration TeSys D_LAD-R-S-T_LAETSD
