TeSys K, Control Relay, 4 NO , <= 690 V , 400...415 V AC coil

Item Number: CA2KN40N7

1 PCE 0

Where To Buy

Datasheet

Download

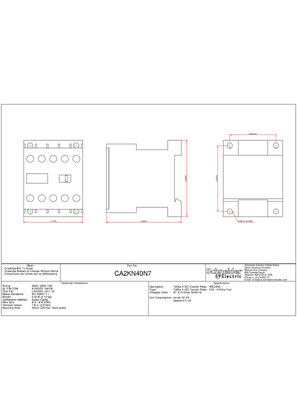

Product Dimensions

Width45 mm

Height58 mm

Depth57 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110483208	-

Specifications

Design

Range of product

TeSys K control relay

Range

TeSys

Product or component type

control relay

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[ue] rated operational voltage

<= 690 V <= 400 Hz

Mounting support

rail|plate

Connections - terminals

screw clamp terminals 1 cable(s) 1.5-4 mm²solid|screw clamp terminals 2 cable(s) 1.5-4 mm²solid|screw clamp terminals 1 cable(s) 0.75-4 mm²flexible with cable end|screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end|screw clamp terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end|screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible without cable end

Mechanical durability

10 Mcycles

Insulation resistance

> 10 MOhm

Height

58 mm

Width

45 mm

Depth

57 mm

Net weight

0.18 kg

Standards

EN/IEC 60947-4-1|GB/T 14048.4|UL 60947-4-1|CSA C22.2 No 60947-4-1|JIS C8201-4-1

Product certifications

CB Scheme|CCC|UL|CSA|EAC|CE|UKCA

Ip degree of protection

IP2X

Ambient air temperature for operation

-25...50 °C

Ambient air temperature for storage

-50...80 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1503003EN

Circularity profile

ENVEOLI1503003EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

Product name

TeSys CAK

Device short name

CA2K

Contactor application

control circuit

Utilisation category

AC-15|DC-13

Pole contact composition

4 NO

Control circuit type

AC at 50/60 Hz

[uc] control circuit voltage

400...415 V AC 50/60 Hz

[ith] conventional free air thermal current

10 A (at 50 °C)

Irms rated making capacity

110 A conforming to IEC 60947

Associated fuse rating

10 A gG conforming to IEC 60947|10 A gG conforming to VDE 0660

[ui] rated insulation voltage

690 V conforming to IEC 60947|750 V conforming to VDE 0110 group C|690 V conforming to BS 5424|600 V conforming to CSA C22.2 No 14

Tightening torque

1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm|1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm|1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

Control circuit voltage limits

drop-out: 0.2...0.75 Uc (at <50 °C)|operational: 0.8...1.15 Uc (at <50 °C)

Operating time

10...20 ms coil de-energisation and NO opening|10...20 ms coil energisation and NO closing

Maximum operating rate

10000 cyc/h

Immunity to microbreaks

2 ms

Inrush power in va

30 VA (at 20 °C)

Hold-in power consumption in va

4.5...4.5 VA (at 20 °C)

Heat dissipation

1.3...1.3 W

Minimum switching voltage

17 V

Minimum switching current

5 mA

Non overlap distance

0.5 mm

Compatibility code

CA2K

Protective treatment

TC conforming to IEC 60068

Operating altitude

2000 m without derating

Flame retardance

V1 conforming to UL 94|requirement 2 conforming to NF F 16-101|requirement 2 conforming to NF F 16-102

Mechanical robustness

vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6|vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6|shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27|shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

6.5 cm

Package 1 width

6.2 cm

Package 1 length

4.8 cm

Package 1 weight

185.0 g
