TeSys K, Control Relay, 1 NO + 1 NC, <= 690 V, 220 V AC coil

Item Number: CA2SK11M7

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width27 mm

Height56 mm

Depth55.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110564099	-

Specifications

Design

Range of product

TeSys SK control relay

Range

TeSys

Product or component type

control relay

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[ue] rated operational voltage

<= 690 V <= 400 Hz

Mounting support

rail|plate

Connections - terminals

screw clamp terminals 1 cable(s) 1.5-6 mm²solid|screw clamp terminals 2 cable(s) 1.5-4 mm²solid|screw clamp terminals 1 cable(s) 0.5-6 mm²flexible without cable end|screw clamp terminals 1 cable(s) 0.35-6 mm²flexible with cable end|screw clamp terminals 2 cable(s) 0.35-1.5 mm²flexible with cable end|screw clamp terminals 2 cable(s) 0.35-2.5 mm²flexible without cable end

Mechanical durability

10 Mcycles

Height

56 mm

Width

27 mm

Depth

55.5 mm

Net weight

0.132 kg

Product certifications

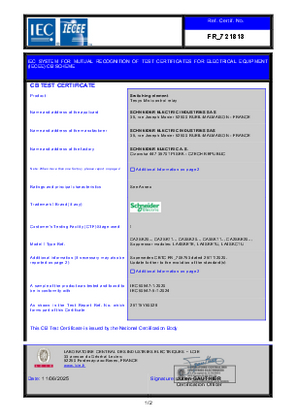

CB Scheme|cULus|EAC|CE|UKCA

Ip degree of protection

IP2X

Ambient air temperature for operation

-20...50 °C

Ambient air temperature for storage

-50...70 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1503003EN

Circularity profile

ENVEOLI1503003EN

Others

Package 1 bare product quantity

Product name

TeSys CASK

Device short name

CA2SK

Contactor application

control circuit

Utilisation category

DC-13|AC-15

Pole contact composition

1 NO + 1 NC

Control circuit type

AC at 50/60 Hz

[uc] control circuit voltage

220 V AC 50/60 Hz

[ith] conventional free air thermal current

10 A (at 55 °C)

Associated fuse rating

10 A gL conforming to VDE 0660|10 A gL conforming to IEC 60947

[ui] rated insulation voltage

690 V conforming to IEC 60947|690 V conforming to VDE 0110 group C|690 V conforming to BS 5424|690 V conforming to UL 508|690 V conforming to CSA C22.2 No 14

Tightening torque

0.8 N.m - on screw clamp terminals pozidriv No 1 screw head

Control circuit voltage limits

drop-out: 0.2...0.75 Uc (at <50 °C)|operational: 0.85...1.1 Uc (at <50 °C)

Operating time

6...8 ms coil de-energisation and NO opening|7...14 ms coil energisation and NO closing|8...10 ms coil de-energisation and NC closing|8...16 ms coil energisation and NC opening

Maximum operating rate

1200 cyc/h

Inrush power in va

16 VA (at 20 °C)

Hold-in power consumption in va

4.2...4.2 VA (at 20 °C)

Heat dissipation

1.4...1.4 W

Compatibility code

CA2SK

Protective treatment

TC conforming to IEC 60068

Operating altitude

2000 m without derating

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.500 cm

Package 1 width

6.000 cm

Package 1 length

6.500 cm

Package 1 weight

121.400 g

Unit type of package 2

S01

Number of units in package 2

Package 2 height

15.000 cm

Package 2 width

15.000 cm

Package 2 length

40.000 cm

Package 2 weight

5.000 kg

Unit type of package 3

P06

Number of units in package 3

1280

Package 3 height

75.000 cm

Package 3 width

80.000 cm

Package 3 length

60.000 cm

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0
