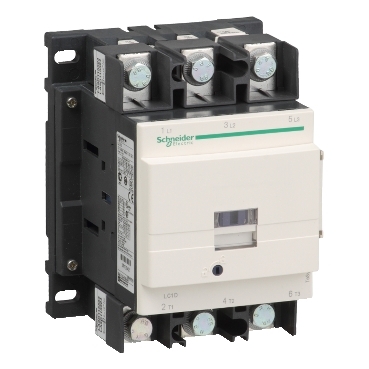

CONTACTOR 115A 1F+1O 110V50 60 3P+1O+1F - Image

TeSys LC1D115 or LC1D150 contactor, 3 poles, screw clamp terminals or lugs, without cover, 115A or 150A

TeSys D, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 230V AC 50/60Hz coil, lugs/bars terminals

Item Number: LC1D1156P7

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width120 mm

Height158 mm

Depth136 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110381375	-

Specifications

Design

Range

TeSys

Range of product

TeSys Deca

Product or component type

contactor

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[ue] rated operational voltage

power circuit: <= 1000 V AC 25...400 Hz|power circuit: <= 300 V DC

[ie] rated operational current

200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit|115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit|115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit

Mechanical durability

8 Mcycles

Electrical durability

0.8 Mcycles 200 A AC-1 at Ue <= 440 V|0.95 Mcycles 115 A AC-3 at Ue <= 440 V|0.95 Mcycles 115 A AC-3e at Ue <= 440 V

Connections - terminals

control circuit: lugs-ring terminals - external diameter: 8 mm|power circuit: lugs-ring terminals - external diameter: 25 mm|power circuit: bars 1 - busbar cross section: 5 x 25 mm

Insulation resistance

> 10 MOhm for signalling circuit

Mounting support

rail|plate

Standards

Product certifications

UL|CSA|CCC|UKCA|CE|EAC|Marine

Ip degree of protection

IP20 front face conforming to IEC 60529

Climatic withstand

conforming to IACS E10 exposure to damp heat| conforming to IEC 60947-1 Annex Q category D exposure to damp heat

Height

158 mm

Width

120 mm

Depth

136 mm

Net weight

2.5 kg

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060301EN

Circularity profile

ENVEOLI100405EN

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

Device short name

LC1D

Contactor application

resistive load|motor control

Utilisation category

AC-1|AC-4|AC-3|AC-3e

Poles description

[uc] control circuit voltage

230 V AC 50/60 Hz

Motor power kw

Motor power hp

30 hp at 200/208 V AC 50/60 Hz for 3 phases motors|40 hp at 230/240 V AC 50/60 Hz for 3 phases motors|75 hp at 460/480 V AC 50/60 Hz for 3 phases motors|100 hp at 575/600 V AC 50/60 Hz for 3 phases motors

Compatibility code

LC1D

Pole contact composition

3 NO

Protective cover

with

[ith] conventional free air thermal current

200 A (at 60 °C) for power circuit

Irms rated making capacity

1260 A at 440 V for power circuit conforming to IEC 60947|140 A AC for signalling circuit conforming to IEC 60947-5-1|250 A DC for signalling circuit conforming to IEC 60947-5-1

Rated breaking capacity

1100 A at 440 V for power circuit conforming to IEC 60947

[icw] rated short-time withstand current

Associated fuse rating

250 A gG at <= 690 V coordination type 1 for power circuit|200 A gG at <= 690 V coordination type 2 for power circuit|10 A gG for signalling circuit

Average impedance

0.6 mOhm - Ith 200 A 50 Hz for power circuit

Power dissipation per pole

24 W AC-1|7.9 W AC-3|7.9 W AC-3e

[ui] rated insulation voltage

Overvoltage category

III

Pollution degree

[uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947

Safety reliability level

B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1|B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Control circuit type

AC at 50/60 Hz

Coil technology

built-in bidirectional peak limiting diode suppressor

Control circuit voltage limits

0.3...0.5 Uc (-40-70 °C):drop-out AC 50/60 Hz|0.8...1.15 Uc (-40-55 °C):operational AC 50/60 Hz|1...1.15 Uc (55-70 °C):operational AC 50/60 Hz

Inrush power in va

280...350 VA 60 Hz cos phi 0.8 (at 20 °C)|280...350 VA 50 Hz cos phi 0.8 (at 20 °C)

Hold-in power consumption in va

2...18 VA 60 Hz cos phi 0.3 (at 20 °C)|2...18 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

3...8 W at 50/60 Hz

Operating time

6...20 ms opening|20...50 ms closing

Maximum operating rate

2400 cyc/h 60 °C

Maximum operating rate

2400 cyc/h at 60 °C

Tightening torque

control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5|control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5|power circuit: 12 N.m - on lugs-ring terminals hexagonal screw head 13 mm M8|power circuit: 12 N.m - on bars hexagonal screw head 13 mm M8|control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 M3.5

Auxiliary contact composition

1 NO + 1 NC

Auxiliary contacts type

type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1| type mirror contact 1 NC conforming to IEC 60947-4-1

Signalling circuit frequency

25...400 Hz

Minimum switching voltage

17 V for signalling circuit

Minimum switching current

5 mA for signalling circuit

Non-overlap time

1.5 ms on de-energisation between NC and NO contact|1.5 ms on energisation between NC and NO contact

Contact compatibility

M13

Protective treatment

TH conforming to IEC 60068-2-30

Permissible ambient air temperature around the device

-40...60 °C|60...70 °C with derating

Operating altitude

0...3000 m

Fire resistance

850 °C conforming to IEC 60695-2-1

Flame retardance

V1 conforming to UL 94

Mechanical robustness

vibrations contactor open (2 Gn, 5...300 Hz) |vibrations contactor closed (4 Gn, 5...300 Hz) |shocks contactor closed (15 Gn for 11 ms) |shocks contactor open (6 Gn for 11 ms)

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

16.8 cm

Package 1 width

20.8 cm

Package 1 length

18.5 cm

Package 1 weight

2.143 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Pvc free

Yes

Show all specifications
