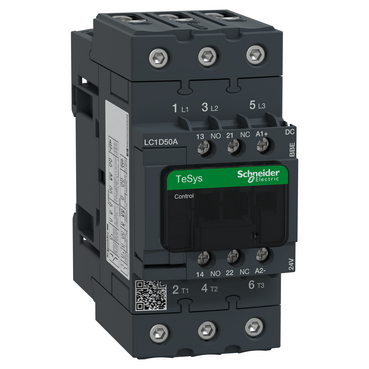

TeSys D, Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 24VDC coil, EverLink

Item Number: LC1D50ABBE

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width55 mm

Height122 mm

Depth120 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480987823	-

Specifications

Design

Range

TeSys|TeSys Deca

Range of product

TeSys Deca

Product or component type

contactor

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[ue] rated operational voltage

power circuit: <= 690 V AC 25...400 Hz

[ie] rated operational current

80 A (at <60 °C) at <= 440 V AC-1 for power circuit|50 A (at <60 °C) at <= 440 V AC-3 for power circuit|50 A (at <60 °C) at <= 440 V AC-3e for power circuit

Mechanical durability

6 Mcycles

Electrical durability

1.8 Mcycles 42 A AC-3 at Ue <= 440 V|0.5 Mcycles 80 A AC-1 at Ue <= 440 V|1.8 Mcycles 42 A AC-3e at Ue <= 440 V

Connections - terminals

control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end|control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end|control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end|control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end|control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid|control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid|power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end|power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end|power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid|power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end|power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end|power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid

Insulation resistance

> 10 MOhm for signalling circuit

Mounting support

plate|rail

Standards

EN/IEC 60947-4-1|EN/IEC 60947-5-1|UL 60947-4-1|CSA C22.2 No 60947-4-1|IEC 60335-1

Product certifications

CCC|CSA|EAC|UL|KC|DNV-GL|LROS (Lloyds register of shipping)|UKCA

Ip degree of protection

IP20 front face conforming to IEC 60529

Climatic withstand

conforming to IACS E10 exposure to damp heat| conforming to IEC 60947-1 Annex Q category D exposure to damp heat

Height

122 mm

Width

55 mm

Depth

120 mm

Net weight

0.997 kg

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1607010EN

Circularity profile

ENVEOLI1607010EN

Others

Package 1 bare product quantity

Package 2 bare product quantity

Device short name

LC1D

Contactor application

resistive load|motor control

Utilisation category

AC-1|AC-3|AC-3e

Poles description

[uc] control circuit voltage

24 V DC

Motor power kw

Motor power hp

3 hp at 115 V AC 60 Hz for 1 phase motors|7.5 hp at 230/240 V AC 60 Hz for 1 phase motors|15 hp at 200/208 V AC 60 Hz for 3 phases motors|15 hp at 230/240 V AC 60 Hz for 3 phases motors|40 hp at 460/480 V AC 60 Hz for 3 phases motors|40 hp at 575/600 V AC 60 Hz for 3 phases motors

Compatibility code

LC1D

Pole contact composition

3 NO

Protective cover

with

[ith] conventional free air thermal current

80 A (at 60 °C) for power circuit|10 A (at 60 °C) for signalling circuit

Irms rated making capacity

900 A at 440 V for power circuit conforming to IEC 60947|140 A AC for signalling circuit conforming to IEC 60947-5-1|250 A DC for signalling circuit conforming to IEC 60947-5-1

Rated breaking capacity

900 A at 440 V for power circuit conforming to IEC 60947

[icw] rated short-time withstand current

Associated fuse rating

10 A gG for signalling circuit conforming to IEC 60947-5-1|100 A gG at <= 690 V coordination type 1 for power circuit|100 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

1.5 mOhm - Ith 80 A 50 Hz for power circuit

Power dissipation per pole

9.6 W AC-1|3.7 W AC-3|3.7 W AC-3e

[ui] rated insulation voltage

power circuit: 690 V conforming to IEC 60947-4-1|signalling circuit: 690 V conforming to IEC 60947-1

Overvoltage category

III

Pollution degree

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947

Safety reliability level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1|B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Control circuit type

DC DC low consumption

Coil technology

built-in bidirectional peak limiting

Control circuit voltage limits

<= 0.1 Uc (-40-70 °C):drop-out DC|0.8...1.2 Uc (-40-60 °C):operational DC|1...1.2 Uc (60-70 °C):operational DC

Inrush power in w

11 W (at 20 °C)

Hold-in power consumption in w

0.5...0.5 W at 20 °C

Heat dissipation

0.5...0.5 W

Operating time

55...65 ms closing|20...120 ms opening (date code >= 17221)|20...80 ms opening (date code >= 18011)

Maximum operating rate

3600 cyc/h 60 °C

Tightening torque

control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm|control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2|power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm|power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm|power circuit: 5 N.m - with screwdriver pozidriv No 2|control circuit: 1.7 N.m - with screwdriver pozidriv No 2

Auxiliary contact composition

1 NO + 1 NC

Auxiliary contacts type

type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1| type mirror contact 1 NC conforming to IEC 60947-4-1

Signalling circuit frequency

25...400 Hz

Minimum switching voltage

17 V for signalling circuit

Minimum switching current

5 mA for signalling circuit

Non-overlap time

1.5 ms on de-energisation between NC and NO contact|1.5 ms on energisation between NC and NO contact

Permissible ambient air temperature around the device

-40...60 °C|60...70 °C with derating

Operating altitude

0...3000 m

Fire resistance

850 °C conforming to IEC 60695-2-1

Flame retardance

V1 conforming to UL 94

Mechanical robustness

vibrations contactor open (2 Gn, 5...300 Hz) |vibrations contactor closed (4 Gn, 5...300 Hz) |shocks contactor open (10 Gn for 11 ms) |shocks contactor closed (15 Gn for 11 ms)

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

6.300 cm

Package 1 width

13.700 cm

Package 1 length

15.200 cm

Package 1 weight

1.058 kg

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

9.822 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Halogen content performance

Halogen free plastic parts & cables product

Show all specifications
