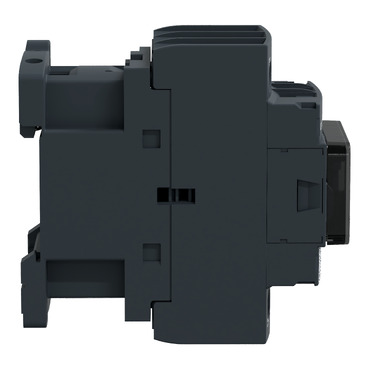

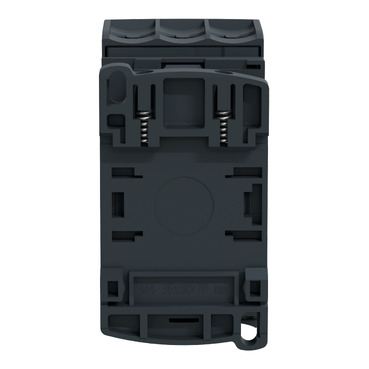

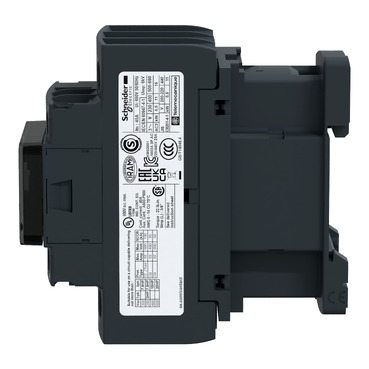

TeSys-LC1D32FD-3P CONT 32A AC3 15KW 1NO 1NC 110VDC COIL

TeSys D, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 110VDC coil

Item Number: LC1D32FD

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width45 mm

Height85 mm

Depth101 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110357387	-

Specifications

Design

Range of product

TeSys Deca

Product or component type

contactor

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[ue] rated operational voltage

power circuit: <= 690 V AC 25...400 Hz|power circuit: <= 300 V DC

[ie] rated operational current

32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit|50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit|32 A (at <60 °C) at <= 440 V AC AC-3e for power circuit

Mechanical durability

30 Mcycles

Electrical durability

1.65 Mcycles 32 A AC-3 at Ue <= 440 V|1.4 Mcycles 50 A AC-1 at Ue <= 440 V|1.65 Mcycles 32 A AC-3e at Ue <= 440 V

Connections - terminals

control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end|control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end|control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end|control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end|control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end|control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end|power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end|power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end|power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end|power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible with cable end|power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: solid without cable end|power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: solid without cable end

Insulation resistance

> 10 MOhm for signalling circuit

Mounting support

plate|rail

Standards

CSA C22.2 No 14|EN 60947-4-1|EN 60947-5-1|IEC 60947-4-1|IEC 60947-5-1|UL 60947-4-1|IEC 60335-1:Clause 30.2|IEC 60335-2-40:Annex JJ|UL 60335-2-40:Annex JJ|CSA C22.2 No 60947-4-1

Product certifications

UL|CCC|CSA|Marine|UKCA|EAC|CB Scheme

Ip degree of protection

IP20 front face conforming to IEC 60529

Climatic withstand

conforming to IACS E10 exposure to damp heat| conforming to IEC 60947-1 Annex Q category D exposure to damp heat

Height

85 mm

Width

45 mm

Depth

101 mm

Net weight

0.535 kg

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP110230EN

Circularity profile

ENVEOLI1102030EN

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

Package 2 bare product quantity

Device short name

LC1D

Contactor application

resistive load|motor control

Utilisation category

AC-3|AC-4|AC-1|AC-3e

Poles description

[uc] control circuit voltage

110 V DC

Motor power kw

Motor power hp

2 hp at 115 V AC 50/60 Hz for 1 phase motors|5 hp at 230/240 V AC 50/60 Hz for 1 phase motors|10 hp at 200/208 V AC 50/60 Hz for 3 phases motors|10 hp at 230/240 V AC 50/60 Hz for 3 phases motors|20 hp at 460/480 V AC 50/60 Hz for 3 phases motors|25 hp at 575/600 V AC 50/60 Hz for 3 phases motors

Compatibility code

LC1D

Pole contact composition

3 NO

Protective cover

with

[ith] conventional free air thermal current

10 A (at 60 °C) for signalling circuit|50 A (at 60 °C) for power circuit

Irms rated making capacity

140 A AC for signalling circuit conforming to IEC 60947-5-1|250 A DC for signalling circuit conforming to IEC 60947-5-1|550 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

550 A at 440 V for power circuit conforming to IEC 60947

[icw] rated short-time withstand current

Associated fuse rating

10 A gG for signalling circuit conforming to IEC 60947-5-1|63 A gG at <= 690 V coordination type 1 for power circuit|63 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

2 mOhm - Ith 50 A 50 Hz for power circuit

Power dissipation per pole

2 W AC-3|5 W AC-1|2 W AC-3e

[ui] rated insulation voltage

Overvoltage category

III

Pollution degree

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947

Safety reliability level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1|B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Control circuit type

DC standard

Coil technology

built-in bidirectional peak limiting diode suppressor

Control circuit voltage limits

0.1...0.25 Uc (-40-70 °C):drop-out DC|0.7...1.25 Uc (-40-60 °C):operational DC|1...1.25 Uc (60-70 °C):operational DC

Inrush power in w

5.4...5.4 W (at 20 °C)

Hold-in power consumption in w

5.4...5.4 W at 20 °C

Operating time

63 ±15 % ms closing|20 ±20 % ms opening

Time constant

28 ms

Maximum operating rate

3600 cyc/h 60 °C

Maximum operating rate

3600 cyc/h at 60 °C

Tightening torque

control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm|control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2|power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm|power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2|control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2|power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

Auxiliary contact composition

1 NO + 1 NC

Auxiliary contacts type

type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1| type mirror contact 1 NC conforming to IEC 60947-4-1

Signalling circuit frequency

25...400 Hz

Minimum switching voltage

17 V for signalling circuit

Minimum switching current

5 mA for signalling circuit

Non-overlap time

1.5 ms on de-energisation between NC and NO contact|1.5 ms on energisation between NC and NO contact

Contact compatibility

Protective treatment

TH conforming to IEC 60068-2-30

Permissible ambient air temperature around the device

-40...60 °C|60...70 °C with derating

Operating altitude

0...3000 m

Fire resistance

850 °C conforming to IEC 60695-2-1

Flame retardance

V1 conforming to UL 94

Mechanical robustness

vibrations contactor open (2 Gn, 5...300 Hz) |vibrations contactor closed (4 Gn, 5...300 Hz) |shocks contactor closed (15 Gn for 11 ms) |shocks contactor open (8 Gn for 11 ms)

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

5.000 cm

Package 1 width

9.200 cm

Package 1 length

11.200 cm

Package 1 weight

576.000 g

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

8.933 kg

Sustainable packaging

Yes

Pvc free

Yes

Show all specifications
