TeSys GV2, Auxiliary Contact Block, TeSys Deca,1NO+1NC,left side mounting

Home ProductsIndustrialTeSysAuxiliary Contact Block

TeSys GV2, Auxiliary Contact Block, TeSys Deca,1NO+1NC,left side mounting

Item Number: GVAN11

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width9.3 mm

Height icon

Height89 mm

Depth icon

Depth66 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys GV3|TeSys GV2|TeSys Deca

Range

TeSys|TeSys Deca

Product or component type

auxiliary contact block

Product compatibility

GV2ME|GV2RT|GV2L|GV3P|GV3L|GV2LE|GV2P

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[ue] rated operational voltage

48...690 V AC|24...240 V DC

Mechanical durability

100000 cycles

Protection type

GB2CB... circuit breaker|gG fuse 10 A

Height

89 mm

Width

9.3 mm

Depth

66 mm

Net weight

0.05 kg

Environmental characteristic

normal environment

Product certifications

UKCA

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP2207006

Circularity profile

ENVEOLI2207006

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Device short name

GVAN

Mounting location

left side

Pole contact composition

1 NO + 1 NC

[ui] rated insulation voltage

600 V conforming to UL 508|690 V conforming to IEC 60947-1|600 V conforming to CSA C22.2 No 14

[ith] conventional free air thermal current

6 A

Minimum switching current

5 mA

Minimum switching voltage

17 V

Rated operational power in va

300 VA at 48-48 V AC-15 - electrical durability: 100000 cycles|414 VA at 690-690 V AC-15 - electrical durability: 100000 cycles|500 VA at 110-127 V AC-15 - electrical durability: 100000 cycles|500 VA at 500-500 V AC-15 - electrical durability: 100000 cycles|650 VA at 440-440 V AC-15 - electrical durability: 100000 cycles|720 VA at 230-240 V AC-15 - electrical durability: 100000 cycles|850 VA at 380-415 V AC-15 - electrical durability: 100000 cycles

Rated operational power in w

120 W at 240 V DC-13 - electrical durability: 100000 cycles|140 W at 110 V DC-13 - electrical durability: 100000 cycles|140 W at 24 V DC-13 - electrical durability: 100000 cycles|180 W at 60 V DC-13 - electrical durability: 100000 cycles|240 W at 48 V DC-13 - electrical durability: 100000 cycles

Tightening torque

1.4 N.m - on screw clamp terminals

Compatibility code

GVAN

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.500 cm

Package 1 width

7.000 cm

Package 1 length

9.000 cm

Package 1 weight

46.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

9.500 cm

Package 2 width

10.000 cm

Package 2 length

15.200 cm

Package 2 weight

510.000 g

Unit type of package 3

S02

Number of units in package 3

60

Package 3 height

15.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

3.294 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Technical Drawing

  • Certificates (MSDS)

  • Declaration of Conformity

  • eTechPub

TeSys GV2 & GV3 - auxiliary contact block - 2 NO - 3D CAD
ZIP

TeSys GV2 & GV3 - auxiliary contact block - 2 NO - 3D CAD

VERSION

1.0

DATE

18 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
TeSys - Catalog 2024 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2024 - Innovative and connected solutions for motor starters

VERSION

15.0

DATE

15 Sep 2024

REVISION

15.0

DOWNLOAD (ZIP) 76.8 MB
TeSys Deca - auxiliary contact block (GV)
ZIP

TeSys Deca - auxiliary contact block (GV)

VERSION

2.0

DATE

29 May 2024

REVISION

2.0

DOWNLOAD (ZIP) 624.7 KB
TeSys Deca - auxiliary contact block (GV)
ZIP

TeSys Deca - auxiliary contact block (GV)

VERSION

2.0

DATE

29 May 2024

REVISION

2.0

DOWNLOAD (ZIP) 616.7 KB
GV2 ME.. Motor circuit-breakers - IS on the box - Instruction Sheet
ZIP

GV2 ME.. Motor circuit-breakers - IS on the box - Instruction Sheet

VERSION

3.0

DATE

21 Dec 2022

REVISION

3.0

DOWNLOAD (ZIP) 1.3 MB
Contact blocks for circuit breaker Dimensions
ZIP

Contact blocks for circuit breaker Dimensions

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 469.1 KB
TeSys GV3 - GVAN11_CAD2D-MECHANICAL_FRONT - Dimensions, Mounting and fixation - Technical drawing
ZIP

TeSys GV3 - GVAN11_CAD2D-MECHANICAL_FRONT - Dimensions, Mounting and fixation - Technical drawing

VERSION

1.0

DATE

03 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 47 KB
Contact blocks for circuit breaker Dimensions
ZIP

Contact blocks for circuit breaker Dimensions

VERSION

1.0

DATE

21 Dec 2020

REVISION

1.0

DOWNLOAD (ZIP) 249.4 KB
BV Type approval certificate_TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE
ZIP

BV Type approval certificate_TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE

VERSION

1.0

DATE

15 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 572.5 KB
CQC_Certificate_TeSys GVAN&GZ1AN&GVAD&GVAM
ZIP

CQC_Certificate_TeSys GVAN&GZ1AN&GVAD&GVAM

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
CB_Certificate_TeSys GVAN&GZ1AN&GVAD&GVAM
ZIP

CB_Certificate_TeSys GVAN&GZ1AN&GVAD&GVAM

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 420.8 KB

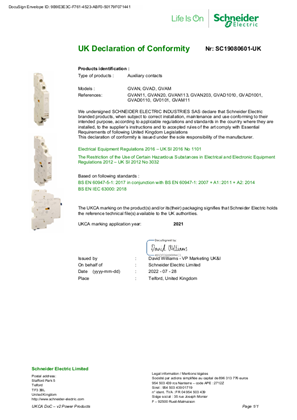

UKCA Declaration TeSys GVAN&GVAD&GVAM
ZIP

UKCA Declaration TeSys GVAN&GVAD&GVAM

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 375.4 KB

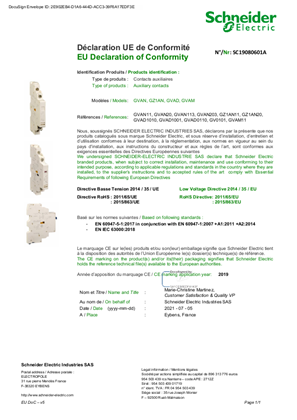

EU Declaration TeSys GVAN&GZ1AN&GVAD&GVAM
