Vario VZ main pole module for switch disconnector

Home ProductsIndustrialTeSysAdditional pole

TeSys Mini-Vario, Additional pole, 32A, for V1

Item Number: VZ1

1 PCE 0

TeSys Vario add-on module, main pole 32A 690V, for Vario switch-disconnectors. To be used with V1 switch bodies. A maximum of 3 additional VZ1 modules can be attached to the switch body. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Where To Buy

Datasheet

Download

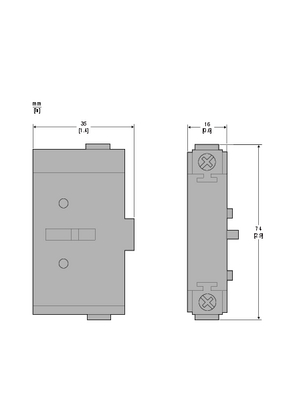

Product Dimensions

Width16 mm

Height74 mm

Depth35 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110551860	-

Specifications

Design

Range

TeSys

Product or component type

additional pole

Product compatibility

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Range compatibility

TeSys TeSys VARIO switch disconnector

[ue] rated operational voltage

690 V AC 50/60 Hz

Mechanical durability

100000 cycles

Electrical durability

100000 cycles AC-21|30000 cycles DC-1...5

Connections - terminals

power circuit: screw clamp terminals6-6 mm² - flexible - with cable end|power circuit: screw clamp terminals10-10 mm² - solid

Height

74 mm

Width

16 mm

Depth

35 mm

Net weight

0.05 kg

Standards

IEC 60947-3

Product certifications

CSA|UL|GL|UKCA

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20...50 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2211001

Circularity profile

N/A

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

Device short name

Performance level

high performance

Poles description

Contacts type and composition

1 NO

Network type

DC|AC

Network frequency

50/60 Hz

Suitability for isolation

yes

Mounting location

left|right

[uimp] rated impulse withstand voltage

8 kV

[ith] conventional free air thermal current

32 A

[ithe] conventional enclosed thermal current

25 A

Tightening torque

power circuit: 2.1...2.1 N.m - on screw clamp terminals

Compatibility code

main pole module

Protective treatment

Mechanical robustness

vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6|shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Fire resistance

960 °C conforming to IEC 60695-2-1

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.700 cm

Package 1 width

5.500 cm

Package 1 length

9.000 cm

Package 1 weight

44.000 g

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.674 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

VERSION

1.0

DATE

30 Dec 2022

REVISION

1.0

DOWNLOAD (ZIP) 369.1 KB

Frequently Asked Questions

hide show

What is in the VCCF5 kit ?

Issue:
Checking on what the VCCF5 kit is composed of?

Product Line:
Mini Vario and Vario.

Environment:
Operating Mechanisms and Disconnect Switches

Resolution:
The carton includes V5 - switch body, KZ74 - door interlock, KZ67 - gasket plate, KCF3PZ - handle assembly, VZ18 - shaft extension, VZ10 - terminal shield.
