Square D QO Earth leakage circuit breaker 1P + Ns, B curve, 20A, 30mA

Home ProductsIndustrialSquare D QOEarth leakage circuit breaker

Square D QO Earth leakage circuit breaker 1P + Ns, B curve, 20A, 30mA

Item Number: QO120B10RCBO30F

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width19 mm

Height icon

Height110 mm

Depth icon

Depth85 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Square D

Range of product

Square D

Product or component type

residual current breaker with overcurrent protection (RCBO)

Physical

[in] rated current

20 A at 40 °C

[ue] rated operational voltage

230/240 V AC 50/60 Hz

Electrical insulation class

class II

Control type

toggle

Local signalling

ON/OFF indication

Mounting mode

plug-on

Mounting support

socket

Height

110 mm

Width

19 mm

Depth

85 mm

Net weight

186 g

Mechanical durability

20000 cycles

Electrical durability

5000 cycles

Connections - terminals

plug-in connector (top) |tunnel type terminal (bottom) 1-16 mm² rigid without cable end|tunnel type terminal (bottom) 1-10 mm² with cable end|tunnel type terminal (bottom) 1-10 mm² flexible without cable end

Wire stripping length

power circuit: 15 mm for bottom connection

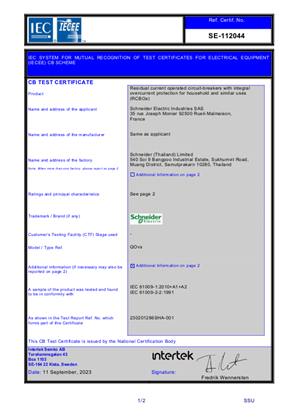

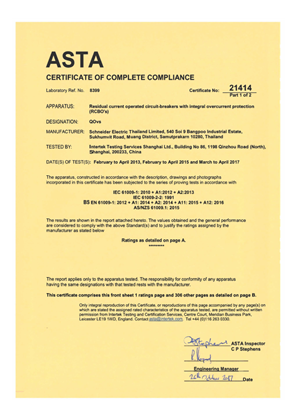

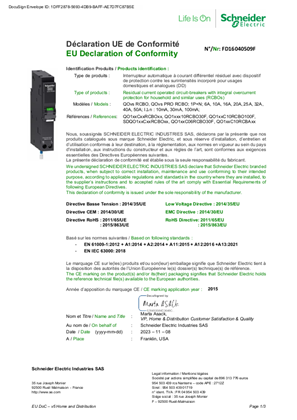

Standards

IEC 61009-2-2|AS/NZS 61009.1|BS EN 61009-1|IEC 61009-1

Ip degree of protection

IP20

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-15...60 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

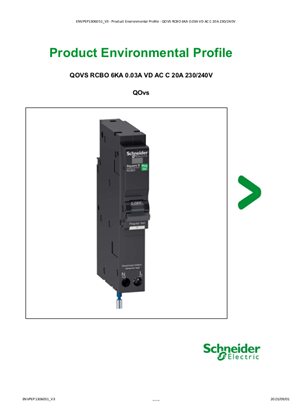

Environmental disclosure

ENVPEP1306051EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Circuit breaker application

distribution

Product name

QOvs RCBO

Poles description

1P + Ns

Earthing system

TN

Curve code

B

Earth-leakage sensitivity

30 mA

Breaking capacity

10000 A Icn at 230/240 V AC 50/60 Hz

Number of protected poles

1

Device location in system

outgoer

Network frequency

50/60 Hz

Network type

AC

Trip unit technology

thermal-magnetic

Residual current tripping technology

voltage dependent functional earth

Earth-leakage protection time delay

instantaneous

Earth-leakage protection class

type AC

[icw] rated short-time withstand current

Icw: 250 A during 8/20 µs impulse withstand

[ics] rated service breaking capacity

7500 A at 230/240 V AC 50/60 Hz

Limitation class

3

[ui] rated insulation voltage

400 V AC 50/60 Hz

[uimp] rated impulse withstand voltage

4 kV

Surge current

250 A

Suitability for isolation

yes

Contact position indicator

yes

Comb busbar and distribution block compatibility

NO

Provision for padlocking

non padlockable

Tightening torque

power circuit: 2 N.m bottom

Earth-leakage protection

integrated

Tropicalisation

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

10.3 cm

Package 1 width

14.3 cm

Package 1 length

2.7 cm

Package 1 weight

232 g

Unit type of package 2

S02

Number of units in package 2

34

Package 2 height

15 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

8.304 kg

Unit type of package 3

P12

Number of units in package 3

1088

Package 3 height

70 cm

Package 3 width

120 cm

Package 3 length

80 cm

Package 3 weight

264.416 kg

Scip number

9a51c76a-1b6a-4c6b-be51-2aebaefb053b

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications

Frequently Asked Questions

hide show

What are the replacement part numbers for a Square D RCBOs example QOE120B03?

Please see attached document for the characteristics of the new RCBos and below table shows the replacement part#s
RCBO
MaterialAlternative MaterialDescriptionComment
QOE110BO3QO110B10RCBO30FQOE RCBO 1P+N 10A B 30mA 10kADirect Replacement
QOE116BO3QO116B10RCBO30FQOE RCBO 1P+N 16A B 30mA 10kADirect Replacement
QOE120BO3QO120B10RCBO30FQOE RCBO 1P+N 20A B 30mA 10kADirect Replacement
QOE132BO3QO132B10RCBO30FQOE RCBO 1P+N 32A B 30mA 10kADirect Replacement
QOE140BO3QO140B10RCBO30FQOE RCBO 1P+N 40A B 30mA 10kADirect Replacement





What are the ranges of the Square D Circuit Breakers?

MaterialDescriptionCommentDirect Replacement
QO106EC10MINIATURE CIRCUIT BREAKER 240V 6ADiscontinuedno replacement
QO110EC10QOvs 1P 10A 10kA Type CDirect ReplacementQO110VSC10
QO116EC10QOvs 1P 16A 10kA Type CDirect ReplacementQO116VSC10
QO120EC10QOvs 1P 20A 10kA Type CDirect ReplacementQO120VSC10
QO125EC10QOvs 1P 25A 10kA Type CDirect ReplacementQO125VSC10
QO132EC10QOvs 1P 32A 10kA Type CDirect ReplacementQO132VSC10
QO140EC10QOvs 1P 40A 10kA Type CDirect ReplacementQO140VSC10
QO150EC10QOvs 1P 50A 10kA Type CDirect ReplacementQO150VSC10
QO163EC10QOvs 1P 63A 10kA Type CDirect ReplacementQO163VSC10
QOH180XAUSMCB QOH 1P 80A 6KADiscontinuedno replacement
QOH1100XAUSMCB QOH 1P 100A 6KADiscontinuedno replacement
QO310EC10QOvs 3P 10A 10kA Type CDirect ReplacementQO310VSC10
QO316EC10QOvs 3P 16A 10kA Type CDirect ReplacementQO316VSC10
QO320EC10QOvs 3P 20A 10kA Type CDirect ReplacementQO320VSC10
QO325EC10QOvs 3P 25A 10kA Type CDirect ReplacementQO325VSC10
QO332EC10QOvs 3P 32A 10kA Type CDirect ReplacementQO332VSC10
QO340EC10QOvs 3P 40A 10kA Type CDirect ReplacementQO340VSC10
QO350EC10QOvs 3P 50A 10kA Type CDirect ReplacementQO350VSC10
QO363EC10QOvs 3P 63A 10kA Type CDirect ReplacementQO363VSC10
QOH380XAUSMCB QOH 3P 80A 6KADiscontinuedno replacement

RCBO
QOE110BO3QOE RCBO 1P+N 10A B 30mA 10kADirect ReplacementQO110B10RCBO30F
QOE116BO3QOE RCBO 1P+N 16A B 30mA 10kADirect ReplacementQO116B10RCBO30F
QOE120BO3QOE RCBO 1P+N 20A B 30mA 10kADirect ReplacementQO120B10RCBO30F
QOE132BO3QOE RCBO 1P+N 32A B 30mA 10kADirect ReplacementQO132B10RCBO30F
QOE140BO3QOE RCBO 1P+N 40A B 30mA 10kADirect ReplacementQO140B10RCBO30F

What is the part number for a 20amp Square D RCBO?

The part number for a 20amp Square D RCBO is - QO120B10RCBO30F

For further information , visit link below:-
http://www.schneider-electric.com.au/en/search/QO120B10RCBO30F
https://www.clipsal.com/products/detail?CatNo=QO120B10RCBO30F&tab-document-1=0&itemno=QO120B10RCBO30F

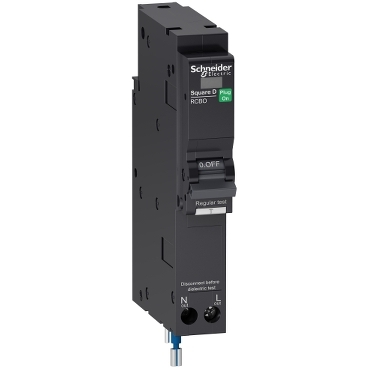

Schneider Eletric QO120B10RCBO30F Picture
