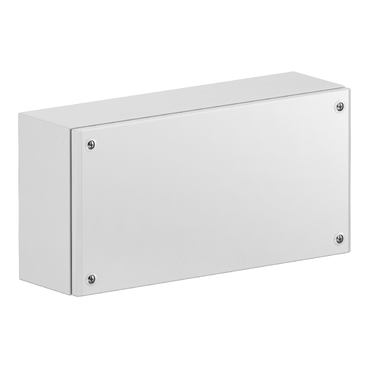

Spacial SBM, Metal industrial box plain door, H150xW150xD120 IP66 IK10 RAL 7035

Home ProductsIndustrialSpacial SBMMetal industrial box plain door

Spacial SBM, Metal industrial box plain door, H150xW150xD120 IP66 IK10 RAL 7035

Item Number: NSYSBM151512

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

PanelSeT

Device application

multi-purpose

Product or component type

industrial box

Surface finish

polyester powder

Colour

grey (RAL 7035)

Warranty

18 months

Physical

Standards

IEC 62208

Product certifications

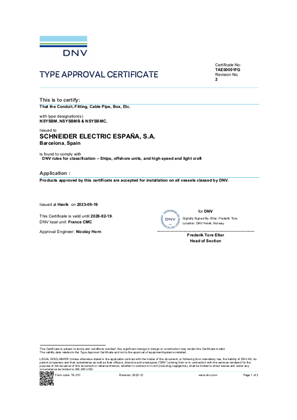

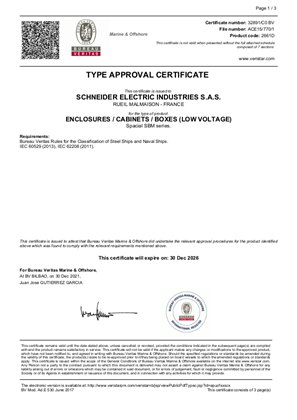

DNV-GL|UL|BV

Ip degree of protection

IP66 conforming to IEC 60529

Ik degree of protection

IK10 conforming to IEC 62262

Ambient air temperature for storage

-35...60 °C

Ambient air temperature for operation

-35...80 °C

Net weight

1.306 kg

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP121023EN

Circularity profile

N/A

Material

Device composition

4 cover screw|1 cover|1 body

Material

sheet steel

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

120

Product name

PanelSeT SBM

Device short name

SBM

Enclosure type

flat face box

Enclosure nominal height

150 mm

Enclosure nominal width

150 mm

Enclosure nominal depth

120 mm

Enclosure mounting

wall mounted

Body type

single piece body folded and welded

Type of front cover

plain door

Cover fixing

half turn metal screw

Lock type

captive screw PZ2 outside sealed area

Removable parts

cover by captive screws

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

14.000 cm

Package 1 width

17.000 cm

Package 1 length

17.000 cm

Package 1 weight

1.306 kg

Unit type of package 2

P12

Number of units in package 2

120

Package 2 height

61.000 cm

Package 2 width

80.000 cm

Package 2 length

120.000 cm

Package 2 weight

166.720 kg

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • CAD Files and Packs

  • Technical Data Catalogues

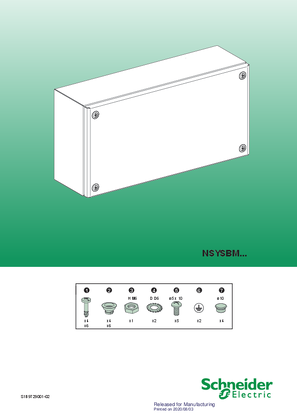

  • Installation Instruction

  • Environmental Disclosure

  • Technical illustration

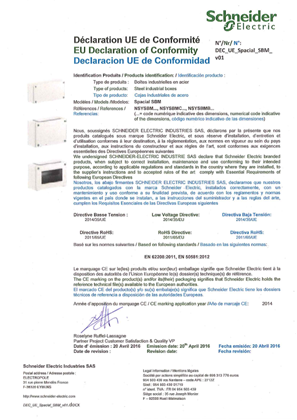

  • Declaration of Conformity
