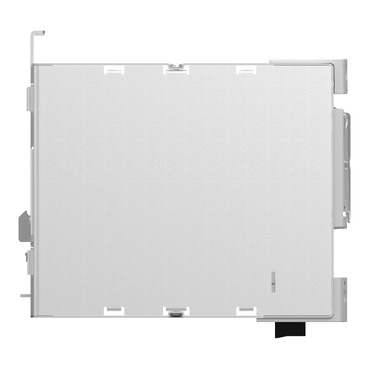

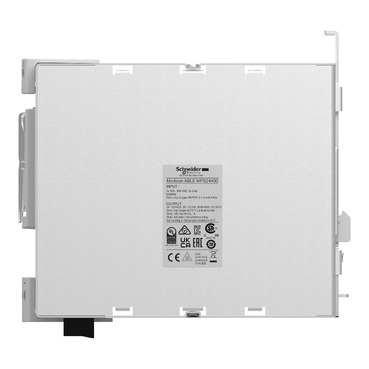

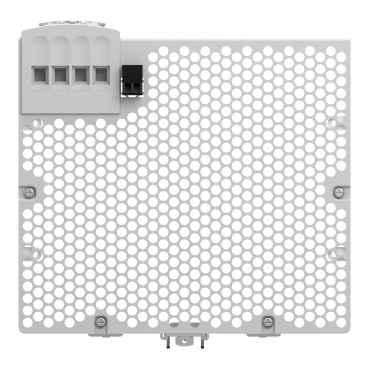

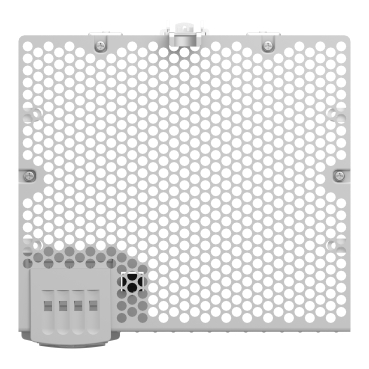

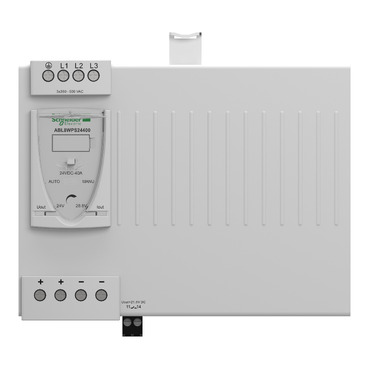

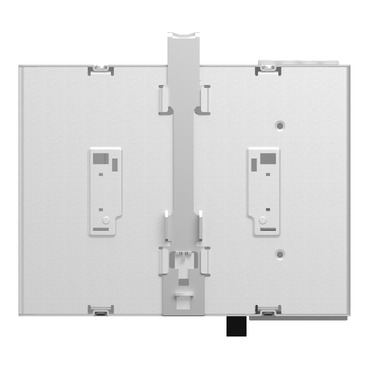

Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V, 24V, 40A

Home ProductsIndustrialPhaseo ABL7 ABL8Regulated Switch Power Supply

Phaseo ABL7 ABL8, Regulated Switch Power Supply, 3 phase, 380..500V, 24V, 40A

Item Number: ABL8WPS24400

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width166 mm

Height icon

Height143 mm

Depth icon

Depth160 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Modicon Power Supply

Product or component type

power supply

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Rated power in w

960 W

Inrush current

25 A

Provided equipment

power factor correction filter conforming to IEC 61000-3-2

Connections - terminals

removable screw terminal block: 2 x 2.5 mm², for diagnostic relay|screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection|screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection|screw type terminals: 4 x 0.5...4 x 10 mm², (AWG 22...AWG 8) for output connection

Depth

160 mm

Height

143 mm

Width

166 mm

Net weight

2.7 kg

Marking

CE

Mounting support

35 x 7.5 mm symmetrical DIN rail| 35 x 15 mm symmetrical DIN rail

Supply

SELV conforming to IEC 60950-1|SELV conforming to IEC 60204-1|SELV conforming to IEC 60364-4-41

Standards

CSA C22.2 No 60950-1|UL 508|EN/IEC 62368-1

Product certifications

cCSAus|EAC|UL|RCM

Environmental characteristic

EMC conforming to IEC 61000-6-1|EMC conforming to IEC 61000-6-3|EMC conforming to EN 55024|EMC conforming to IEC 61000-6-4|EMC conforming to EN/IEC 61204-3|safety conforming to EN 61204-4|safety conforming to IEC 60950-1

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

50...60 °C with derating factor mounting position A < 2000 m|-25...50 °C without derating mounting position A < 2000 m

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China rohs regulation

X

Rohs exemption information

Yes

Environmental disclosure

ENVPEP061202EN

Circularity profile

ENVEOLI0612002EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

1

Power supply type

regulated switch mode

Input voltage

380...500 V AC three phase, terminal(s): L1, L2, L3

Output voltage

24 V DC

Power supply output current

40 A

Permissible temporary current boost

1.5 x In (for 4 s)

Anti-harmonic filter

low frequency harmonic currents

Input voltage limits

320...550 V AC

Power factor

0.85 at 24 V DC

Efficiency

92 %

Output voltage limits

24...28.8 V adjustable

Power dissipation in w

76.8 W

Output protection type

against overload, protection technology: manual or automatic reset|against overvoltage, protection technology: 30...32 V, manual reset|against short-circuits, protection technology: manual or automatic reset|against undervoltage, protection technology: tripping if U < 21.6 V|thermal, protection technology: automatic reset

Status led

1 LED (green and red) output voltage|1 LED (green, red and orange) output current

Output coupling

parallel|series

Operating position

vertical

Dielectric strength

3500 V with between input and ground|4000 V with between input and output|500 V with between output and ground

Operating altitude

2000 m

Compatibility code

ABL8W

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

15.969 cm

Package 1 width

18.691 cm

Package 1 length

19.668 cm

Package 1 weight

3.35 kg

Unit type of package 2

S06

Number of units in package 2

22

Package 2 height

73.5 cm

Package 2 width

60.0 cm

Package 2 length

80.0 cm

Package 2 weight

80.0 kg

Pvc free

Yes
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

  • Technical Drawing

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

Universal Power Supply 40A 3p
ZIP

Universal Power Supply 40A 3p

VERSION

1.0

DATE

20 May 2024

REVISION

1.0

DOWNLOAD (ZIP) 12.4 MB
ABL8WPS24400_3D-simpl
ZIP

ABL8WPS24400_3D-simpl

VERSION

1.0

DATE

18 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.7 MB
Universal Power Supply 40A 3p
ZIP

Universal Power Supply 40A 3p

VERSION

1.0

DATE

20 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 11.2 MB
Universal Power Supply 40A 3p
ZIP

Universal Power Supply 40A 3p

VERSION

1.0

DATE

20 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 11.2 MB
ABL8WPS24400_CAD_DOC
ZIP

ABL8WPS24400_CAD_DOC

VERSION

1.0

DATE

20 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
Ensure reliable power is supplied for your installation
ZIP

Ensure reliable power is supplied for your installation

VERSION

1.0

DATE

11 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.1 MB
Catalog Modicon Power Supply for industrial use - rail mounting
ZIP

Catalog Modicon Power Supply for industrial use - rail mounting

VERSION

5.0

DATE

10 Jul 2023

REVISION

5.0

DOWNLOAD (ZIP) 6.4 MB
ABL8RPS, ABL8RPM, and ABL8WPS Universal Power Supply Installation Instructions
ZIP

ABL8RPS, ABL8RPM, and ABL8WPS Universal Power Supply Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 409.3 KB
ABL8RED24400 Instruction Sheet
ZIP

ABL8RED24400 Instruction Sheet

VERSION

1.0

DATE

11 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 420.2 KB
ABL8BBU Instruction Sheet
ZIP

ABL8BBU Instruction Sheet

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 969.5 KB
ABL8RPS24, ABL8RPM24200, and ABL8WPS24*00 Instruction Sheet
ZIP

ABL8RPS24, ABL8RPM24200, and ABL8WPS24*00 Instruction Sheet

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 409.3 KB
ABL8RP.../WP...Regulated swich mode power supplies Phaseo Universal, Instruction Sheet (EN)
ZIP

ABL8RP.../WP...Regulated swich mode power supplies Phaseo Universal, Instruction Sheet (EN)

VERSION

6.0

DATE

18 Aug 2023

REVISION

6.0

DOWNLOAD (ZIP) 1.8 MB
ABL8WPS..., ABL8RPM... Phaseo - Universall Power Supply, Product Environmental Profile
ZIP

ABL8WPS..., ABL8RPM... Phaseo - Universall Power Supply, Product Environmental Profile

VERSION

1.0

DATE

09 Jun 2023

REVISION

1.0

DOWNLOAD (ZIP) 4.1 MB
ABL8WPS..., ABL8RPM... Phaseo - Universall Power Supply, Product End-of-Life Instructions
ZIP

ABL8WPS..., ABL8RPM... Phaseo - Universall Power Supply, Product End-of-Life Instructions

VERSION

1.0

DATE

05 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 648.6 KB

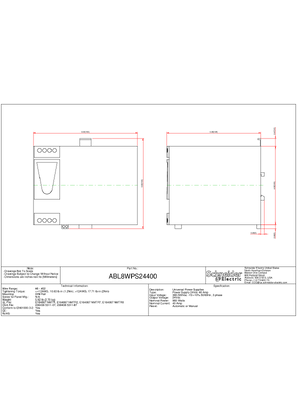

ABL8WPS24400_2D_Drwng_PDF
ZIP

ABL8WPS24400_2D_Drwng_PDF

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 21.6 KB
English
ZIP

English

VERSION

10.0

DATE

19 Oct 2023

REVISION

10.0

DOWNLOAD (ZIP) 2.9 MB
Phaseo, ABL8, Certificate, cULus, Ordinary Location
ZIP

Phaseo, ABL8, Certificate, cULus, Ordinary Location

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 189.5 KB
Phaseo KC Certificate ABL8WPS24x00
ZIP

Phaseo KC Certificate ABL8WPS24x00

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 404.8 KB

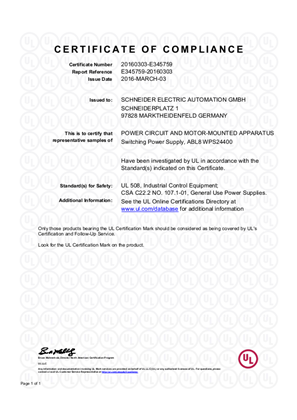

Phaseo, ABL8WPS24400, Certificate, cULus, Ordinary Location
ZIP

Phaseo, ABL8WPS24400, Certificate, cULus, Ordinary Location

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 372.5 KB

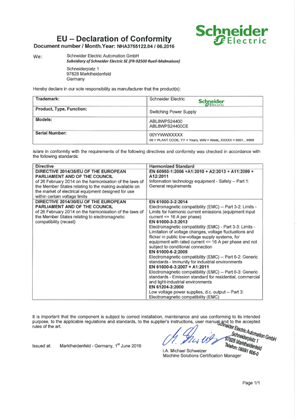

Phaseo DoC ABL8WPS24400
ZIP

Phaseo DoC ABL8WPS24400

VERSION

1.3

DATE

06 Oct 2022

REVISION

1.3

DOWNLOAD (ZIP) 432.8 KB
