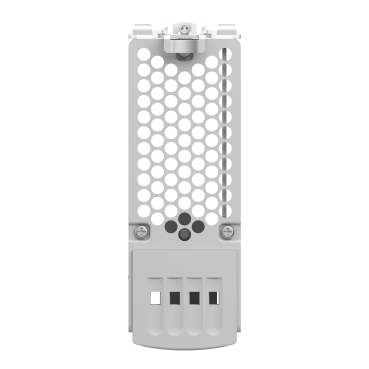

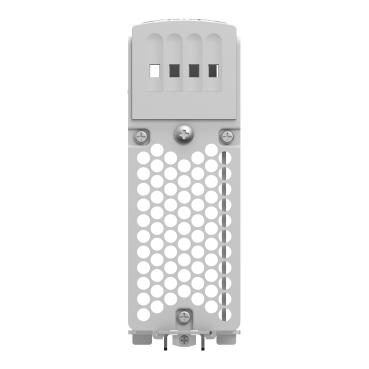

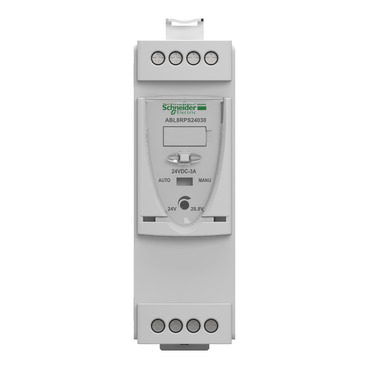

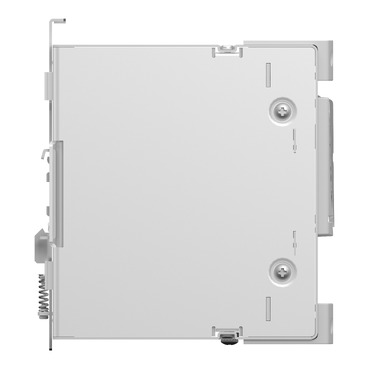

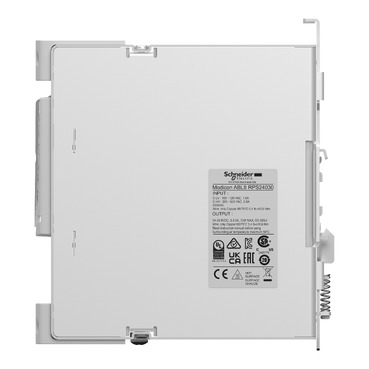

Phaseo ABL7 ABL8 Regulated Switch Power Supply

Item Number: ABL8RPS24030

1 PCE 0

Retail

N/A

RRP (Inc. GST)

Where To Buy

Datasheet

For ABL8RPS24030

Download

Product Dimensions

Width45 mm

Height125 mm

Depth125 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3389119405607	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3389119405607	-

Specifications

Design

Range of product

Modicon Power Supply

Product or component type

power supply

Warranty

18 months

Physical

Rated power in w

72 W

Inrush current

30 A

Provided equipment

power factor correction filter conforming to IEC 61000-3-2

Connections - terminals

screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection
screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection
screw type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connection
screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for output ground connection

Depth

125 mm

Height

125 mm

Width

45 mm

Net weight

0.3 kg

Marking

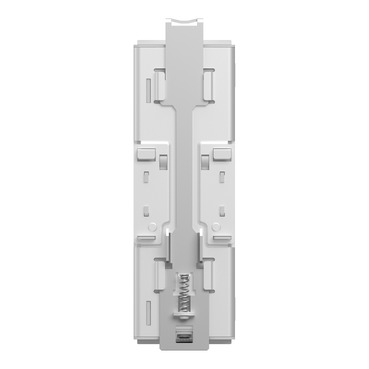

Mounting support

35 x 15 mm symmetrical DIN rail
35 x 7.5 mm symmetrical DIN rail

Supply

SELV conforming to IEC 60950-1
SELV conforming to IEC 60204-1
SELV conforming to IEC 60364-4-41

Standards

CSA C22.2 No 60950-1
UL 508
EN/IEC 62368-1

Product certifications

cCSAus
EAC
UL
RCM
KC

Environmental characteristic

EMC conforming to IEC 61000-6-1
EMC conforming to IEC 61000-6-3
EMC conforming to IEC 61000-6-2
EMC conforming to IEC 61000-6-4
EMC conforming to EN/IEC 61204-3
safety conforming to IEC 60950-1
safety conforming to EN/IEC 61204-3

Ip degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

50...60 °C with derating factor mounting position A < 2000 m
-25...50 °C without derating mounting position A < 2000 m

China rohs regulation

Environmental disclosure

ENVPEP061201EN

Circularity profile

ENVEOLI120913EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

Package 2 bare product quantity

120

Power supply type

regulated switch mode

Input voltage

100...120 V AC single phase, terminal(s): N-L1
200...500 V AC phase to phase, terminal(s): L1-L2

Output voltage

24 V DC

Power supply output current

3 A

Permissible temporary current boost

1.5 x In (for 4 s)

Anti-harmonic filter

low frequency harmonic currents

Input voltage limits

170...550 V AC
85...132 V AC

Power factor

0.51 at 240 V AC
0.59 at 120 V AC

Efficiency

87 %

Output voltage limits

24...28.8 V adjustable

Power dissipation in w

7.8 W

Output protection type

against overload, protection technology: manual or automatic reset
against overvoltage, protection technology: 30...32 V, manual reset
against short-circuits, protection technology: manual or automatic reset
against undervoltage, protection technology: tripping if U < 21.6 V
thermal, protection technology: automatic reset

Status led

1 LED (green and red) output voltage
1 LED (green, red and orange) output current

Output coupling

parallel
series

Operating position

vertical

Dielectric strength

3500 V with between input and ground
4000 V with between input and output
500 V with between output and ground

Operating altitude

2000 m

Compatibility code

ABL8R

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

6.500 cm

Package 1 width

16.500 cm

Package 1 length

14.500 cm

Package 1 weight

776.000 g

Unit type of package 2

P06

Number of units in package 2

120

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

106.120 kg

Packaging made with recycled cardboard

Scip number

974297e5-68e4-4a61-9a40-1443e8973a60

Packaging without single use plastic

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Pvc free

Yes

Pvc free

Yes

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

Colour ()

Phaseo ABL7 ABL8 Regulated Switch Power Supply

Item Number: ABL8RPS24030

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Product Brochures

Technical Data Catalogues

Installation Instruction

Environmental Disclosure

End of Life Manual

Operating Manuals

Technical Drawing

eTechPub

Certificates (MSDS)

Declaration of Conformity

Universal Power Supply 3A

ABL8RPS24030_3D-simpl

ABL8RPS24030_CAD_DOC

Universal Power Supply 3A

Universal Power Supply 3A

Ensure reliable power is supplied for your installation

Universal Power Supply 3A

ABL8RPS24030_3D-simpl

ABL8RPS24030_CAD_DOC

Universal Power Supply 3A

Universal Power Supply 3A

Ensure reliable power is supplied for your installation

Catalog Modicon Power Supply for industrial use - rail mounting

ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - May 2024

Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V

ABL8RPS, ABL8RPM, and ABL8WPS Universal Power Supply Installation Instructions

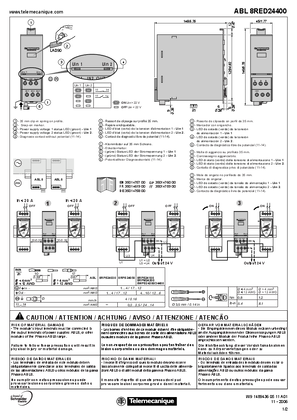

ABL8RED24400 Instruction Sheet

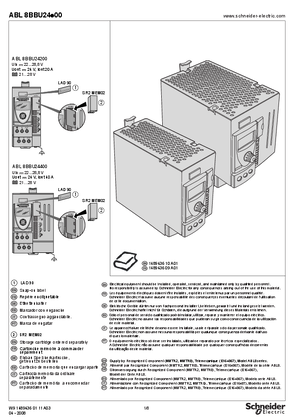

ABL8BBU Instruction Sheet

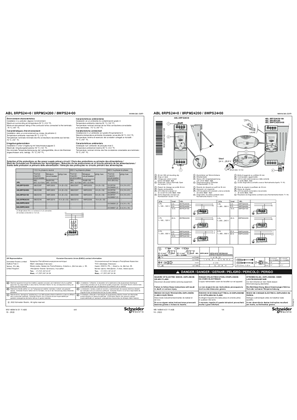

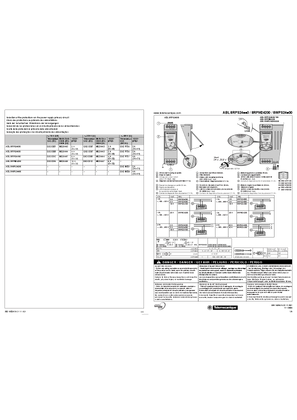

ABL8RPS24, ABL8RPM24200, and ABL8WPS24*00 Instruction Sheet

ABL8RP.../WP...Regulated swich mode power supplies Phaseo Universal, Instruction Sheet (EN)

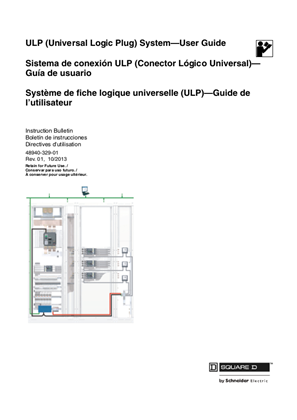

ULP (Universal Logic Plug) System User Guide

ABL8RPS... Phaseo - Universall Power Supply, Product Environmental Profile

ABL8RPS... Universal range power supply, Product End-of-Life Instructions

ULP (Universal Logic Plug) System - User Guide

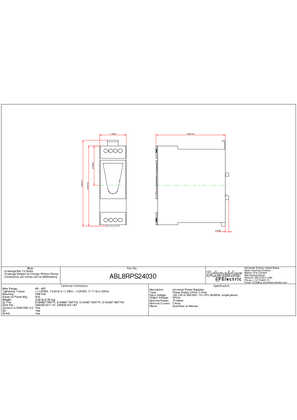

ABL8RPS24030_2D_Drwng_PDF

Contatto ausiliario SDE Electrical diagram

SD_1 Electrical diagram

English

Modicon ABLP, ABL1, Declaration of conformity, UL, Schneider Electric

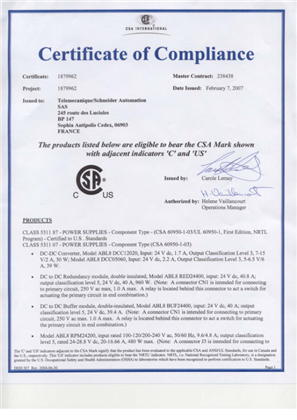

Modicon ABLP, ABL1, Certificate, CSA, Schneider Electric

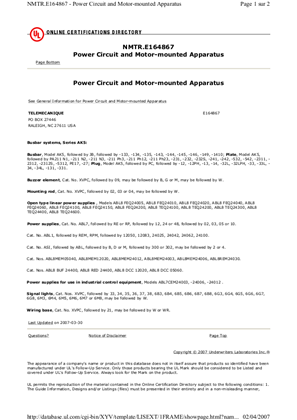

Phaseo, ABL8, Certificate, cULus, Ordinary Location

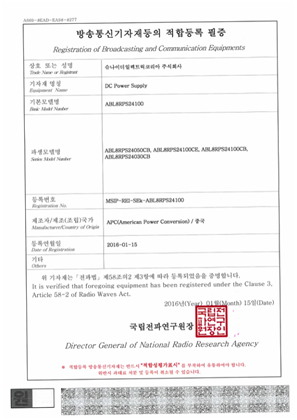

Phaseo KC Certficate ABL8RPS24xxx

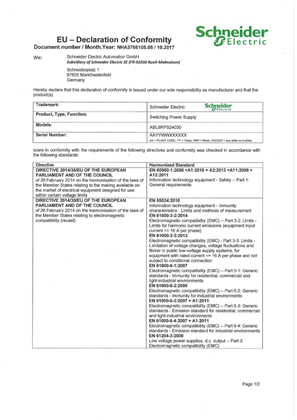

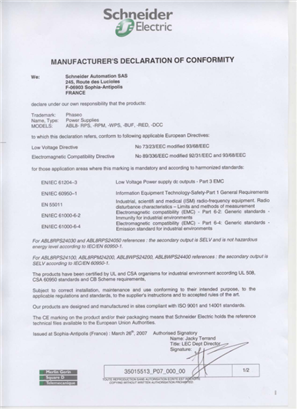

Modicon ABLM, ABLS, ABL7, ABL8, Declaration of conformity, EU/CE, Schneider Electric
