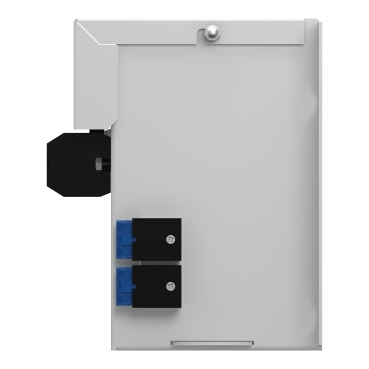

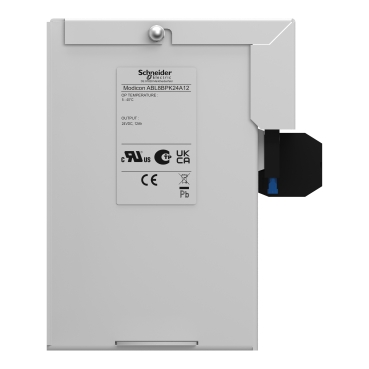

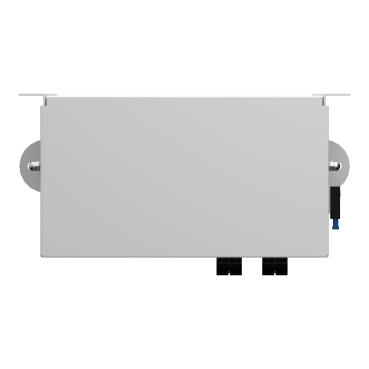

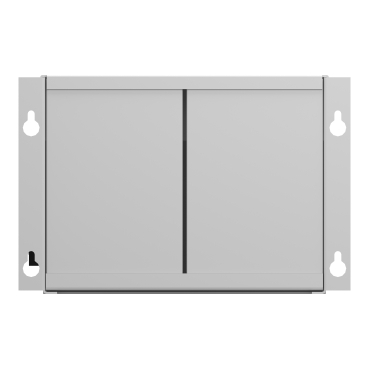

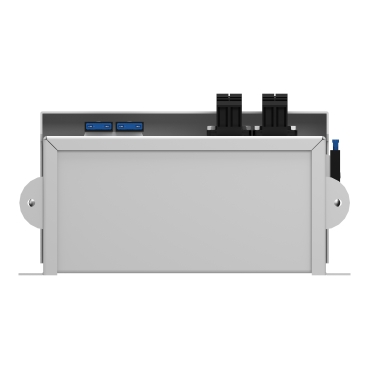

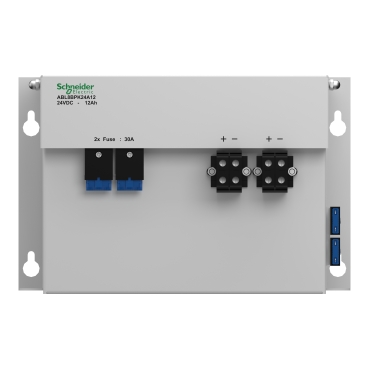

Phaseo ABL7 ABL8, Battery Pack, 12Ah

Home ProductsIndustrialPhaseo ABL7 ABL8Battery Pack

Phaseo ABL7 ABL8, Battery Pack, 12Ah

Item Number: ABL8BPK24A12

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Phaseo

Product or component type

battery module

Warranty

18 months

Physical

Connections - terminals

for input connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² AWG 20...AWG 8|for output connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² AWG 20...AWG 8

Fixing mode

by 2 screws diameter: 5 mm on horizontal panel, operating position: horizontal|by 4 screws diameter: 5 mm on vertical panel, operating position: vertical

Marking

CE

Net weight

12 kg

Product certifications

CTP|UL

Ambient air temperature for operation

0...40 °C

Ambient air temperature for storage

-20...50 °C

Ip degree of protection

IP10 conforming to IEC 60529

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Not applicable, out of EU RoHS legal scope

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1410021EN

Circularity profile

ENVEOLI1410021EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Input voltage

24 V DC

Output voltage

24 V DC

Maximum output current

75 A

Battery capacity

12 Ah

Holding time

< 20 h at 0.6 A, 20 °C|> 5 min at 31.3 A, 20 °C

Input voltage limits

21...29 V

Charging time

72 h

Load current

1.2 A

Holding current

15 A|3 A|2 A|30 A|8 A|6 A|4 A|40 A|7 A|25 A|10 A|20 A|5 A|35 A

Output protection type

against overload and short-circuits, protection technology: 2 x 30 A automotive type fuses

Self-discharge rate

15 %, 6 months|9 %, 3 months|3 %, 1 month

Output coupling

parallel

Operating altitude

2000 m

Service life in hours

11000 h at 40-40 °C|15000 h at 35-35 °C|22000 h at 30-30 °C|31000 h at 25-25 °C|44000 h at 20-20 °C|5000 h at 50-50 °C|7300 h at 45-45 °C

Holding time

9 mn|15 mn|0.5 s|30 mn|1 h|2 h|3 mn|20 mn|6 mn|1 s|3 h|5 h|0.2 s|50 mn|8 mn|10 s|2 s|10 mn|40 mn|5 s|7 mn|30 s|5 mn|2 mn|4 mn|1 mn

Holding solution

use of battery modules

Compatibility code

ABL8B

Overvoltage category

class 3 conforming to VDE 0106-1

Vibration resistance

2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2|3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

19.500 cm

Package 1 width

20.000 cm

Package 1 length

33.000 cm

Package 1 weight

10.856 kg

Unit type of package 2

S06

Number of units in package 2

10

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

120.270 kg

Pvc free

Yes
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Environmental Disclosure

  • End of Life Manual

  • Operating Manuals

  • Technical Drawing

  • Declaration of Conformity

  • Certificates (MSDS)

  • eTechPub

ABL8BPK24A12_3D-simpl
ZIP

ABL8BPK24A12_3D-simpl

VERSION

1.0

DATE

18 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.5 MB
ABL8BPK24A12_CAD_DOC
ZIP

ABL8BPK24A12_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 204.5 KB
Ensure reliable power is supplied for your installation
ZIP

Ensure reliable power is supplied for your installation

VERSION

1.0

DATE

11 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.1 MB
Catalog Modicon Power Supply for industrial use - rail mounting
ZIP

Catalog Modicon Power Supply for industrial use - rail mounting

VERSION

5.0

DATE

10 Jul 2023

REVISION

5.0

DOWNLOAD (ZIP) 6.4 MB

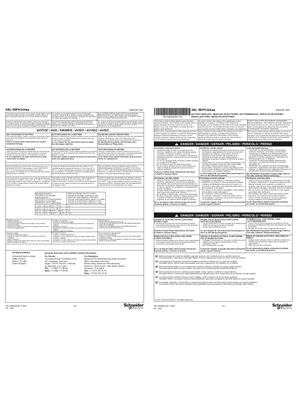

ABL 8BPK24A.. Battery module Phaseo Universal, Instruction Sheet (EN)
ZIP

ABL 8BPK24A.. Battery module Phaseo Universal, Instruction Sheet (EN)

VERSION

6.0

DATE

18 Aug 2023

REVISION

6.0

DOWNLOAD (ZIP) 1.9 MB

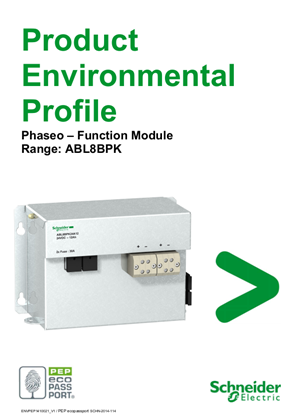

ABL8BPK... Phaseo – Function Module, Product Environmental Profile
ZIP

ABL8BPK... Phaseo – Function Module, Product Environmental Profile

VERSION

1.0

DATE

09 Jun 2023

REVISION

1.0

DOWNLOAD (ZIP) 4 MB

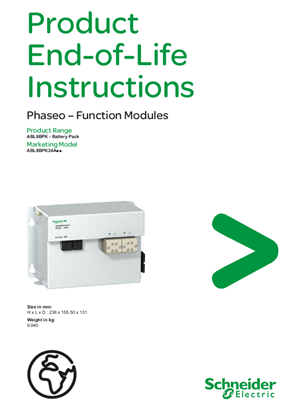

ABL8BPK... Phaseo – Function Module, Product End-of-Life Instructions
ZIP

ABL8BPK... Phaseo – Function Module, Product End-of-Life Instructions

VERSION

1.0

DATE

05 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 561.7 KB
ABL8... Phaseo power outage solution, User guide
ZIP

ABL8... Phaseo power outage solution, User guide

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.8 MB

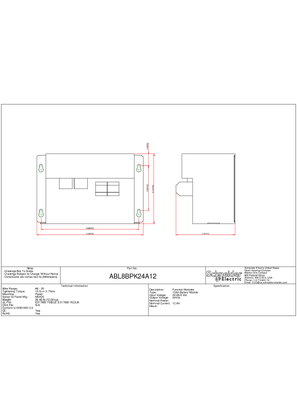

ABL8BPK24A12_2D_Drwng_PDF
ZIP

ABL8BPK24A12_2D_Drwng_PDF

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 12.1 KB
Phaseo DoC ABL8BBU24xxx
ZIP

Phaseo DoC ABL8BBU24xxx

VERSION

1.3

DATE

06 Oct 2022

REVISION

1.3

DOWNLOAD (ZIP) 943 KB

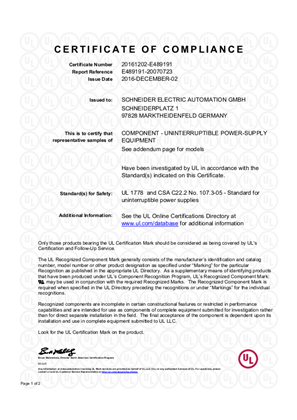

Phaseo, ABL8BPK, Certificate, cULus, Ordinary Location
