Modicon M241 Network Switch Module

Item Number: TM4PDPS1

1 PCE 0

Retail

N/A

RRP (Inc. GST)

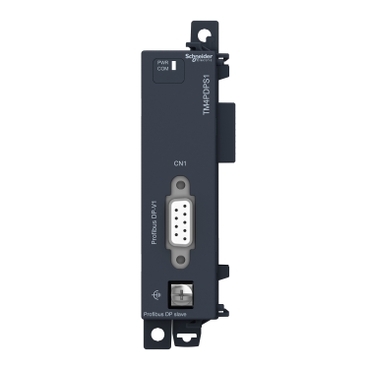

This communication module is proposed as an option Modicon M241/251 controllers. This module provides slave Profibus DP. It is equipped with a 9-way SUB-D connector.

Where To Buy

Datasheet

For TM4PDPS1

Download

Product Dimensions

Width25 mm

Height90 mm

Depth90 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3606480649066	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3606480649066	-

Specifications

Design

Product or component type

Profibus DP communication module

Product compatibility

Modicon M241 logic controller
Modicon M251 logic controller

Physical

Range compatibility

Modicon M251
Modicon M241

Integrated connection type

Profibus DP: female SUB-D 9 connector

Communication port protocol

Profibus DP V0
Profibus DP V1

Local signalling

1 LED (green/yellow) for power supply
1 LED (green/red) for communication

Marking

Mounting support

top hat type TH35-15 rail conforming to IEC 60715
top hat type TH35-7.5 rail conforming to IEC 60715
plate or panel with fixing kit

Width

25 mm

Height

90 mm

Depth

90 mm

Net weight

0.1 kg

Standards

IEC 61131-2
UL 508
EIA-485

Product certifications

C-Tick
cULus

Ambient air temperature for operation

-10...55 °C horizontal installation
-10...50 °C vertical installation

Ambient air temperature for storage

-25...70 °C

Relative humidity

10...95 %, without condensation (in operation)
10...95 %, without condensation (in storage)

Ip degree of protection

IP20 with protective cover in place

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1403009EN

Circularity profile

ENVEOLI1403009EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Package 2 bare product quantity

Package 1 bare product quantity

Current consumption

290 mA at 5 V DC for communication bus

Power dissipation in w

1.5 W

Transmission rate

1.5 Mbit/s for bus length of 200-200 m
500 kbit/s for bus length of 400-400 m
187.5 kbit/s for bus length of 1000-1000 m
9.6...93.75 kbit/s for bus length of 1200-1200 m
3...12 Mbit/s for bus length of 100-100 m

Insulation

between bus and internal logic at 1000 V DC

Electrical connection

screw connector terminal for connecting the functional ground
SUB-D 9 1 female connector for connecting Profibus

Surge withstand

1 kV power lines (DC) common mode conforming to IEC 61000-4-5
2 kV power lines (AC) common mode conforming to IEC 61000-4-5
2 kV relay output common mode conforming to IEC 61000-4-5
1 kV I/O common mode conforming to IEC 61000-4-5
1 kV shielded cable common mode conforming to IEC 61000-4-5
0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5
1 kV power lines (AC) differential mode conforming to IEC 61000-4-5
1 kV relay output differential mode conforming to IEC 61000-4-5
0.5 kV I/O differential mode conforming to IEC 61000-4-5

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2
4 kV on contact conforming to IEC 61000-4-2
8 kV in air conforming to Marine specification (LR, ABS, DNV, GL)
6 kV on contact conforming to Marine specification (LR, ABS, DNV, GL)

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3
1 V/m 2...2.7 GHz conforming to IEC 61000-4-3

Resistance to fast transients

2 kV (power lines) conforming to IEC 61000-4-4
2 kV (relay output) conforming to IEC 61000-4-4
1.5 kV (I/O) conforming to IEC 61000-4-4
1 kV (Ethernet line) conforming to IEC 61000-4-4
1 kV (serial link) conforming to IEC 61000-4-4

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6
3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL)
10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15-0.5 MHz conforming to IEC 55011
conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5-300 MHz conforming to IEC 55011
conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011
conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011
radiated emissions - test level: 40 dBμV/m QP class A at 30-230 MHz conforming to IEC 55011
radiated emissions - test level: 60...54 dBμV/m QP at 30-100 MHz conforming to Marine specification (LR, ABS, DNV, GL)
radiated emissions - test level: 24 dBμV/m QP at 156-165 MHz conforming to Marine specification (LR, ABS, DNV, GL)
conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011
radiated emissions - test level: 47 dBμV/m QP class A at 230-1000 MHz conforming to IEC 55011
radiated emissions - test level: 80...50 dμV/m QP at 150-30000 kHz conforming to Marine specification (LR, ABS, DNV, GL)
radiated emissions - test level: 54 dBμV/m QP at 100-2000 MHz conforming to Marine specification (LR, ABS, DNV, GL)

Pollution degree

Operating altitude

0...2000 m

Storage altitude

0...3000 m

Vibration resistance

1 mm at 5-13.2 Hz on symmetrical rail
3 gn at 8.7-150 Hz on symmetrical rail
1 mm at 5-13.2 Hz on panel mounting
0.7 gn at 13.2-100 Hz on panel mounting

Shock resistance

15 gn for 11 ms

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

17.0 cm

Package 1 width

11.0 cm

Package 1 length

5.4 cm

Package 1 weight

210.0 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

7.15 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Pvc free

Yes

Pvc free

Yes

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

95.9709494609658

Global warming ; total life cycle

96 kg CO2 eq.

Minimum percentage of recycled plastic content
