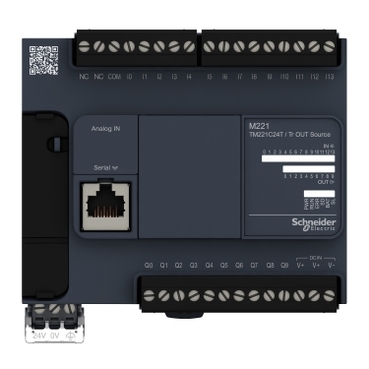

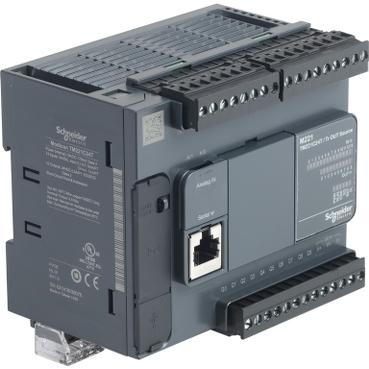

Modicon M221, Logic controller, 24 IO transistor PNP

Item Number: TM221C24T

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width110 mm

Height90 mm

Depth70 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480648724	-

Specifications

Design

Range of product

Modicon M221

Product or component type

logic controller

Sustainable offer status

Green Premium product

Physical

Inrush current

35 A

Mechanical durability

20000000 cycles for transistor output

Protection type

overload and short-circuit protection at 1 A

Backup time

1 year at 25 °C (by interruption of power supply)

Function available

PWM|PLS|frequency generator

Control signal type

A/B|single phase|pulse/direction

Integrated connection type

USB port with mini B USB 2.0 connector|non isolated serial link serial 1 with RJ45 connector and RS485 interface |non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface

Supply

(serial)serial link supply: 5 V, <200 mA

Communication port protocol

USB port: USB - SoMachine-Network|non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network

Local signalling

Marking

Mounting support

top hat type TH35-15 rail conforming to IEC 60715|top hat type TH35-7.5 rail conforming to IEC 60715| plate or panel with fixing kit

Height

90 mm

Depth

70 mm

Width

110 mm

Net weight

0.395 kg

Standards

IEC 61131-2|UL 508|CAN/CSA C22.2 No. 213|IACS E10|ANSI/ISA 12-12-01

Product certifications

DNV-GL|LR|cULus|RCM|EAC|ABS|CE|UKCA|cULus HazLoc

Environmental characteristic

ordinary and hazardous location

Ambient air temperature for operation

-10...55 °C (horizontal installation)|-10...35 °C (vertical installation)

Ambient air temperature for storage

-25...70 °C

Relative humidity

10...95 %, without condensation (in operation)|10...95 %, without condensation (in storage)

Ip degree of protection

IP20 with protective cover in place

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1403012EN

Circularity profile

ENVEOLI1403012EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

240

[us] rated supply voltage

24 V DC

Discrete input number

14 , discrete input 4 fast input conforming to IEC 61131-2 Type 1

Analogue input number

2 at 0...10 V

Discrete output type

transistor

Discrete output number

10 transistor 2 fast output

Discrete output voltage

24 V DC

Discrete output current

0.5 A

Discrete i/o number

Maximum number of i/o expansion module

7 (local I/O-Architecture)|14 (remote I/O-Architecture)

Supply voltage limits

20.4...28.8 V

Maximum power consumption in w

13 W at 24 V (with max number of I/O expansion module)|4.1 W at 24 V (without I/O expansion module)

Power supply output current

0.52...0.52 A 5 V for expansion bus|0.2...0.2 A 24 V for expansion bus

Discrete input logic

sink or source (positive/negative)

Discrete input voltage

24 V

Discrete input voltage type

Analogue input resolution

10 bits

Lsb value

10 mV

Conversion time

1 ms per channel + 1 controller cycle time for analogue input analog input

Permitted overload on inputs

+/- 30 V DC for 5 min (maximum) for analog input|+/- 13 V DC (permanent) for analog input

Voltage state 1 guaranteed

>= 15 V for input

Voltage state 0 guaranteed

<= 5 V for input

Discrete input current

7 mA for discrete input|5 mA for fast input

Input impedance

3.4 kOhm for discrete input|100 kOhm for analog input|4.9 kOhm for fast input

Response time

35 µs turn-off, I2...I5 terminal(s) for input|5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input|35 µs turn-on, other terminals terminal(s) for input|5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input|100 µs turn-off, other terminals terminal(s) for input|5 µs turn-on, turn-off, Q0...Q1 terminal(s) for output|50 µs turn-on, turn-off, Q2...Q3 terminal(s) for output|300 µs turn-on, turn-off, other terminals terminal(s) for output

Configurable filtering time

0 ms for input|3 ms for input|12 ms for input

Discrete output logic

positive logic (source)

Maximum current per output common

5 A

Output frequency

100 kHz for fast output (PWM/PLS mode) at Q0...Q1|5 kHz for output at Q2...Q3|0.1 kHz for output at Q4...Q9

Absolute accuracy error

+/- 1 % of full scale for analog input

Maximum leakage current

0.1 mA for transistor output

Maximum voltage drop

<1 V

Maximum tungsten load

<12 W for output and fast output

Reset time

1 s automatic reset

Memory capacity

256 kB for user application and data RAM with 10000 instructions|256 kB for internal variables RAM

Data backed up

256 kB built-in flash memory for backup of application and data

Data storage equipment

2 GB SD card (optional)

Battery type

BR2032 or CR2032X lithium non-rechargeable

Execution time for 1 kinstruction

0.3 ms for event and periodic task

Execution time per instruction

0.2 µs Boolean

Exct time for event task

60 µs response time

Maximum size of object areas

512 %KW constant words|255 %C counters|8000 %MW memory words|255 %TM timers|512 %M memory bits

Realtime clock

with

Clock drift

<= 30 s/month at 25-25 °C

Regulation loop

adjustable PID regulator up to 14 simultaneous loops

Positioning functions

Position PTO 2 axe(s)pulse/direction mode (100 kHz)|Position PTO 1 axe(s)CW/CCW mode (100 kHz)

Counting input number

4 fast input (HSC mode) at 100 kHz 32 bits

Transmission rate

1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15-15 m for RS485|1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3-3 m for RS232|480 Mbit/s for USB

Electrical connection

removable screw terminal block for inputs| removable screw terminal block for outputs| terminal block, 3 terminal(s) for connecting the 24 V DC power supply| connector, 4 terminal(s) for analogue inputs|mini B USB 2.0 connector for a programming terminal

Maximum cable distance between devices

shielded cable: <10 m for fast input|unshielded cable: <30 m for output|unshielded cable: <30 m for digital input|unshielded cable: <1 m for analog input|shielded cable: <3 m for fast output

Insulation

between input and internal logic at 500 V AC|between fast input and internal logic at 500 V AC|non-insulated between inputs|between output and internal logic at 500 V AC|non-insulated between analogue input and internal logic|non-insulated between analogue inputs

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2|4 kV on contact conforming to IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3|3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3|1 V/m 2...2.7 GHz conforming to IEC 61000-4-3

Resistance to magnetic fields

30 A/m 50/60 Hz conforming to IEC 61000-4-8

Resistance to fast transients

2 kV (power lines) conforming to IEC 61000-4-4|2 kV (relay output) conforming to IEC 61000-4-4|1 kV (I/O) conforming to IEC 61000-4-4|1 kV (Ethernet line) conforming to IEC 61000-4-4|1 kV (serial link) conforming to IEC 61000-4-4

Surge withstand

2 kV power lines (AC) common mode conforming to IEC 61000-4-5|2 kV relay output common mode conforming to IEC 61000-4-5|1 kV I/O common mode conforming to IEC 61000-4-5|1 kV shielded cable common mode conforming to IEC 61000-4-5|0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5|1 kV power lines (AC) differential mode conforming to IEC 61000-4-5|1 kV relay output differential mode conforming to IEC 61000-4-5|0.5 kV power lines (DC) common mode conforming to IEC 61000-4-5

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6|3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL)|10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15-0.5 MHz conforming to IEC 55011|conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5-300 MHz conforming to IEC 55011|conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011|conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011|radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011|conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011|radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 200-1000 MHz conforming to IEC 55011

Immunity to microbreaks

10 ms

Pollution degree

<= 2

Operating altitude

0...2000 m

Storage altitude

0...3000 m

Vibration resistance

3.5 mm at 5-8.4 Hz on symmetrical rail|3.5 mm at 5-8.4 Hz on panel mounting|1 gn at 8.4-150 Hz on symmetrical rail|1 gn at 8.4-150 Hz on panel mounting

Shock resistance

147 m/s² for 11 ms

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

11.021 cm

Package 1 width

14.142 cm

Package 1 length

15.497 cm

Package 1 weight

601.0 g

Unit type of package 2

CAR

Number of units in package 2

Package 2 height

29.2 cm

Package 2 width

39.6 cm

Package 2 length

56.4 cm

Package 2 weight

13.16 kg

Unit type of package 3

P12

Number of units in package 3

240

Package 3 height

120.0 cm

Package 3 width

105.0 cm

Package 3 length

80.0 cm

Package 3 weight

164.8 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Pvc free

Yes

Show all specifications

Documents & downloads

hide show

Colour ()

Modicon M221, Logic controller, 24 IO transistor PNP

Item Number: TM221C24T

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

Environmental Disclosure

End of Life Manual

Operating Manuals

System User Guide

Certificates (MSDS)

Declaration of Conformity

eTechPub

CONTROLLER M221-24IO Compact - 3D CAD

Discover catalog for Modicon M221 Programmable logic controller for hardwired architectures

Discover Catalog EcoStruxure Machine Expert-Basic Programming software for Modicon M221 logic controller

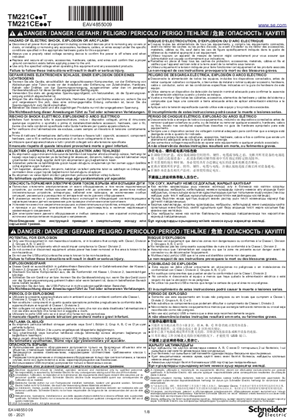

TM221C DC Logic Controller, Instruction sheet (EN)
