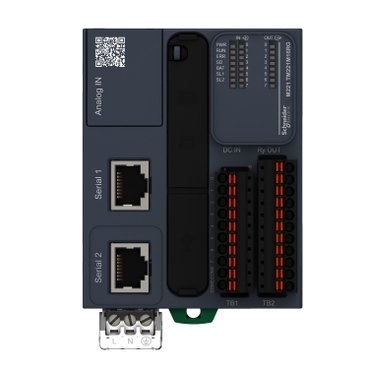

Modicon M221 Logic controller 16 IO relay spring

Home ProductsIndustrialModiconLogic controller

Modicon M221 Logic controller

Item Number: TM221M16RG

Retail
N/A
RRP (Inc. GST)

Where To Buy

Datasheet

PDF datasheet

For TM221M16RG

Download

Product Dimensions

Width icon

Width70 mm

Height icon

Height90 mm

Depth icon

Depth70 mm

See full specifications

Barcode

Qty UoM EAN Colour
1 3606480611261 -

Specifications

Design

Range of product

Modicon M221

Product or component type

logic controller

Physical

Inrush current

35 A

Electrical durability

  • 100000 cycles AC-12, 120 V, 240 VA, resistive
  • 100000 cycles AC-12, 240 V, 480 VA, resistive
  • 300000 cycles AC-12, 120 V, 80 VA, resistive
  • 300000 cycles AC-12, 240 V, 160 VA, resistive
  • 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive
  • 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive
  • 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive
  • 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive
  • 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive
  • 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive
  • 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive
  • 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive
  • 100000 cycles DC-12, 24 V, 48 W, resistive
  • 300000 cycles DC-12, 24 V, 16 W, resistive
  • 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms)
  • 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)

Mechanical durability

20000000 cycles for relay output

Protection type

without protection at 5 A

Backup time

1 year at 25 °C (by interruption of power supply)

Control signal type

  • A/B
  • pulse/direction
  • single phase

Integrated connection type

  • USB port with mini B USB 2.0 connector
  • non isolated serial link serial 1 with RJ45 connector and RS485 interface
  • non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface

Supply

(serial 1)serial link supply: 5 V, <200 mA

Communication port protocol

  • USB port: USB - SoMachine-Network
  • non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network

Local signalling

  • 1 LED (green) for PWR
  • 1 LED (green) for RUN
  • 1 LED (red) for module error (ERR)
  • 1 LED (green) for SD card access (SD)
  • 1 LED (red) for BAT
  • 1 LED (green) for SL1
  • 1 LED (green) for SL2
  • 1 LED per channel (green) for I/O state

Marking

CE

Mounting support

  • top hat type TH35-15 rail conforming to IEC 60715
  • top hat type TH35-7.5 rail conforming to IEC 60715
  • plate or panel with fixing kit

Height

90 mm

Depth

70 mm

Width

70 mm

Net weight

0.264 kg

Standards

  • IEC 61131-2
  • UL 508
  • CAN/CSA C22.2 No. 213
  • IACS E10
  • ANSI/ISA 12-12-01

Product certifications

  • RCM
  • LR
  • EAC
  • cULus
  • DNV-GL
  • ABS
  • CSA
  • CE
  • UKCA
  • cULus HazLoc

Environmental characteristic

ordinary and hazardous location

Ambient air temperature for operation

  • -10...55 °C (horizontal installation)
  • -10...35 °C (vertical installation)

Ambient air temperature for storage

-25...70 °C

Relative humidity

  • 10...95 %, without condensation (in operation)
  • 10...95 %, without condensation (in storage)

Ip degree of protection

IP20 with protective cover in place

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China rohs regulation

X

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1403012EN

Circularity profile

ENVEOLI1403012EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
