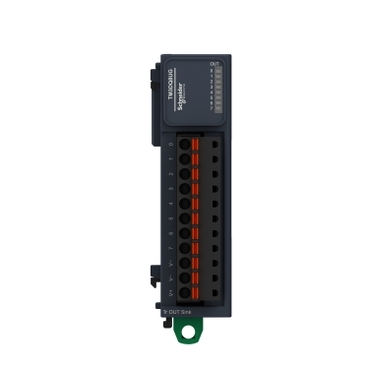

Modicon TM3, Discrete output module, 8 outputs transistor NPN (spring)

Item Number: TM3DQ8UG

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width27.4 mm

Height90 mm

Depth84.6 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480611575	-

Specifications

Design

Range of product

Modicon TM3

Product or component type

discrete output module

Sustainable offer status

Green Premium product

Physical

Range compatibility

Modicon M241|Modicon M251|Modicon M221|Modicon M262

Local signalling

1 LED per channel (green) for output status

Marking

Mounting support

top hat type TH35-15 rail conforming to IEC 60715|top hat type TH35-7.5 rail conforming to IEC 60715| plate or panel with fixing kit

Height

90 mm

Depth

84.6 mm

Width

27.4 mm

Net weight

0.76 kg

Standards

EN/IEC 61131-2

Product certifications

CE|cULus|UKCA|RCM|EAC|cULus HazLoc

Ambient air temperature for operation

-10...35 °C vertical installation|-10...55 °C horizontal installation

Ambient air temperature for storage

-25...70 °C

Relative humidity

10...95 %, without condensation (in operation)|10...95 %, without condensation (in storage)

Ip degree of protection

IP20 with protective cover in place

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1402009EN

Circularity profile

ENVEOLI1402009EN

California proposition 65

"WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

Others

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

144

Discrete output type

transistor

Discrete output number

Discrete output logic

negative logic (sink)

Discrete output voltage

24 V DC for transistor output

Discrete output current

50 mA for transistor output

Discrete i/o number

Current consumption

5 mA at 5 V DC via bus connector (at state off)|0 mA at 24 V DC via bus connector (at state off)|20 mA at 24 V DC via bus connector (at state on)|10 mA at 5 V DC via bus connector (at state on)

Response time

450 µs (turn-on)|450 µs (turn-off)

Maximum leakage current

0.1 mA for transistor output

Maximum voltage drop

<0.4 V

Electrical connection

11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for outputs

Maximum cable distance between devices

unshielded cable: <30 m for transistor output

Insulation

between output and internal logic at 500 V AC|non-insulated between outputs

Resistance to electrostatic discharge

8 kV in air conforming to EN/IEC 61000-4-2|4 kV on contact conforming to EN/IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3|3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3|1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3

Resistance to magnetic fields

30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8

Resistance to fast transients

1 kV for I/O conforming to EN/IEC 61000-4-4

Surge withstand

1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6|3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to EN/IEC 55011|radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to EN/IEC 55011

Pollution degree

Operating altitude

0...2000 m

Storage altitude

0...3000 m

Vibration resistance

3.5 mm at 5-8.4 Hz on DIN rail|3 gn at 8.4-150 Hz on DIN rail|3.5 mm at 5-8.4 Hz on panel|3 gn at 8.4-150 Hz on panel

Shock resistance

15 gn for 11 ms

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

7.5 cm

Package 1 width

10.5 cm

Package 1 length

12.5 cm

Package 1 weight

230.0 g

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

2.3 kg

Unit type of package 3

P06

Number of units in package 3

144

Package 3 height

75 cm

Package 3 width

40 cm

Package 3 length

80 cm

Package 3 weight

25.49 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Pvc free

Yes

Show all specifications
