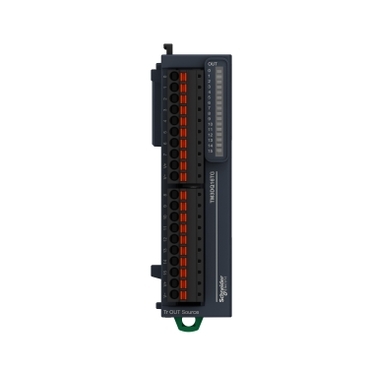

Modicon TM3 Discrete output module

Item Number: TM3DQ16TG

1 PCE 0

Retail

N/A

RRP (Inc. GST)

Where To Buy

Datasheet

For TM3DQ16TG

Download

Product Dimensions

Width27.4 mm

Height90 mm

Depth84.6 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3606480611490	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3606480611490	-

Specifications

Design

Range of product

Modicon TM3

Product or component type

discrete output module

Physical

Range compatibility

Modicon M241
Modicon M251
Modicon M221
Modicon M262

Local signalling

1 LED per channel (green) for output status

Marking

Mounting support

top hat type TH35-15 rail conforming to IEC 60715
top hat type TH35-7.5 rail conforming to IEC 60715
plate or panel with fixing kit

Height

90 mm

Depth

84.6 mm

Width

27.4 mm

Net weight

0.11 kg

Standards

IEC 61131-2

Product certifications

cULus
CE
UKCA
RCM
EAC
cULus HazLoc

Ambient air temperature for operation

-10...35 °C vertical installation
-10...55 °C horizontal installation

Ambient air temperature for storage

-25...70 °C

Relative humidity

10...95 %, without condensation (in operation)
10...95 %, without condensation (in storage)

Ip degree of protection

IP20 with protective cover in place

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1402009EN

Circularity profile

ENVEOLI1402009EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 3 bare product quantity

504

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Package 2 bare product quantity

Package 1 bare product quantity

Discrete output type

transistor

Discrete output number

Discrete output logic

positive logic (source)

Discrete output voltage

24 V DC for transistor output

Discrete output current

500 mA for transistor output

Discrete i/o number

Current consumption

5 mA at 5 V DC via bus connector (at state off)
0 mA at 24 V DC via bus connector (at state off)
15 mA at 5 V DC via bus connector (at state on)
20 mA at 24 V DC via bus connector (at state on)

Response time

450 µs (turn-on)
450 µs (turn-off)

Maximum leakage current

0.1 mA for transistor output

Maximum voltage drop

<0.4 V

Maximum tungsten load

<3 W for transistor output

Electrical connection

10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for outputs

Maximum cable distance between devices

unshielded cable: <30 m for transistor output

Insulation

between output and internal logic at 500 V AC
non-insulated between outputs

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2
4 kV on contact conforming to IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3
1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3

Resistance to magnetic fields

30 A/m 50/60 Hz conforming to IEC 61000-4-8

Resistance to fast transients

1 kV for I/O conforming to IEC 61000-4-4

Surge withstand

1 kV I/O common mode conforming to IEC 61000-4-5 DC

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6
3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011

Pollution degree

Operating altitude

0...2000 m

Storage altitude

0...3000 m

Vibration resistance

3.5 mm at 5-8.4 Hz on DIN rail
3 gn at 8.4-150 Hz on DIN rail
3.5 mm at 5-8.4 Hz on panel
3 gn at 8.4-150 Hz on panel

Shock resistance

15 gn for 11 ms

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

7.5 cm

Package 1 width

12.5 cm

Package 1 length

10.5 cm

Package 1 weight

245.0 g

Unit type of package 2

S04

Number of units in package 2

Package 2 height

30 cm

Package 2 width

40 cm

Package 2 length

60 cm

Package 2 weight

11.273 kg

Unit type of package 3

P12

Number of units in package 3

504

Package 3 height

105 cm

Package 3 width

120 cm

Package 3 length

80 cm

Package 3 weight

124 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Pvc free

Yes

Pvc free

Yes

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

34.13596253675878

Global warming ; total life cycle

34 kg CO2 eq.

Minimum percentage of recycled plastic content

Show all specifications
